ACP VC1 EU – Audio Control Panel with Volume and Mute
Key Features
- Fully configurable button panel integrates easily with an Extron DMP Plus Series audio DSP processor
- Rotary control knob provides smooth, precise adjustment of volume levels
- One backlit, soft-touch button that can be customized using Extron’s Custom Button Builder
- Two ACP ports allow for quick system expansion and upgrades
- Use a single button panel or combine up to eight button panels to accommodate a broad variety of system designs
- Simple yet elegant design blends well in any architectural environment
| ACP Control Interface | |
|---|---|

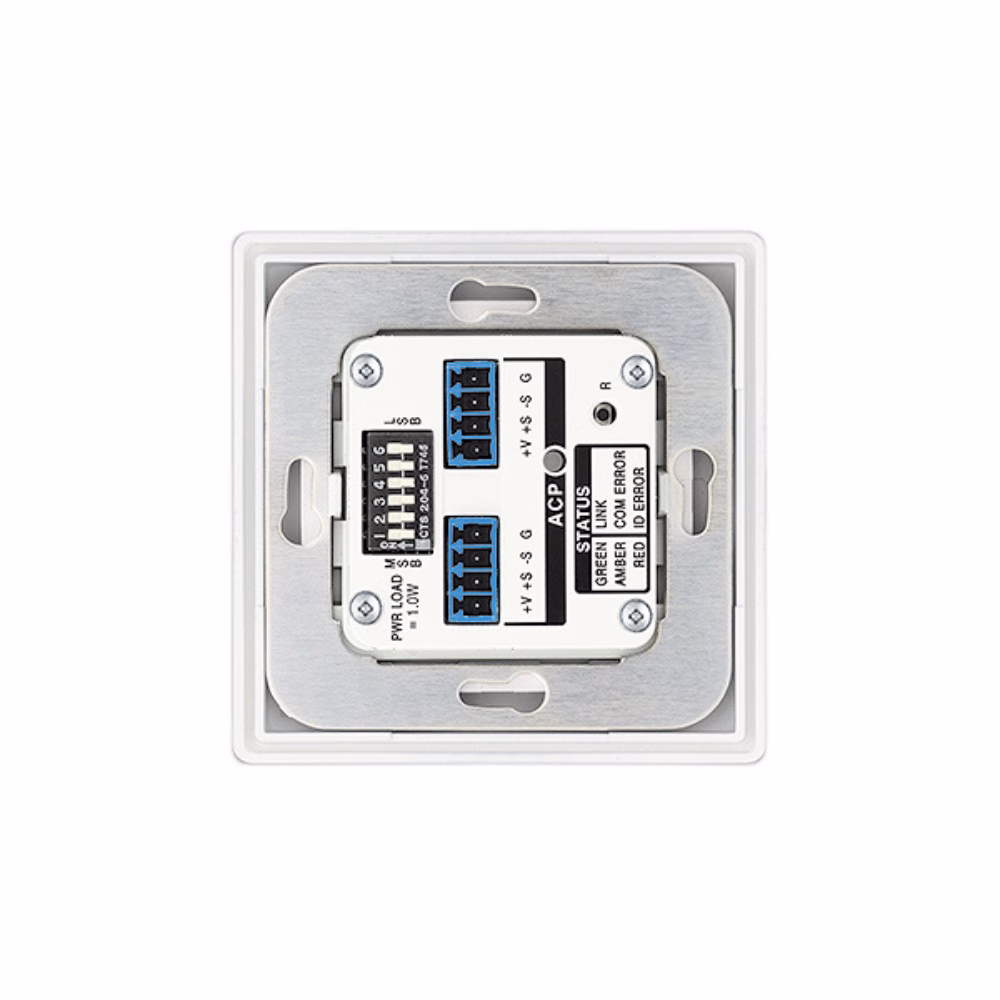

| ACP control ports | (2) 3.5 mm captive screw connectors, 4 pole |
| ACP pin configuration | +V = +12 VDC; +S = + signal; -S = – signal; G = ground |
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable |
| Software Configuration | |
| Software | Extron DSP Configurator |
| General | |
| Power | Power is supplied by an ACP enabled processor or optional power supply |
| ACP power consumption | 1.0 watts, 12 VDC (device only) |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | 2.5 BTU/hr |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | Yes, in a standard 1-gang EU electrical junction box |
| Enclosure type | Plastic faceplate, metal mounting plate |
| Enclosure dimensions | |
| Plastic faceplate | 3.2″ H x 3.2″ W x 0.4″ D (8.1 cm x 8.1 cm x 1 cm) |
| Metal mounting plate | 2.8″ H x 2.8″ W x 0.9″ D (7.1 cm x 7.1 cm x 2.3 cm) (Fits the opening in a 1-gang EU wallplate) |
| Device | 1.8″ H x 1.8″ W x 0.9″ D (4.6 cm x 4.6 cm x 2.3 cm) (Depth excludes faceplate and buttons) |
| Device and captive screw | 1.8″ H x 1.8″ W x 1.3″ D (4.6 cm x 4.6 cm x 3.2 cm) |
| Product weight | 0.2 lbs (0.1 kg) |
| Regulatory compliance | CE, c-UL, C-tick, FCC Class A, ICES, RoHS, UL, VCCI Class A, WEEE, Section 508 of the Rehabilitation Act (29 U.S.C. 964d) |
| Product warranty | 3 years parts and labor |
The ACP VC1 EU is an audio control panel that interfaces with DMP Plus Series audio processors and provides volume and mute control within a room. This easy-to-use control panel features a rotary volume control knob that provides smooth, precise adjustment of volume levels and an illuminated soft touch button for muting. Five bright LEDs provide at-a-glance level indication of system volume levels. Two ACP ports are available for easy system expansion. It can be configured easily using Extron DSP Configurator Software. For applications worldwide, the ACP VC1 EU is compatible with Flex55 modules, mounting kits, and enclosures, as well as EU junction boxes.
ACP Series audio control panels are ideal for use in applications that require a simple and cost‑effective means to control basic audio functions. ACP panels connect to the ACP port on a DMP Plus Series Digital Matrix Processor, with no control system necessary. Mounted in a lectern, an ACP Series control panel can provide easy access to mic volume, program volume, and source selection. Mounted on a wall, the ACP Series provides an easy means of controlling individual and combined speaker zones in divisible meeting spaces.
Up to eight ACP Series button panels can be connected to a single DMP Plus Series and used as ganged audio control points around a meeting space. Individual spaces can each have an ACP Series panel that functions independently. When multiple spaces are combined, the ACP Series panels in those spaces can function in parallel, adjusting audio functions for the entire combined space. ACP panels are compatible with EBDB distribution hubs to reduce cable runs in larger systems.
Since they have the same physical appearance as Extron’s broad range of MediaLink controllers, ACP Series panels can be used alongside them throughout a facility while preserving a consistent look and user experience. Buttons can be easily customized using Extron Button Label Generator software or the online Custom Button Builder tool.
Features
- Fully configurable button panel integrates easily with an Extron DMP Plus Series audio DSP processor — DMP 64 Plus, DMP 128 FlexPlus, and DMP 128 Plus
- Rotary control knob provides smooth, precise adjustment of volume levels
- One backlit, soft-touch button that can be customized using Extron's Custom Button Builder
- Two ACP ports allow for quick system expansion and upgrades
- Use a single button panel or combine up to eight button panels to accommodate a broad variety of system designs — Up to eight button panels can be connected to one DMP Plus Series, with a maximum system cable length of 1000 feet (305 meters) and a maximum power draw of 6 watts.
- Simple yet elegant design blends well in any architectural environment
- Panel connects directly to the DMP Plus Series — No external power or control system required
- Built-in speaker provides audible feedback for button presses
- Removable captive screw connectors allow for quick installation
- Compatible with Extron EBDB distribution hubs — Reduces cable runs in larger systems
- Reset Button — Allows firmware to be reset to original factory settings
- Section 508 Compliant — Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
- Includes black and white EU wall frames and mounting bracket
