AC+USB 200 Series Power Modules – Power Modules for Cable Cubby Series and Select TouchLink Enclosures
Key Features
- For use with Cable Cubby® Series and select TouchLink® enclosures
- AC power outlets available for US, Europe, and other major world markets
- New AC+USB 244 US provides a total of up to 4 A / 20 watts of power
- Non-US versions provide two 5 VDC USB power outlets and up to 3.0 A / 15 watts of power
- Available multi-region AC outlet is compatible with a variety of AC plug types
| AC+USB 200 Power Module Series for Cable Cubby Series/2 | |||
| General | |||
|---|---|---|---|
| Power output | |||
| AC (US model) | 125 VAC. 50-60 Hz, 12 A max total | ||
| AC (non-US models) | 240 VAC, 50-60 Hz, 10 A max total | ||
| USB (US model) | 5 VDC, 4.0 A, 20 watts total; two Type A connectors | ||
| USB (non-US models) | 5 VDC, up to 2.4 A on a single port and up to 3.0 A total shared; two Type A connectors | ||
| USB power supply (non-US models) | External Input: 100-240 VAC, 50-60Hz Output: 12 VDC, 1.5 A | ||
| USB power consumption | |||
| US model | 24.4 watts | ||
| Non-US models | |||
| Device | 17.1 watts | ||
| Device and power supply | 19.5 watts | ||
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| USB thermal dissipation | |||
| US model | |||
| Device and internal power supply | 18.5 BTU/hr | ||
| Non-US models | |||
| Device | 8.1 BTU/hr | ||
| Device and power supply | 16.3 BTU/hr | ||
| Mounting | Mountable into select Cable Cubby enclosures | ||
| Enclosure dimensions | |||
| US model | 2.40″ H x 4.20″ W x 4.00″ D (61 mm H x 107 mm W x 102 mm D) For US AC cord models: Allow an additional 2.50″ (64 mm) depth to account for the attached AC power cord bend radius. For US AC conduit model: Allow an additional 5.00″ (127 mm) depth to account for the attached flexible conduit bend radius. | ||
| Non-US models | 2.40″ H x 4.20″ W x 2.99″ D (61 mm H x 107 mm W x 76 mm D) For non-US AC cord models: Total allowable depth is dependent upon the detachable AC power cord being used. Cable bend radius can vary. | ||
 | |||
| Material | Metal | ||
| Product weight | |||
| US AC cord model | 2.5 lbs (1.1 kg) | ||
| US AC conduit model | 2.4 lbs (1.1 kg) | ||
| Non-US models | 2.2 lbs (1.0 kg) | ||
| Regulatory compliance | CE, c-UL, UL, RoHs, and WEEE | ||
| Product warranty | 3 years parts and labor | ||
| Everlast power supply warranty (non-US models) | 7 years parts and labor | ||
| |||

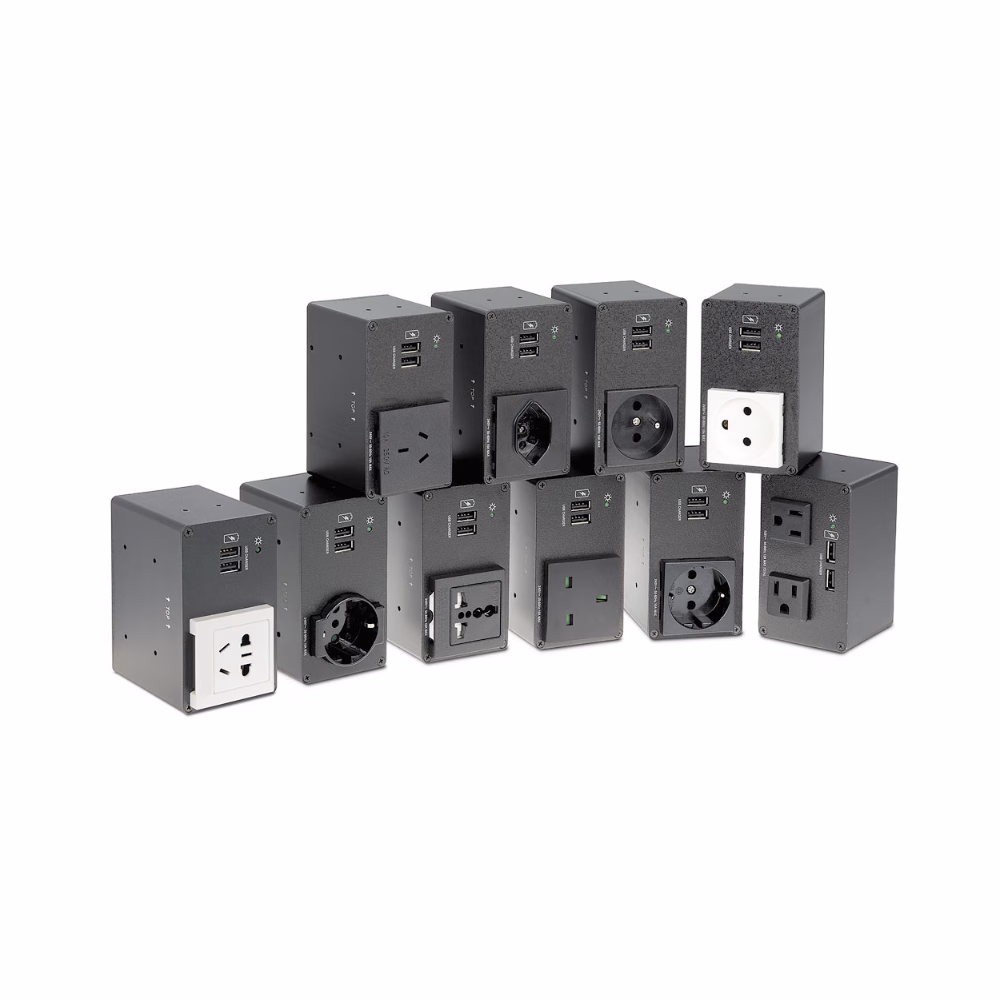

Extron AC+USB 200 Series Power Modules for Cable Cubby® Series and select TouchLink® enclosures are available with discrete AC power outlets for the US, Europe, and other major world markets. They feature one or two unswitched AC power outlets, and two USB Type-A power outlets. The AC+USB 244 US provides +5 VDC up to 4 A / 20 watts of USB power; while the non-US modules provide +5 VDC up to 3.0 A / 15 watts of USB power for charging mobile devices such as laptops, smartphones, and tablets. AC+USB 244 US cord and conduit US power modules are UL/c-UL listed. Extron AC 100 Series Power Modules and AC+USB 300 Series Power Modules are available for applications where AC or AC with USB Type-A and USB Type-C® power outlets are needed.

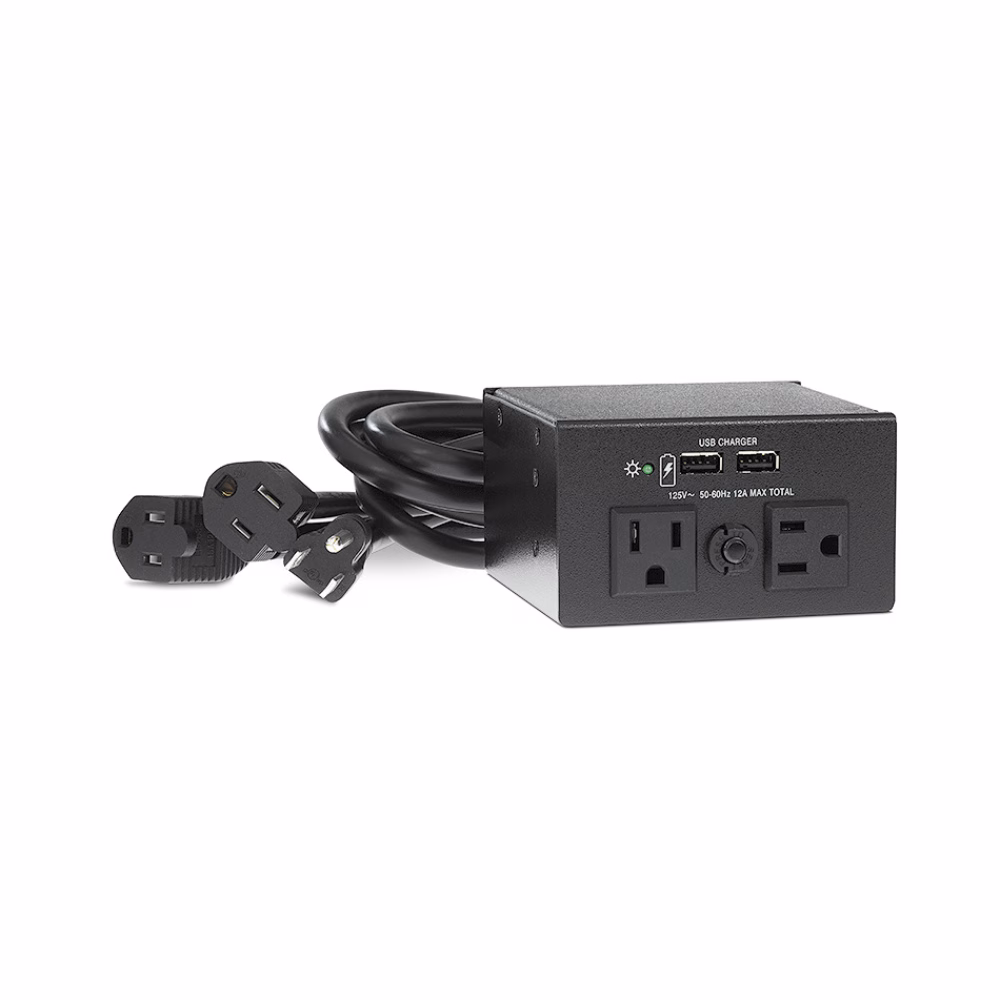

AC+USB 244 US power modules feature a 12 A circuit breaker for current overload protection and are UL/c-ul listed, meeting applicable safety standards when installed properly. Both US models have two unswitched AC outlets and two USB Type-A outlets powered by an integrated power supply. Each module is equipped with a 9.5' (2.90-meter) power cord and two 2' US AC outlet cables on the bottom of the module to power optional devices or a 6' (1.83-meter) length of 3/8" flexible conduit with a 6" (15-cm) pigtail of three-wire cable for applications requiring a hard-wired conduit to AC power. These power modules have a total of up to 4 A / 20 watts of USB power.

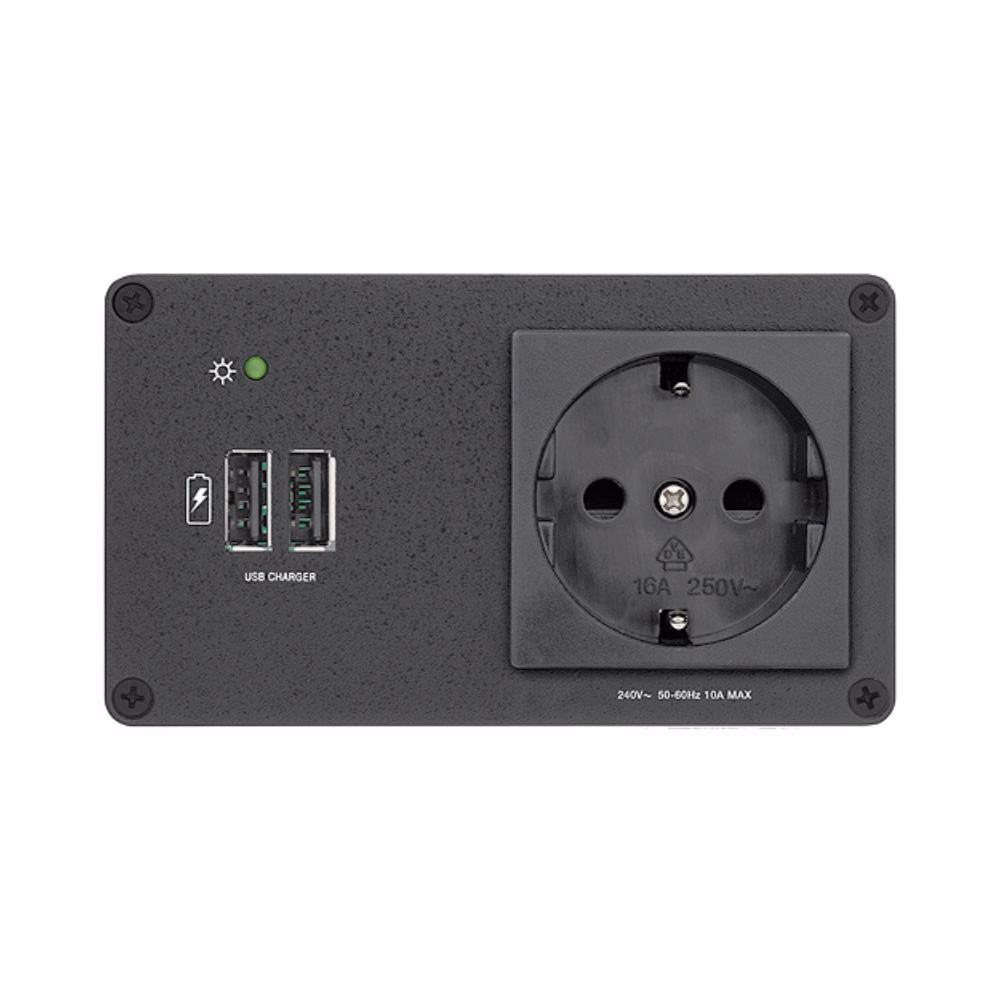

AC+USB 200 non-US power modules feature one unswitched AC outlet and are equipped with an IEC power connector. They provide +5 VDC up to 3.0 A / 15 watts of power to two USB power outlets and can deliver full power to either USB outlet when only one device is connected. The Multi-Region model accepts a variety of AC plug types.
AC+USB 200 Series USB power outlets receive power from highly reliable, Extron-designed and engineered power supplies. The US model features an integrated Extron power supply for convenient installation. All non-US models include an Extron external standalone power supply that meets the Level V standard for energy efficiency and a ZipClip 100 Mounting Kit. ZipClip 100 Mounting Kits securely mount Extron power supplies onto most surfaces, including under tables and inside lecterns.
Compatibility and Capacity Chart
| Model | Capacity | Notes |
|---|---|---|
| Cable Cubby 500 | 1 | |
| Cable Cubby 650 UT | 2 | Additional when expanded |
| Cable Cubby 700 | 1 | |
| Cable Cubby 1200/1202 | 2 | |
| Cable Cubby 1252 MS | 2 | |
| Cable Cubby 1400/1402 | 4 | |
| EBP 1200C | 2 | |
| TLP Pro 525C | 1 | |
| TLP Pro 725C | 3 |
Features
- For use with Cable Cubby® Series and select TouchLink® enclosures
- AC power outlets available for US, Europe, and other major world markets
- New AC+USB 244 US provides a total of up to 4 A / 20 watts of power
- Non-US versions provide two 5 VDC USB power outlets and up to 3.0 A / 15 watts of power — The USB power outlets can deliver full power to either USB outlet when only one device is connected.
- Available multi-region AC outlet is compatible with a variety of AC plug types
- US models feature an easily accessible 12 A circuit breaker for current overload protection
- New UL-listed US cord model features an attached 9.5' (2.90‑m) AC power cord and two 2' US AC outlet cables on the bottom of the module to power optional AV devices; part # 60‑1890‑01
- UL-listed US conduit model features an attached 6' (1.83‑m) length of 3/8" flexible conduit with a 6" (15‑cm) pigtail of three-wire cable; part # 60‑1890‑20
- Non-US models include a ZipClip 100 Mounting Kit to securely mount an Extron power supply onto most surfaces, including tables and lecterns
- AC+USB 244 US models feature an internal Extron Everlast™ power supply — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption.
- Non-US models feature a highly reliable, energy-efficient external universal power supply included, replacement part # 70‑1174‑01 — Provides worldwide power compatibility with high reliability and low power consumption for reduced operating costs.
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
- TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
