AMK 35 Series – Angle Mount Kits for TLP Pro 35 Series Touchpanels
Key Features
- Used to securely mount a TLP Pro 535M, TLP Pro 835M, or TLP Pro 1035M at a 25-degree angle on a wall, tabletop, or other flat surface, including glass
- Kit includes pre-adhered adhesive and paper template can be downloaded to simplify alignment and installation
- Angled to provide optimum viewing when mounted at ADA height
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knockouts for convenient and discreet Ethernet cable pass-thru
| AMK 4, 5, and 6 | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to glass, masonry, and other flat surfaces | ||
 | |||
| Enclosure dimensions | |||
| AMK 4 | 2.66″ H x 5.01″ W x 1.36″ D (68 mm H x 127 mm W x 35 mm D) | ||
| AMK 5 | 3.85″ H x 7.02″ W x 2.08″ D (98 mm H x 178mm W x 53 mm D) | ||
| AMK 6 | 3.85″ H x 7.02″ W x 2.08″ D (98 mm H x 178mm W x 53 mm D) | ||
| Product weight | |||
| AMK 4 | TBD | ||
| AMK 5 | TBD | ||
| AMK 6 | TBD | ||
| Enclosure material | TBD (by Engineering) | ||
| Regulatory compliance | CE, UKCA, RoHS and WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||

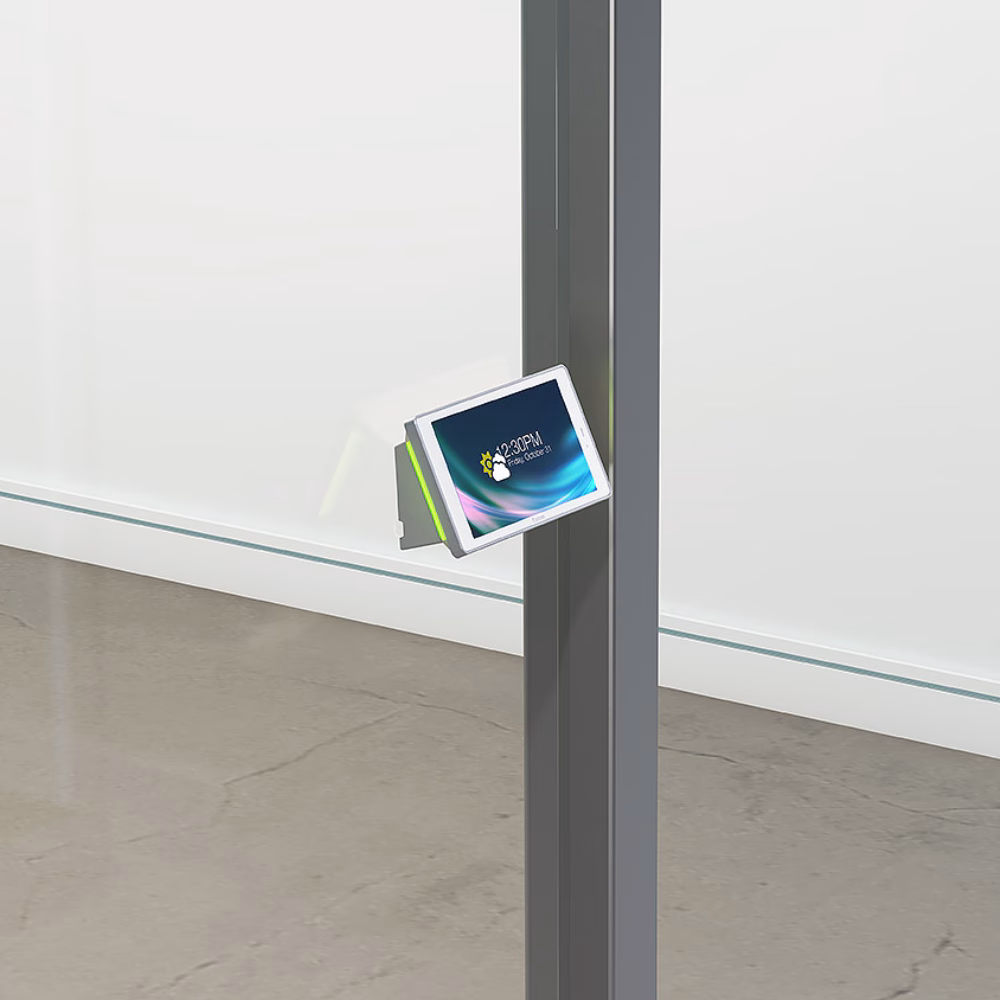

The Extron AMK 35 Series of angle mount kits are specifically designed for TLP Pro 35 Series wall mount touchpanels. They make it easy to mount a touchpanel at the perfect viewing angle while also securing it on a wall, tabletop, or other flat surface, even glass. The low-profile design maintains the refined, modern look of the touchpanel. When using an angle mount kit on glass, the included glass overlay provides a clean, discreet look when viewed from the back of the installation. These kits are available in black and white and include a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TLP Pro 535M, TLP Pro 835M, or TLP Pro 1035M at a 25-degree angle on a wall, tabletop, or other flat surface, including glass
- Kit includes pre-adhered adhesive and paper template can be downloaded to simplify alignment and installation
- Angled to provide optimum viewing when mounted at ADA height
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knockouts for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
- Available in black and white
