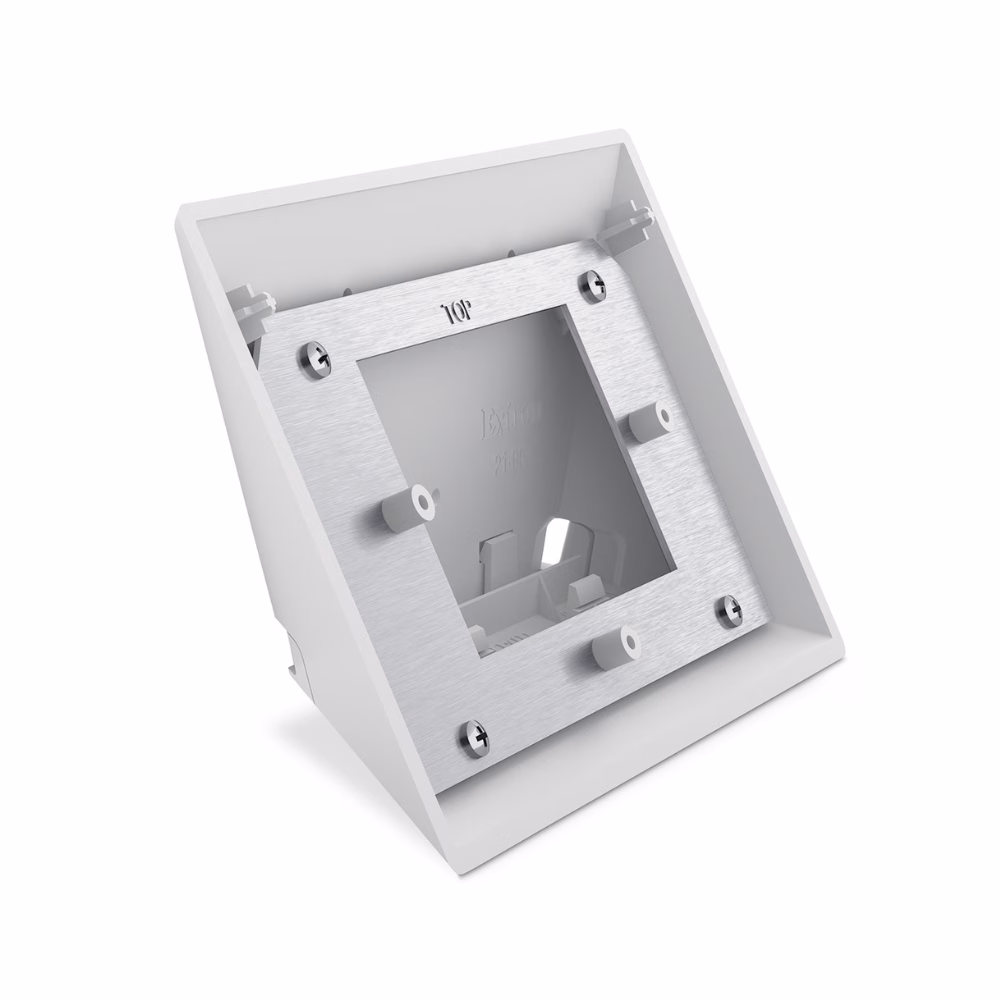

Angle Mount Kits – For TouchLink Pro Touchpanels, TLC Pro Series, and TouchLink Scheduling Panels
Key Features
- Used to securely mount a TouchLink Pro touchpanel, TLC Pro control system, and TouchLink Scheduling panel at a 25 degree angle on a wall or other flat surface, including glass
- Kit includes pre-adhered adhesive and paper template can be downloaded to simplify alignment and installation
- Angled to provide optimum viewing when mounted at ADA height
- Design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knock-outs for convenient and discreet Ethernet cable pass-thru
| AMK Series | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to glass, masonry, and other flat surfaces | ||
 | |||
| Enclosure dimensions | |||
| AMK 1 | 3.42″ H x 5.69″ W x 1.67″ D (87 mm H x 145 mm W x 42 mm D) | ||
| AMK 2 | 3.70″ H x 5.93″ W x 1.97″ D (94 mm H x 151 mm W x 50 mm D) | ||
| AMK 3 | 3.70″ H x 5.93″ W x 1.97″ D (94 mm H x 151 mm W x 50 mm D) | ||
| Product weight | |||
| AMK 1 | 0.21 lbs (0.1 kg) | ||
| AMK 2 | 0.26 lbs (0.12 kg) | ||
| AMK 3 | 0.26 lbs (0.12 kg) | ||
| Enclosure material | High impact thermoplastic | ||
| Regulatory compliance | CE, RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||
Extron Angle Mount Kits are specifically designed for our latest wall mount TouchLink Pro touchpanels, TLC Pro control systems, and TouchLink Scheduling panels. They make it easy to mount a touchpanel at the perfect viewing angle while also securing it on a wall or other flat surface, even glass. The low-profile design maintains the sleek, stylish appearance of the touchpanel. When using an Angle Mount Kit on glass, the included glass overlay provides a clean, discreet look when viewed from the back of the installation. These kits are available in black and white and include a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TouchLink Pro touchpanel, TLC Pro control system, and TouchLink Scheduling panel at a 25 degree angle on a wall or other flat surface, including glass
- Kit includes pre-adhered adhesive and paper template can be downloaded to simplify alignment and installation
- Angled to provide optimum viewing when mounted at ADA height
- Design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included
- Available in black and white
