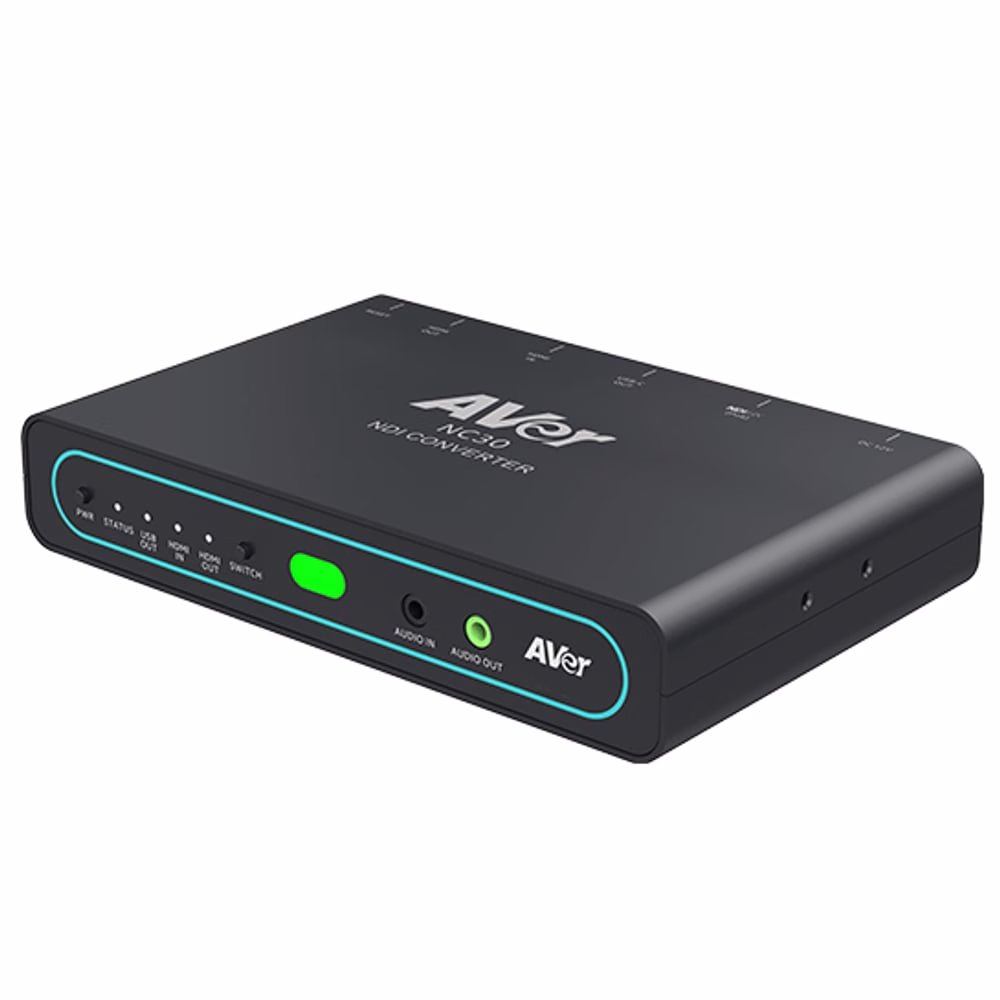

AVer NC30
The AVer NC30 NDI® Converter is a bi-directional NDI converter built for Pro AV environments, supporting NDI HX2 and HX3 for efficient, low-latency 4K video over standard networks. Switch between NDI encoding and decoding modes to bridge HDMI® sources and IP video streams — with 4K60P output to HDMI and USB-C in decoding mode. Centralized control via Enterprise Management makes multi-space NDI deployments faster to set up and easier to maintain across campuses, enterprises, and production spaces.
General
- Video Input & Resolution: Via HDMI® 2.04K 60fps: 1 Input
- Video Input: NDI® HX2, NDI HX3 via IP4K 60fps: 1 Input1080p 60fps: Up to 4 Inputs
- Video Output: NDI HX2 via IP
- Video Output & Resolution: Up to 4K 60fps via HDMI 2.0 & USB-C (UVC)Supports simultaneous HDMI & USB-C output**
- NDI Protocol: NDI HX2NDI HX3
- Codecs: H.264H.265
- Audio In: 3.5 mm × 1
- Audio Out: 3.5 mm × 1
- Web UI: Yes
- PoE: 1 (IEEE 802.3af, 37V to 57V 0.35A)
- Camera PTZ Control: PanTiltZoomFocusPreset Control
- HDMI Loop-out: N/A
- NDI Source Routing: Yes
- USB-C: 1
- HDMI In: 1
- HDMI Out: 1
- Live Video Preview: Yes
- Encoding/Decoding Mode Switching: Yes, Reboot Required
- NDI Source Selection: Yes
- Encoding Settings: CodecResolutionFrame Rate
- Network Configuration: DHCP (Default)Static IP Configuration
- Supported Web Browsers: Chrome™Microsoft EdgeSafari®
- Enterprise Management: Supports Windows® 10 or later
- Device Utility: Supports Windows® 10 or latermacOS® 10.14 or later
- DC Input: AC 100 - 240V to DC 12V/2A
- Buttons: PowerSource Switch
- Dimensions (W × H × D): 164.0 × 30.0 × 104.1 mm
- Weight: 0.6 (±0.1) kg
- LED Indicators: StatusUSB OutHDMI InHDMI Out
- NDI Tally: YesSolid Red: ProgramSolid Green: Preview
- Installation Methods: Rack MountedWall MountedUnder the TableTripod
- Operating Conditions: Temperature: 0 °C to +40 °CHumidity: 20% to 80%
- Storage Conditions: Temperature: –20 °C to +60 °CHumidity: 20% to 95%
- Warranty: 5 Years
- Package Contents: NC30 NDI® Converter, Power Adapter, Power Cord, Cable Fixing Plate, Mount Bracket (× 2), 3.0 × 5 mm Flat Head Screw (× 2), 3.0 × 5 mm Truss Head Screw (× 4), M3 × 10 mm Screw (× 4), Cable Tie (× 3), Quick Start Guide
- Optional Accessories: USB Type-C to Type-C Cable
Simultaneous 4K 60P HDMI & USB-C Output.
In decoding mode, the NC30 streams 4K 60fps* video to a display via HDMI while simultaneously delivering video to a laptop over USB-C. Keep both connections live without adapters or extra setups — an ideal solution for ensuring presentation equity in hybrid classrooms, meeting rooms, and live production.
Dual Modes. Total Flexibility.
Easily switch between encoding and decoding modes to adapt to your workflow. Whether converting HDMI sources into an NDI network or outputting IP streams to local displays, the NC30 handles it all effortlessly.
Built for the AVer Pro AV Ecosystem.
The NC30 works natively with AVer cameras, Matrix Tracking Boxes, and BYOM Matrix Switchers, for cross-room distribution. Standardize your setup, cut integration complexity, and build scalable AV-over-IP architectures that expand from a single room to multiple classrooms, meeting rooms, training spaces, and live production environments.
Centralized NDI Routing. Powered by Enterprise Management.
Manage your entire NDI network via Enterprise Management software. Assign signals and switch sources through an intuitive interface featuring multi-stream previews. It transforms complex IP routing into a faster, easier process.
Zero-Latency Display. Streamlined Control.
In encoding mode, the HDMI Loop-out delivers instant, zero-latency live feeds for monitoring in professional live production. Network-based PTZ camera control and NDI low-latency streaming unify video transmission and device management into a single, cohesive workflow.
