CAM550

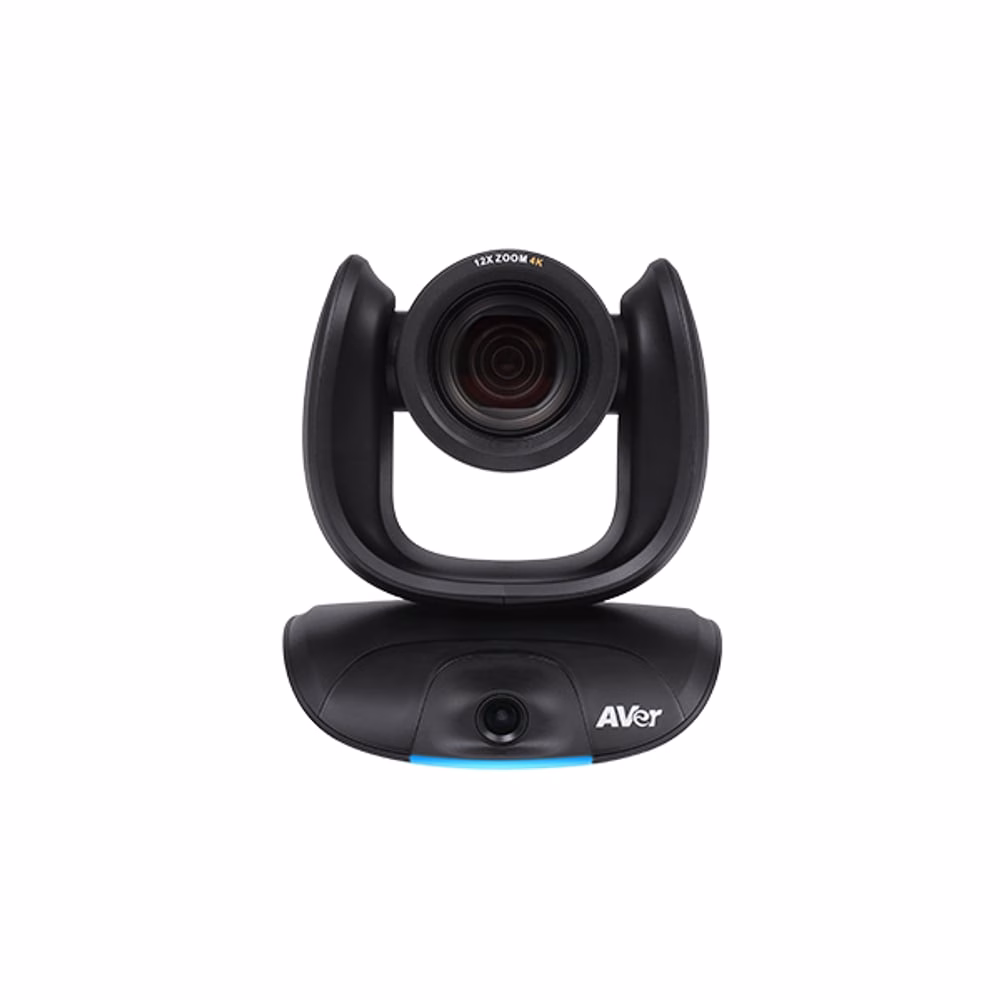

4K Dual Lens PTZ Conferencing Camera
The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.

Categories: , Brand:

Dual Camera

PTZ optical zoom lens

  • Image Sensor: 1/2.8” 4K Sony Exmor CMOS
  • Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  • 24X Zoom*: 12X optical; 2X digital zoom
  • Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
  • Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • AE, white balance: auto, manual override via Room Management (PTZApp 2)
  • Minimum focus distance: 1.5m
  • Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
  • Preset number: 10 via IR remote, 128 via RS232

Secondary fixed lens (AI lens)

  • Image Sensor: 1/2.5” 4K Sony Exmor CMOS
  • Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°

Innovative features

  • Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
  • Simultaneous 3-way output: USB, HDMI and IP connections
  • Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
  • Audio tracking support: Integration with AVer FONE700 & 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link ** function.

HDMI & PoE

  • HDMI 1.3: 1080p 30fps/ 60fps
  • PoE+: 802.3at

Video Format

  • Network video compression format: H.264, H.265
  • Network protocol: RTSP, RTMP

Control

  • Remote side: VISCA over IP, IP (RJ45)
  • WebUI: Browser IP access via Chrome. (Not support IE)
  • OSD setting: HDMI out to TV monitor

Power Supply

  • AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
  • PoE+: 802.3 at

Environment Data

  • Operation temperature: 0 to 40°C
  • Operation humidity: 20% to 80%
  • Storage temperature: -20 to 60°C
  • Storage humidity: 20% to 80%

Dimensions

  • Package dimensions: 253(L)*253(W)*271(H) mm
  • Package weight: 4.8KG
  • Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
  • Remote control: 200 x 50 x 21 mm/90g

Warranty

  • Camera: 3 years*
  • Accessories: 1 year

The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.

4K Dual Lens Offers Wide-angle Clarity for Mid-to-Large Scale Rooms

Capture a complete view of the room with wide-angle clarity. The CAM550 equips two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room.

Dynamic Framing Enhances Meeting Efficiency

The CAM550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, this dynamic framing optimizes meetings and protects the safety of participants.

AI Gesture Recognition Delivers Contactless Control

Take advantage of intuitive gesture control to operate the camera. Built-in AI gesture recognition eliminates touchpoints. Camera controls have never been easier or safer.

Highlight Participants with Smart Gallery

Clearly capture attendees with Smart Gallery, which enables AI face and body detection technology to crop participant’s faces and make sure everyone is looking great. You can choose between headshot and half body mode to adapt to any situation without compromise.

Get rid of USB cable connections by using the AVer Virtual Stream function

Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.

* PoE+ configuration is only supported by Windows OS.

Enable Third-Party Audio Tracking Integration with Preset Link

Preset Link is an all new function of the included Room Management (PTZApp 2) that integrates AVer USB cameras with Shure® and Sennheiser® microphones. The camera automatically identifies speakers and adjusts its field of view instantly by voice tracking, according to your preset area settings. Upgrade your smart conference meeting experience with Preset Link.

Accurate Attendee Capture with AVer Smart Composition – No Installation Required

The CAM550 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant's face or body perfectly. It's a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the CAM550, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.

AVer Camera & Speakerphone Collaboration with Voice Tracking

The CAM550 and FONE700 work seamlessly as a team. FONE700 intelligently detects the active speaker's location, guiding CAM550 to automatically adjust its view and keep them in focus. No more manual adjustments! Enjoy smooth meeting flow, clear FONE700 audio, and focused visuals for a truly engaging meeting.

Circular Packaging Today, Carbon-Smart Tomorrow

AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.
