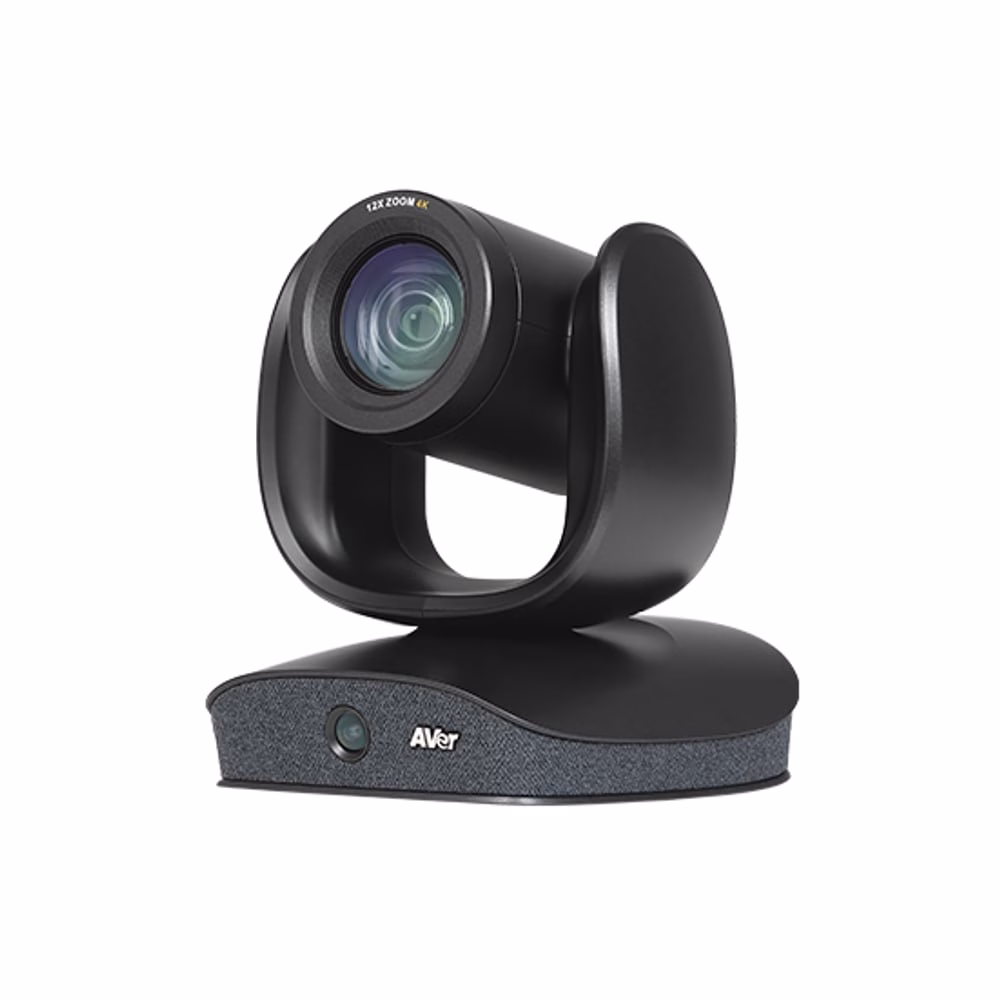

CAM570
4K Dual Lens Audio Tracking Camera for Medium and Large Rooms
AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.
Dual Camera
PTZ optical zoom lens
- Image Sensor: 1/2.8” 4K Sony Exmor CMOS
- Frame Rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
- 36X Zoom*: 12X optical; 3X digital zoom
- Viewing Angles: DFOV 90°; HFOV 78°; VFOV 50°
- Lens Focal Length: 3.4mm (Wide) ~ 40.3mm (Tele)
- Lens F#: 1.8 (Wide) ~ 3.6 (Tele)
- Wide Dynamic Range (WDR): Superb backlight compensation
- Minimum Focus Distance: 1.5 m
- Viewing Area: Pan: ±170°; Tilt: +90° (up) / -30° (down)
- Preset Positions: 10 via IR remote, 128 via RS-232
Secondary fixed lens (AI lens)
- Image Sensor: 1/2.5” 4K Sony Exmor CMOS
- Wide field of view: DFOV 95°; HFOV 82°; VFOV 52°
Innovative Features
- SmartSpeaker: Automatically track human voice and focus on the speaker
- Dynamic Detection: Secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants
- Presentation Tracking: Voice-triggered tracking speaker with both preset area and people tracking
- Simultaneous 3-way Output: USB, HDMI and IP connections
- Streaming Technology: One RJ-45 cable transfers IP streaming to USB
- Audio Tracking: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yamaha) via AVer Preset Link* function.
Audio Sensor
- Audio pick-up range: 10m, ±60°
HDMI & PoE
- HDMI 1.3: 1080p 30fps/ 60fps
- PoE+: 802.3at
Video Format
- Network video compression format: H.264
- Network protocol: RTSP, RTMP
Control
- Remote side: VISCA over IP, IP (RJ-45)
- WebUI: Browser IP access via Chrome. (Not support IE)
- OSD setting: HDMI out to TV monitor
Power Supply
- AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
- PoE+: 802.3 at
Environment Data
- Operation temperature: 0 to 40°C
- Operation humidity: 20% to 80%
- Storage temperature: -20 to 60°C
- Storage humidity: 20% to 80%
Dimensions
- Package dimensions: 253(L)*253(W)*271(H) mm
- Package weight: 4.8KG
- Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
- Remote control: 200 x 50 x 21mm/90g
Warranty
- Camera: 3 years*
- Accessories: 1 year
AVer CAM570 is a 4K dual lens camera with a 36X Total zoom PTZ camera and a second AI lens with 95˚FOV. Equipped with built-in audio sensor, CAM570 detects human voices up to 10M and offers audio tracking function. AI technology such as Smart Gallery and gesture control can capture every attendees up-close with premium video quality.
Built-in Audio Sensor Enables Audio Tracking
Easily focus on active speaker with audio tracking mode and presentation mode. The camera will follow the speaker automatically or you can set up a preset point to focus on a specific area. The built-in sensor picks up human voices up to 10M without being disturbed by a local speakerphone.
Dynamic Detection Optimizes Meeting Experience
The dual-lens design detects real-time motion precisely while offering a complete view of the room simultaneously. When the second AI lens detects a newcomer walking in, it triggers the first PTZ camera to re-frame the participants, ensuring all meeting attendees are instantly captured again for a seamless collaboration in real-time.
Smart Gallery Delivers a Clearer View of Faces
Perfectly see everyone in the room. Thanks to AI technology, Smart Gallery crops meeting attendees and display them in equal individual feeds. Highlight participants’ facial and body expressions, leading to effective hybrid meetings.
Interact with CAM570 Using Touchless Gesture Control
With the application of AI to recognize gestures and interpret commands, you can turn on/off the tracking function and zoom in/out without any direct physical touch. Minimize the touch points and improve workplace hygiene.
Picture-in-Picture Displays Preferred Conference View
CAM570 includes a PTZ camera with 36X Total zoom and a second AI lens to provide a panoramic view. The dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options. Ideal for larger and more complex meeting spaces.
Accurate Attendee Capture with AVer Smart Composition – No Installation Required
The CAM570 is one of the first PTZ camera and audio systems on the market to offer a Smart Composition feature — technology usually only found in enterprise-grade devices. Smart Composition uses AI algorithms to automatically frame each participant's face or body perfectly. It's a click-to-play feature with no software setup needed. Seamlessly transition between headshots and half-body views, effortlessly switching from individual to group images. With the CAM570, you’ll enjoy high-definition views of participants and easy meeting setups for optimal productivity.
Smart ViewShift Reduces Movement Sensitivity
The CAM570 has just become even smarter with the latest firmware upgrade! The new Smart ViewShift function is designed to enhance your video conferencing experience by reducing movement sensitivity during audio tracking. With various transition effects, the camera smoothly shifts focus to the target person, providing remote participants with a more comfortable and stress-free call experience. Say goodbye to jarring movements and hello to seamless transitions.
Circular Packaging Today, Carbon-Smart Tomorrow
AVer's sustainable shipping packaging solutions feature eco-friendly recycled materials with easy disassembly and strategically plastic-reduced design: 35% recycled PE bags, 100% recycled paper-pulp cushioning, and 85% recycled cardboard boxes. Our space-optimized recyclable packaging reduces carbon footprint by 30%+ while cutting storage and shipping costs—delivering sustainable packaging solutions for eco-conscious users.
