CS 123T – Full-Range 70/100 V SpeedMount Ceiling Speaker System
Key Features
- Patented two-piece speaker system for suspended ceilings in division-of-labor installations
- Enclosure and speaker cartridge can be purchased as individual components and installed separately by low-voltage and AV system contractors
- Provides significant time and cost savings in ceiling speaker installation
- 3″ (76 mm) full-range driver
- 165° conical dispersion provides wide coverage and allows for flexible speaker placement
- 8 ohm direct or 70/100 volt operation on a six position, behind-the-grille selector
| CS 123T system — CS 120P and CS 3T | |||
|---|---|---|---|
| General | |||
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Mounting | Ceiling mountable with included hardware | ||
| Regulatory compliance | |||
| Safety | CE, NFPA 70, NFPA 90A UL listed for use in plenum air spaces: Meets UL 2043 for heat and smoke release (only when CS 3T is used with CS 120P). Meets UL 1480 for commercial and professional audio systems. | ||
| Environmental | Complies with the appropriate requirements of RoHS and WEEE. | ||
| Product warranty | 5 years parts and labor | ||
| CS 120P Plenum Enclosure | |||
| General | |||
| Package | 2 plenum rear enclosures (1 pair) | ||
| Enclosure type | |||
| Enclosure materials | Aluminized fiberglass, plastic, MDF, steel | ||
| Enclosure design | 1′ x 2′ (30.5 cm x 61 cm) tapered cube | ||
| Insulation | Glass polyfill | ||
| Enclosure outer dimensions | 23.7″ L x 11.7″ W x 4.9″ D (60.1 cm L x 29.7 cm W x 12.4 cm D) | ||
| Cutout dimensions | |||
| Without fiberglass tile adapter | 9.07″ (230.5 mm) diameter | ||
| With fiberglass tile adapter | 9.21″ (234 mm) diameter | ||
| Product weight | 6.0 lbs (2.72 kg) | ||
| CS 3T Speaker Cartridge | |||
| Audio/acoustic and electrical | |||
| Speaker type | 1-way full range in-ceiling speaker | ||
| Frequency range | 118 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5) | ||
| Power capacity | 16 W (rms) continuous pink noise (per IEC 60268-5) 32 W (rms) continuous program | ||
| Nominal sensitivity | 83 dB SPL, 1 W, 1 m, 8 ohms direct, half space (per IEC 60268-5) | ||
| Nominal impedance | 8 ohms per speaker | ||
| Nominal coverage angle | 165° conical coverage (1 kHz to 4 kHz, weighted 2 kHz – 4 kHz) | ||
| Rotary switch taps | |||
| 70 V input | 16 W, 8 W, 4 W, 2 W, 1 W, 8 ohms direct | ||
| 100 V input | 16 W, 8 W, 4 W, 2 W, 8 ohms direct | ||
| Driver | (1) 3″ (76.2 mm) paper cone | ||
| Overload protection | Full range power limiter | ||
| Input/output connectors | (1) 5 mm captive screw connector, 4 pole with loop out | ||
| General | |||
| Package | 2 speakers (1 pair) | ||
| Mounting | Ceiling mountable with CS 120P enclosure | ||
| Enclosure type | |||
| Enclosure materials | High-impact, fire-resistant (UL94V-0) plastic | ||
| Enclosure design | Plastic, open back, infinite baffle | ||
| Grille material | Steel | ||
| Enclosure outer dimensions | 3.0″ H x 10.3″ diameter (7.6 cm H x 26.2 cm diameter) Height is from front (bottom) of ceiling tile to top of withdrawn locking arms. | ||
| Cutout dimensions | |||
| Without fiberglass tile adapter | 9.07″ (230.5 mm) diameter | ||
| With fiberglass tile adapter | 9.21″ (234 mm) diameter | ||
| Product weight | 3.4 lbs (1.6 kg) | ||
| |||
| |||
 | |||
 | |||

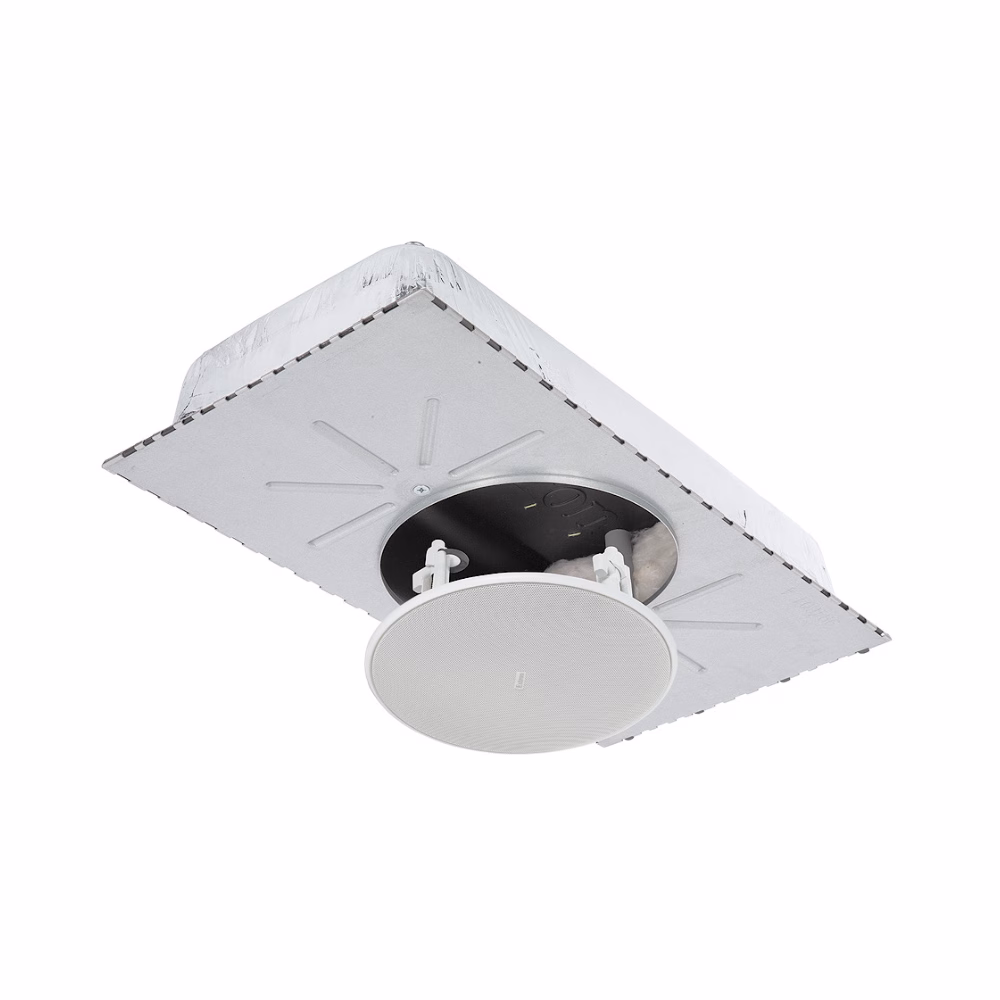

The Extron CS 123T SpeedMount® Ceiling Speaker System is a patented low profile, plenum rated two-piece speaker system. It provides an extremely wide 165° conical dispersion for flexibility in speaker spacing. The system is designed for applications where high intelligibility and maximum coverage is desired in paging applications and low ceiling installations. The innovative system consists of the CS 120P plenum rated enclosure and a CS 3T full-range speaker cartridge. The enclosure installs quickly into 2' x 2' (61 cm x 61 cm) or 600 mm x 600 mm suspended ceilings. The speaker cartridge features a 3" (76 mm) full-range driver, and can be used in 70/100 volt or 8 ohm operation. The CS 123T is available as a complete assembly, or the CS 120P and CS 3T can be purchased separately to accommodate division-of-labor installations.
The unique, patented two-piece design of the SpeedMount Ceiling Speaker System greatly simplifies installation of ceiling speakers and saves costs, especially when a large quantity is needed for a facility. Instead of waiting until the final phase of installation, when ceiling access is limited, a low-voltage contractor can begin during rough-in by placing a CS 120P enclosure into the ceiling grid, and running speaker cable through it. This leaves the AV installer with a simple procedure of connecting the CS 3T speaker cartridge to the wiring and securing it into the enclosure.

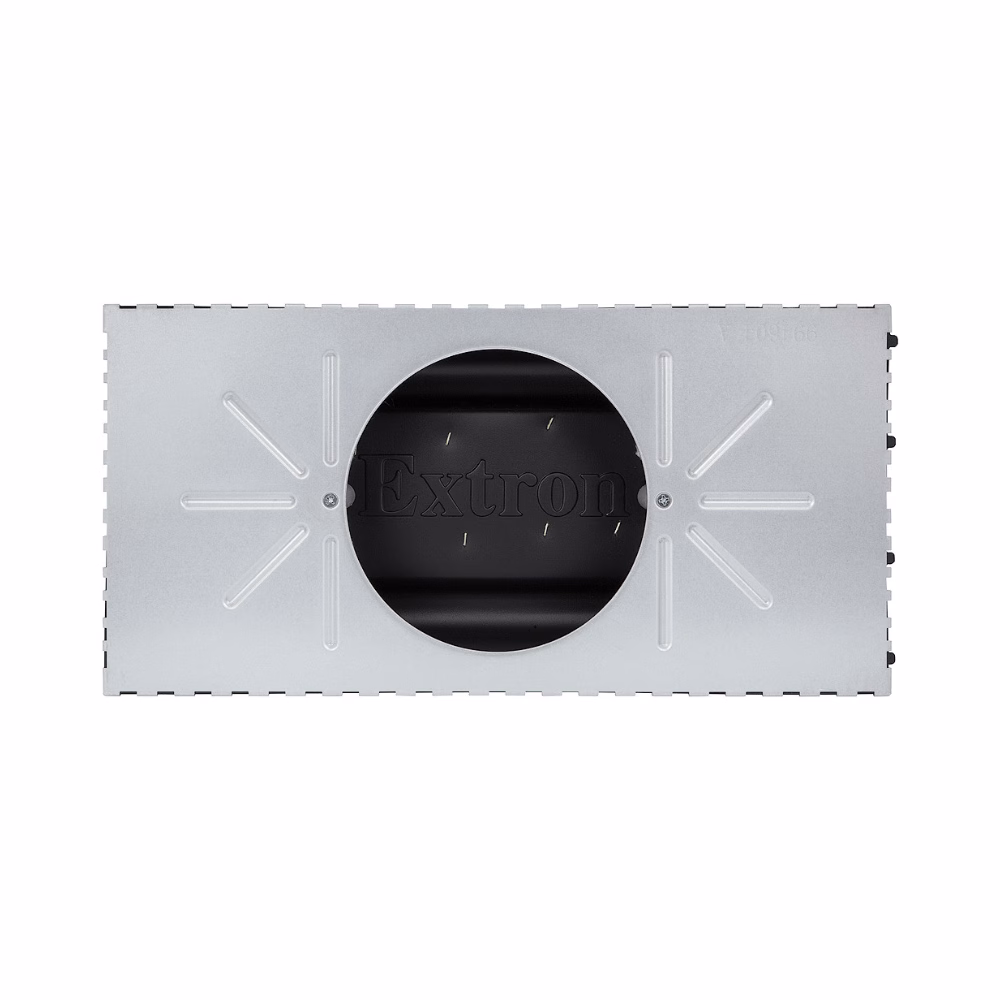

1' x 2' Plenum Rated Enclosure
The CS 120P plenum rated enclosure features a shallow 4.9" (12.4 cm) profile, which simplifies installation into congested ceiling spaces around piping and ducts. The integrated tile bridge of the enclosure rests with the ceiling tile on the grid, evenly distributing the weight of the enclosure and the CS 3T. This avoids the need to assemble V-rails and C-rings, greatly reducing the number of installation steps and the chance of losing installation hardware. Additionally, the CS 120P is reinforced to minimize acoustical vibrations.
Compatible with US and International Ceiling Grids
The CS 120P features removable sizing tabs, which allow the enclosure to be placed into US-style 2' x 2' suspended ceilings. The tabs can be removed, allowing the CS 120P to be installed into metric 600 mm x 600 mm ceilings.
Full-Range Speaker Cartridge
The CS 3T speaker cartridge installs quickly and easily into the CS 120P enclosure. It delivers full-range audio reproduction, and a wide conical dispersion of 165 degrees for vocal clarity and broad coverage. The CS 3T is optimized for voice reproduction and paging applications. It features a power rating of 16 watts continuous pink noise and 32 watts continuous program capacity.
This speaker cartridge offers both direct 8 ohm or 70/100 volt operation with a behind-the-grille, six position power selector switch. For room balancing with 70/100 volt systems, the behind-the-grille power selector switch allows for 16, 8, 4, 2, and 1 watt settings in 70 volt operation, and 16, 8, 4, and 2 watt settings for 100 volt operation.
The CS 3T features a thin-edged bezel for a refined appearance on the ceiling. The grille attaches magnetically to the baffle and quickly snaps into place. The white grille and bezel can be painted to match the architectural elements of the environment.
Features
- Patented two-piece speaker system for suspended ceilings in division-of-labor installations —
- CS 120P plenum ceiling tile enclosure, 1' x 2' (30.5 cm x 61 cm), pair
- CS 3T full-range speaker cartridge, pair
- Enclosure and speaker cartridge can be purchased as individual components and installed separately by low-voltage and AV system contractors
- Provides significant time and cost savings in ceiling speaker installation
- 3" (76 mm) full-range driver
- 165° conical dispersion provides wide coverage and allows for flexible speaker placement
- 8 ohm direct or 70/100 volt operation on a six position, behind-the-grille selector —
- 8 ohm direct
- 70 volt: 16, 8, 4, 2, and 1 watt selectable
- 100 volt: 16, 8, 4, and 2 watt selectable
- 16 watts continuous pink noise
32 watts continuous program - Internal driver overload protection
- Thin bezel and magnetically attached grille
- Grille and bezel are available in white only and may be painted to match environment
- Spring-loaded locking arms on the CS 3T for quick installation — Supports ceilings from 0.28" (7 mm) to 1.24" (32 mm) thick
- Fast-installing enclosure speeds installation; no tile bridge necessary
- UL 2043 plenum rated enclosure
- UL 1480 listed for safety
- Low profile, 4.9" (12.4 cm) deep enclosure for plenum environments
- Compatible with US 2' x 2' ceiling grids and metric 600 mm x 600 mm ceiling grids
- Reinforced enclosure minimizes acoustical vibrations
- 5 year parts and labor warranty
