DA2 HD 8K AE – 8K HDMI Distribution Amplifier with Audio De-Embedding
Key Features
- De-embeds two-channel analog audio from an HDMI signal
- Supports computer and video resolutions up to 8K/60
- Supports ultra-wide aspect ratios, including 21:9 and 5K
- Supported HDMI 2.1 specification features include data rates up to 40.1 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
- HDCP 2.3 compliant
- Automatic input cable equalization
| Video | |||
|---|---|---|---|
| Maximum data rate | 40.1 Gbps | ||
| Maximum pixel clock | 2376 MHz | ||
| Resolution range | |||
| VESA | 640×480 to 7680×4320 | ||
| SMPTE | Up to 1080p @ 240 Hz or 8K @ 60 Hz (4:2:0 chroma sampling) | ||
| Ultra Wide & 5K | 2560×1080, 3440×1440, 3840×1080, 3840×1440, 3840×1600, 5120×1080, 5120×1440, 5120×2160, 5120×2560, 5120×2880 | ||
| Color bit depth | 8, 10, or 12 bits — subject to the max data rate | ||
| Formats | RGB and YCbCr digital video | ||
| Standards | DVI 1.0*, HDMI 2.1, HDCP 1.x, HDCP 2.3 | ||
| HDR | HDR10, HDR10+, and Dolby Vision | ||
| |||
| |||
| Video input | |||
| Number/signal type | 1 single link HDMI (or DVI-D*) | ||
| Connectors | 1 female 19-pin HDMI type A | ||
| Input cable length | Up to 15 feet (4.0 m) | ||
| Horizontal frequency | 15 kHz to 270 kHz for resolutions up to 40.1 Gbps | ||
| Vertical frequency | 24 Hz to 240 Hz for resolutions up to 40.1 Gbps | ||
| EDID emulation | 128 – 512 byte EDID support (1 – 4 blocks) | ||
| Video output | |||
| Number/signal type | 2 single link HDMI | ||
| Connectors | 2 female 19-pin HDMI type A | ||
| Power for active cables | 1.25 W total power for HDMI port | ||
| Peripheral device power | 250 mA per HDMI output | ||
| Audio input | |||
| Digital | |||
| Number/signal type | 1 digital embedded audio on HDMI | ||
| Connectors | 1 female 19-pin HDMI type A | ||
| Embedded audio formats | LPCM up to 7.1/24-bit/192 kHz, Dolby® Digital EX, Dolby Digital Plus™, Dolby Digital 5.1, Dolby Digital 2.0 Surround, Dolby Digital 2.0, Dolby TrueHD, Dolby Atmos™, DTS-HD Master Audio, DTS-X, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS-Digital Surround 5.1, DTS 2-Channel | ||
| Audio output | |||
| Digital | |||
| Number/signal type | 2 digital embedded audio on HDMI | ||
| Connectors | 2 female HDMI | ||
| Analog | |||
| Number/signal type | 1 stereo balanced/unbalanced | ||
| Connector | (1) 3.5 mm captive screw connector, 5-pole | ||
| Impedance | 50 ohms unbalanced; 100 ohms balanced | ||
| Maximum level | >+12 dBV balanced, +6 dBV unbalanced | ||
| Communications — unit | |||
| USB control port | 1 female USB-C on front panel | ||
| USB standards | USB 2.0 high speed | ||
| Program control | Extron Simple Instruction Set (SIS™), Extron PCS | ||
| General | |||
| Power supply | External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 Watt | ||
| Power consumption | 7 watts | ||
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Thermal dissipation | 15.5 BTU/Hr | ||
| Mounting | |||
| Rack mount | Yes, with optional rack shelf kit | ||
| Enclosure type | Metal | ||
| Enclosure dimensions | 1.00″ H x 4.30″ W x 6.00″ D ( 1 inch high, quarter rack wide) (25 mm H x 109 mm W x 152 mm D) | ||
| Product weight | 0.55 lbs (0.25 kg) | ||
| Regulatory compliance | CE, c-UL, UL, C-Tick, FCC Class A, ICES, KC, VCCI | ||
| Product warranty | 3 years parts and labor | ||
| Everlast power supply warranty | 7 years parts and labor | ||
| |||
| |||

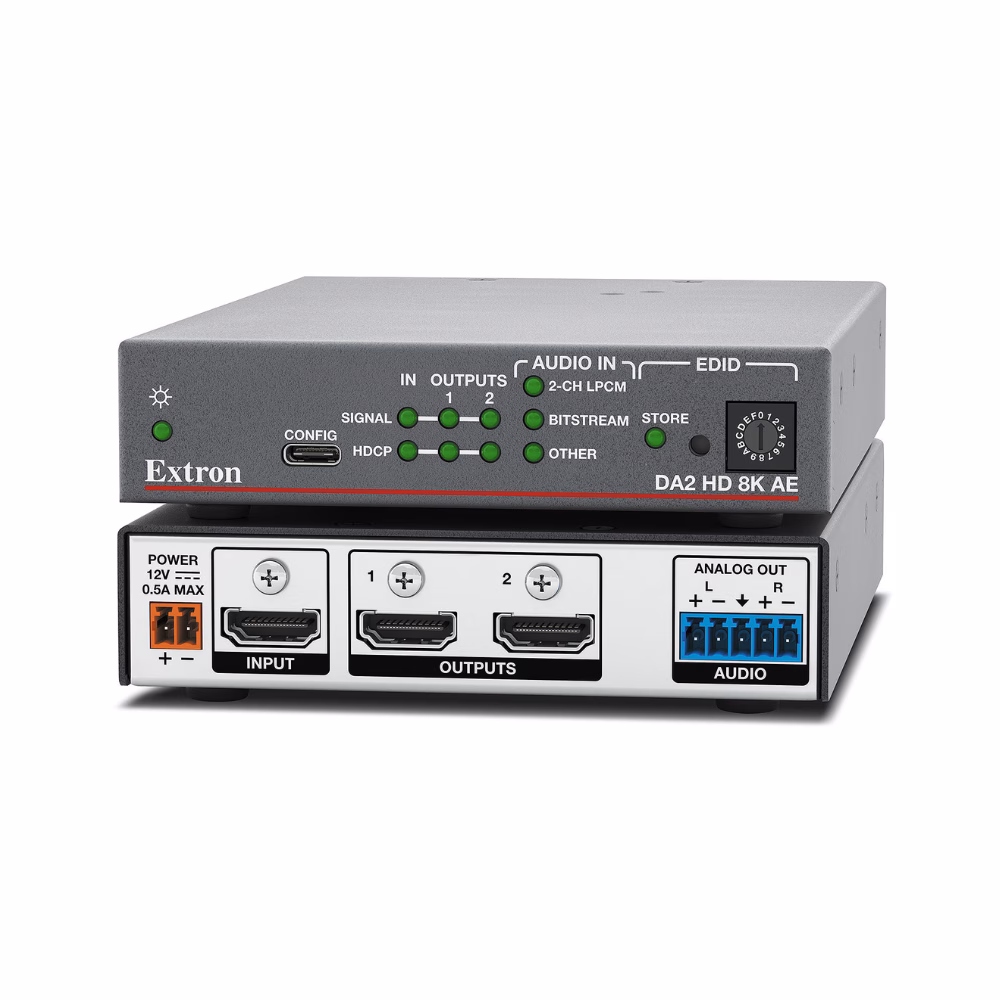

The Extron DA2 HD 8K AE is a high performance 8K/60 audio de‑embedder that extracts two-channel LPCM audio from the HDMI input signal and converts it to analog audio. Its analog output is configurable for stereo or dual‑mono signals. This HDCP 2.3‑compliant audio de‑embedder includes two HDMI outputs and supports data rates up to 40.1 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats. It is equipped with integration-friendly capabilities such as input cable equalization and advanced EDID management. Extron EDID Minder® Plus delivers support for additional memory blocks needed for advanced display features. From presentation spaces to esports venues, the DA2 HD 8K AE is the ideal audio de‑embedder for HDMI source signals sent to two displays.
Streamlined Integration
To enhance and simplify integration, the DA2 HD 8K AE offers many integrator-friendly features beyond LPCM two-channel audio de‑embedding. Input cable equalization restores and reshapes incoming HDMI signals, compensating for weak source signals or signal loss from a long input cable and reducing the need for additional signal conditioning equipment. Color bit depth is automatically adjusted based on the display EDID, which prevents color compatibility conflicts between the source and the displays. EDID Minder Plus enables setting the video input EDID, capturing EDID from connected displays, and uploading custom EDID files. To reliably display and distribute 5K and 21:9 aspect ratio content, this Extron technology also supports additional memory blocks for displays that convey advanced features via both EDID and DisplayID. It facilitates proper management of the extended EDID information. Key Minder® ensures simultaneous distribution of HDCP-encrypted content.
The DA2 HD 8K AE features a configurable analog audio output that can be set for either two‑channel analog audio or dual‑mono. Original embedded audio is maintained on both HDMI outputs for system flexibility. These outputs can be individually muted, enabling content to be viewed on a local monitor before appearing on the main presentation display. Each HDMI output also provides +5 VDC, 250 mA for powering external peripheral devices, such as the Extron HD Pro Plenum Series of active, hybrid optical-copper cables for transmission of HDMI digital video and audio signals over longer cable runs.
Housed in a 1" (2.5 cm) high, quarter rack width metal enclosure, the DA2 HD 8K AE can be mounted in a rack or discreetly installed beneath a desk. It includes an external, universal power supply for worldwide power compatibility.
Features
- De-embeds two-channel analog audio from an HDMI signal — The DA2 HD 8K AE offers design flexibility, enabling separate two-channel analog audio or dual mono audio output while maintaining the embedded HDMI audio.
- Supports computer and video resolutions up to 8K/60
- Supports ultra-wide aspect ratios, including 21:9 and 5K
- Supported HDMI 2.1 specification features include data rates up to 40.1 Gbps, HDR, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
- Support for HDR – High Dynamic Range video — Enables greater contrast range and wider color gamut by providing the necessary video bandwidth, color depth, and metadata interchange capability for HDR video.
- HDCP 2.3 compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
- Automatic input cable equalization — Actively conditions incoming HDMI signals to compensate for signal loss when using long cables, low‑quality cables, or source devices with poor signal output.
- Comprehensive EDID management — Use PCS software to access EDID Minder Plus for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 3.0 software is available for advanced EDID editing and creating custom EDID files.
- EDID Minder® Plus automatically manages EDID communication between connected devices — EDID Minder Plus supports additional memory blocks for displays that convey advanced features via both EDID and DisplayID for proper management of the extended EDID information required to reliably display and distribute 5K and 21:9 aspect ratio content.
- Key Minder® continuously verifies HDCP compliance — Key Minder authenticates and maintains continuous HDCP‑encryption between all input and output devices to enable simultaneous distribution of a single source signal to multiple displays.
- Selectable output muting — Provides the capability to mute any combination of video, audio, and/or sync outputs at any time. This allows content to be viewed on a local monitor prior to appearing on the main presentation display.
- User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
- HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non‑compliant display — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
- Automatic color bit depth management — The distribution amplifier automatically adjusts color bit depth based on the display EDID, preventing color compatibility conflicts between source and displays.
- HDMI to DVI Interface Format Correction — Automatically reformats HDMI source signals for output to a connected DVI display.
- HDCP authentication and signal presence LED indicators — Front panel LED indicators for signal presence and HDCP authentication provide real time feedback and monitoring of key performance parameters.
- Provides +5 VDC, 250 mA power on each output for external peripheral devices
- Front panel USB‑C® configuration port — Enables easy configuration without having to access the rear panel.
- Easy setup and commissioning with Extron’s PCS – Product Configuration Software — Conveniently configure multiple products using a single software application.
- 1” (2.5 cm) high, quarter rack width metal enclosure
- Includes LockIt® Plus cable lacing brackets — Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
- Includes Extron Everlast® Power Supply — Provides worldwide power compatibility with high reliability and low power consumption for reduced operating costs.
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
