DM-NAX-BTIO-1G – DM NAX® Audio-over-IP Wall Plate with Bluetooth® Audio Support, Analog Audio Input and Output, 1‑Gang
The DM‑NAX‑BTIO‑1G is a single-gang, audio-over-IP wall plate that adds Bluetooth® wireless audio support to a DM NAX® audio distribution network.
| Audio | |
| Input Signal Types | Unbalanced stereo analog line-level; Stereo Bluetooth wireless; DM NAX/AES67 audio-over-IP |
| Output Signal Types | Unbalanced stereo analog line-level; Stereo Bluetooth wireless; DM NAX/AES67 audio-over-IP |
| Source Compensation | ±10.0 dB per input |
| Input Monitoring | Source Signal Detect |
| Frequency Response (at line-level output) | 20 Hz to 20 kHz ±0.5 dB |
| THD+N (at line-level output) | 0.005% @ 1 kHz, max output |
| S/N Ratio (at line-level output) | From line-level input: 108 dB, 20 Hz to 20 kHz, A‑weighted; From digital input: 111 dB, 20 Hz to 20 kHz, A‑weighted |
| Balance Control | Left/right adjustable |
| Communications | |
| Ethernet | For control and PoE, AoIP, and/or console, 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP |
| Bluetooth Receive | Bluetooth 5.2 sink device, recalls up to seven previously paired devices, persistent or non persistent pairing, exclusive, interrupting, or temporary connection modes; Maximum Simultaneous Connections: 1; Exclusive Connection Mode: Remembers up to 7 paired devices; Interrupt Connection Mode: Remembers up to 6 paired devices; Temporary Connection Mode: Remembers 1 paired device; Connection Range: 30 to 60 ft (9 to 18 m) typical, line-of-sight |
| Bluetooth Transmit | Bluetooth 5.2 source device, recalls up to seven previously paired devices, persistent or non persistent pairing, exclusive, interrupting, or temporary connection modes; Maximum Simultaneous Connections: 1; Connection Range: 30 to 60 ft (9 to 18 m) typical, line-of-sight |
| Connectors | |
| IN | (1) 3.5 mm connector, female TRS; Unbalanced line-level audio input; Maximum input level: 2Vrms; Input Impedance: 10 kΩ |
| OUT | (1) 3.5 mm connector, female TRS; Unbalanced line-level audio output; Maximum output level: 2Vrms; Channel separation: 80 dB @ 1 kHz; Output Impedance: 100 Ω |
| G | (1) 6-32 screw; Chassis ground lug |
| ETHERNET PoE | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port |
| Controls and Indicators | |
| Front Panel Display | (1) OLED screen, 128 x 64 dot matrix Height (active area): 0.43 in. (11 mm) Width (active area): 0.86 in. (22 mm) Displays metadata, menus, and volume feedback |
| Menu | (1) Push button Used to enter the front panel menu and select menu items |
| Bluetooth | (1) Push button Used to initiate Bluetooth pairing |
| UP and DOWN Arrows | (2) Push buttons Used to navigate menus and control volume |
| ETHERNET PoE | Left amber LED indicates 1000 Mb link status; Left green LED indicates 100 Mb link status; Flashing right amber LED indicates Ethernet activity |
| SETUP | (1) Push button: Used for factory reset procedures; (1) LED, illuminates red when the button is pressed, flashes red when reset has been initiated |
| Power | |
| PoE | IEEE 802.3af Class 0 (12.95 W) compliant; Compatible with IEEE 802.3af compliant Ethernet switch or third-party PoE compliant PSE |
| Power Consumption | 3.5 W |
| Environmental | |
| Temperature | 32° to 95° F (0° to 35° C) |
| Humidity | 10% to 95% RH (noncondensing) |
| Heat Dissipation | 11.95 BTU/hr |
| Construction | |
| Chassis | Metal, black and silver finish, vented sides |
| Mounting | Mountable on the following: 1-gang U.S. electrical box or plaster ring (not included), 3.5 in. (89 mm) electrical box depth recommended; Rack rail |
| Dimensions | |
| Height | 4.12 in. (105 mm) |
| Width | 1.76 in. (45 mm) |
| Depth | 2.25 in. (57 mm) |
| Weight | |
| 4.8 oz. (136 g) | |
| Compliance | |
| Regulatory Model: M202050005 IC, FCC Part 15 Class B digital device | |

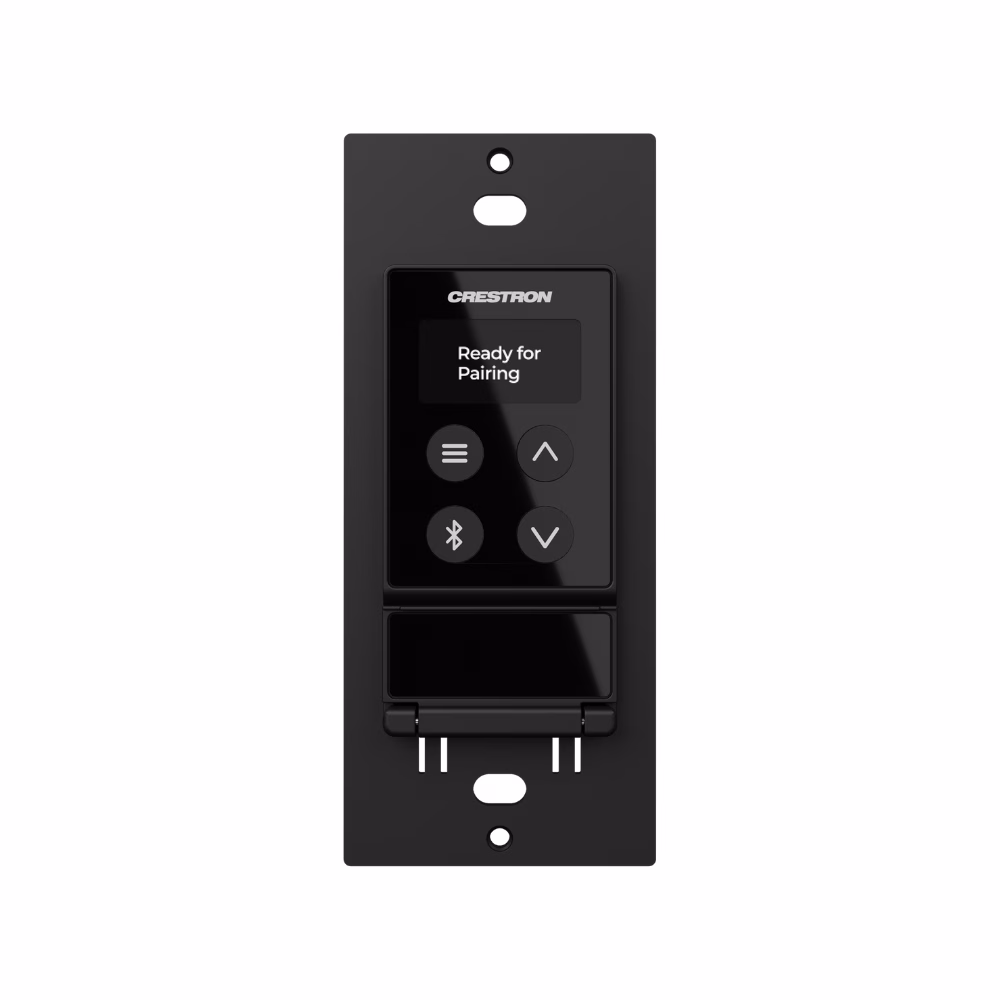

The DM‑NAX‑BTIO‑1G is a DM NAX® encoder and decoder with support for Bluetooth wireless and analog line-level wired audio input and output, housed in a single-gang wall plate form factor. The front panel features an OLED display and four buttons for device pairing and menu navigation. Two 1/8 in. (3.5 mm) TRS connectors for stereo unbalanced analog line-level audio input and output are concealed under a front panel door. The rear panel of the wall plate features an Ethernet connection for PoE, Audio over IP (AoIP), and control.
DM NAX is built on the AES67 standards with additional ease of configuration via a web interface, SIMPL Windows, C#, and/or a RESTful API. It is compatible with DM NVX through the AES67 secondary audio stream and also with third-party AES67 solutions and Dante via the compatibility mode enabled through Dante Controller.
Bluetooth Wireless Connectivity
Bluetooth wireless audio input and output support is built-in to the DM‑NAX‑BTIO‑1G. In transmitter mode, the wall plate transmits an audio signal to a sink device such as wireless headphones, a soundbar, or a freestanding speaker.
In receiver mode, a smart phone or other source device transmits an audio signal to the wall plate. Metadata for the audio signal is displayed on the front panel, and up to seven previous source device connections can be recalled. This audio signal can also be made available to other devices on the network as a DM NAX audio-over-IP stream.
Audio-over-IP
DM NAX takes audio distribution to a whole new level by putting it on the network. The DM‑NAX‑BTIO‑1G sends and receives DM NAX and AES67 encoded audio over a standard IP network. A single DM NAX system can handle audio distribution between 32 DM NAX devices and supports up to 256 audio output zones. DM NAX devices can seamlessly pull and distribute the audio from DM NVX sources.
Encoder and Decoder Functionality
The DM‑NAX‑BTIO‑1G can operate as a network AV encoder and decoder. The local input sources on the wall plate can be sent as AoIP streams to DM NAX, Dante, or AES67 capable devices. Simultaneously, the DM‑NAX‑BTIO‑1G can receive AoIP streams from these same devices and decode them for local output.
NOTE: As a decoder, the DM-NAX-BTIO-1G can only locally output audio via the line-level output. The DM-NAX-BTIO-1G does not support local output via Bluetooth wireless audio.
Front Panel Controls and Display
The DM‑NAX‑BTIO‑1G features four front panel push buttons and a 128 x 64 dot matrix OLED display. The push buttons allow local volume control and Bluetooth pairing, with volume feedback and pairing status reflected in real time on the display. Metadata for Bluetooth media and basic configuration menus are also shown on the display.
Both the display and push buttons can be disabled via the configuration web interface or programming for applications where a more discreet or secure installation is required.
Key Features
- Built-in Bluetooth® wireless audio input support
- Front panel OLED display provides metadata readout and device setup menus
- Single-gang U.S. wall box installation
- Power over Ethernet (PoE) network powered
- Stereo unbalanced analog line-level audio input and output via 3.5 mm TRS connectors
- Mountable in a standard US electrical box or on a rack rail via included hardware
- Connects directly to a managed network to route to or from other DM NAX® and DM NVX® devices
- Interoperable with Dante® audio networking devices via AES67 compatibility
- Streamlined configuration through front panel push buttons and a web interface
- Seamless Crestron system integration with SIMPL Windows programming
