DMP 64 – Digital Matrix Processor
6×4 ProDSP™ Digital Matrix Processor
Key Features
- 6×4 mic/line audio matrix mixer
- ProDSP™ 32/64-bit floating point signal processing
- Studio grade 24-bit/48 kHz analog-to-digital and digital-to-analog converters
- Fixed, low latency DSP processing
- DSP Configurator™ Software
| Specification | Detail |
|---|---|
| Audio Inputs (6×) | Mic/line, balanced/unbalanced; >10 kΩ impedance; phantom power; gain −60 dBu to +4 dBu; max +24 dBu balanced |
| Audio Outputs (4×) | Balanced/unbalanced, >+21 dBu balanced max output; gain error ±0.1 dB/channel |
| Frequency Response | 20 Hz–20 kHz, ±0.1 dB |
| THD+N | < 0.01 % @ 1 kHz, full output |
| Signal‑to‑Noise Ratio | >105 dB, unweighted |
| Crosstalk | <−90 dB @ 1 kHz (full load) |
| CMRR | >70 dB @ 1 kHz typical |
| DSP Engine | ProDSP™, 32/64-bit floating point, low latency processing |

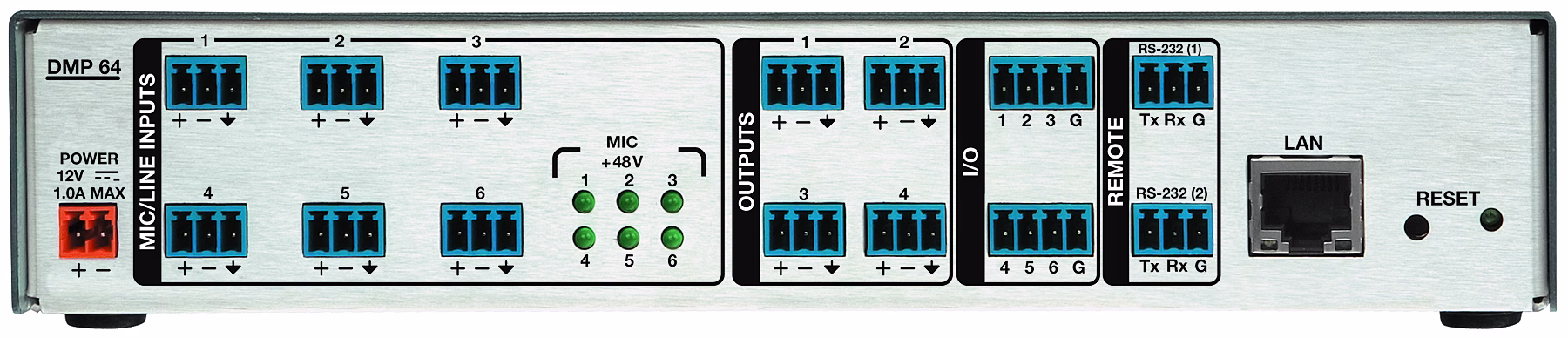

| Control Ports | RS‑232, USB mini‑B, Ethernet, digital I/O (6 pins) |
| Digital I/O | 6 programmable ports (triggering, muting, preset actions) |
| Power Supply | External PSU: 100–240 VAC to 12 VDC @ ~1.5 A (18 W) |
| Power Consumption | ~13.5 W device; ~16.2 W including PSU (≈46 BTU/hr) |
| Cooling | Convection, fanless design |
| Dimensions | 1.7″ H × 8.75″ W × 9.5″ D (43 × 22.2 × 24.1 cm) (excluding connectors) |
| Weight | ~0.9 kg (1.9 lb) |
| Certifications | CE, UL/c‑UL, FCC Class A, ICES, VCCI, C‑Tick, RoHS, WEEE, KC |
| Warranty | 3 years parts & labor (PS: 7 years) |
The Extron DMP 64 is a 6×4 digital matrix processor tailored for installations like boardrooms, classrooms, and presentation spaces. Powered by Extron’s ProDSP™ 32/64‑bit floating point engine, it delivers studio-grade 24‑bit/48 kHz analog-to-digital and digital-to-analog conversion with fixed, low latency processing.
It features intuitive control via the DSP Configurator™ Software, allowing real-time adjustments to routing, signal processing (dynamics, delay, filters, ducking, loudness, feedback suppression), and matrix mixing in a half‑rack (1U) enclosure.
