EBP 110 MK – eBUS Button Panel with 10 Buttons – MK
Key Features
- Fully customizable button panel integrates easily with an Extron Pro Series control system
- Ten backlit, soft-touch buttons that can be customized using Extron’s Custom Button Builder
- Two eBUS® ports allow for quick system expansion and upgrades
- Compatible with all Extron IPCP Pro control processors
- Use a single button panel or combine multiple button panels to accommodate a broad variety of system designs
- eBUS button panels connect to the control processor and each other using a single cable that carries both power and communication
| EBP 110 MK | |||
| eBUS control interface | |||
|---|---|---|---|
| eBUS control ports | (2) 3.5 mm captive screw connectors, 4 pole | ||
| eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = – signal; G = ground | ||
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable | ||
| Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the eBUS® Button Panel EU and MK Series Setup Guide or eBUS Technology Reference Guide for details. | ||
| Software and control options | |||
| Configuration software | Global Configurator Plus and Professional | ||
| Programming software | Global scripter | ||
| Control apps | Extron Control | ||
| Utilities | Toolbelt | ||
| General | |||
| Power | 12 VDC (Power is supplied by an Extron IPCP Pro series control processor or optional power supply). | ||
| Power consumption | 1.0 W | ||
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Thermal dissipation | 3.0 BTU/hr | ||
| Mounting | |||
| Rack mount | No | ||
| Furniture or wall mount | Yes, mounts into one-gang MK boxes and enclosures for use in the UK, Middle East, Singapore and other regions using MK-type enclosure. | ||
| Enclosure type | Plastic faceplate and high-impact plastic rear enclosure | ||
| Enclosure dimensions | |||
| Faceplate | 3.4″ H x 3.4″ W x 0.4″ D (8.6 cm H x 8.6 cm W x 1.0 cm D) | ||
| Device | 2.2″ H x 2.2″ W x 1.1″ D (5.5 cm H x 5.5 cm W x 2.9 cm D) 2.2″ H x 2.2″ W x 1.6″ D (5.5 cm H x 5.5 cm W x 4.0 cm D) including captive screw connectors (Depth includes faceplate and buttons. Allow at least 1.16″ [2.95 cm] depth in the wall or furniture for cables.) | ||
 | |||
| Product weight | 0.2 lb (0.1 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | |||
| Safety | CE, c-UL, UL | ||
| EMI/EMC | CE, C-Tick, FCC Class A, ICES, VCCI class A | ||
| Environmental | Complies with the appropriate requirements of RoHS, WEEE | ||
| Accessibility | Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d). | ||
| Product warranty | 3 years parts and labor | ||
| |||
| |||

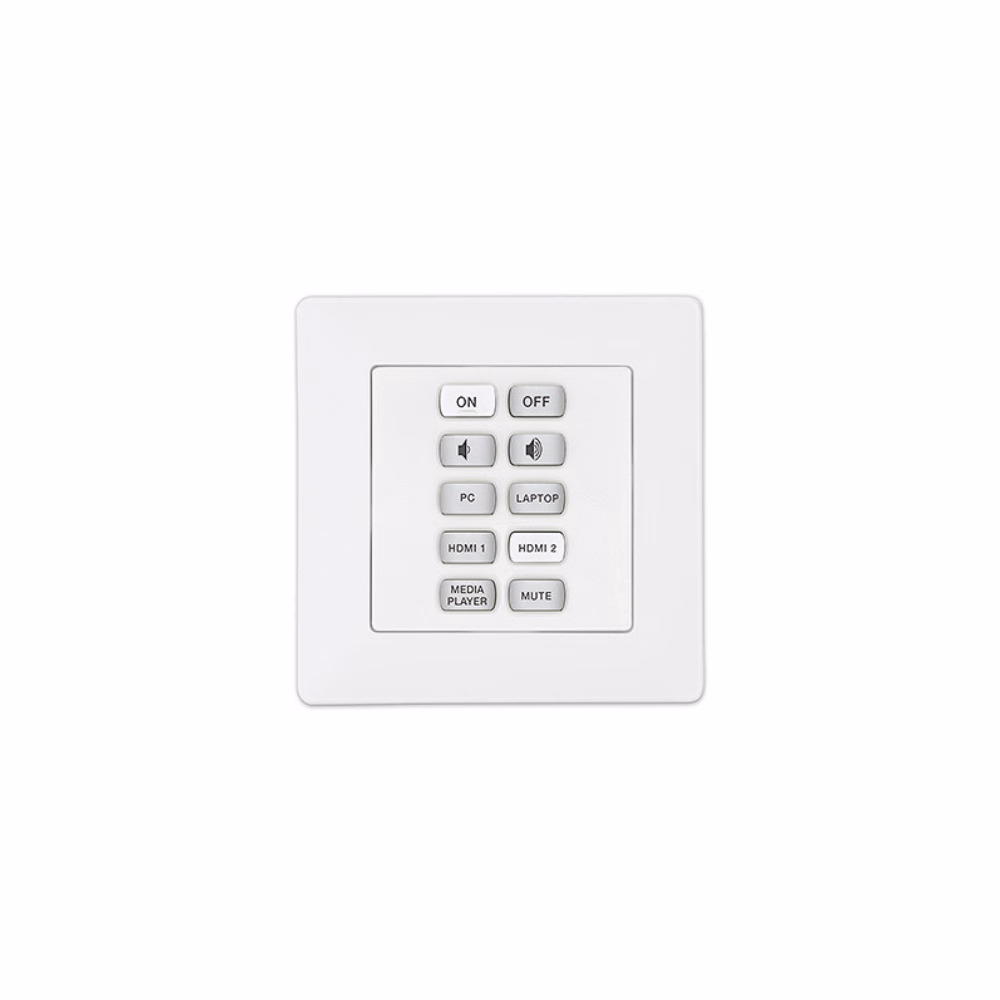

The Extron EBP 110 MK eBUS® Button Panel is a fully-customizable user interface for Extron eBUS-enabled control systems. This easy-to-use interface connects to an IPCP Pro control processor to perform a wide variety of AV functions, such as display On/Off, input switching, volume control, and much more. The EBP 110 MK offers ten customizable, soft-touch buttons that are backlit for low-light environments. In addition, two eBUS ports are available for easy system expansion. The EBP 110 MK mounts into one-gang MK boxes and enclosures for use in the UK, Middle East, Singapore and other regions using MK-type enclosures.
Extron’s integration-friendly eBUS technology is based on a unique digital bus architecture that allows for easy control system expansion, greater design options, and future upgrades. As with our TouchLink Pro touchpanels, eBUS button panels are designed for use with any Extron IPCP Pro Series control processor. A single eBUS button panel can be used as the AV control interface for a smaller system or multiple button panels and touchpanels may be combined when a more elaborate control system is required.
eBUS button panels come in industry-standard form factors and multiple units may be linked together by a single cable that carries both power and communication. Since they have the same physical appearance as Extron’s broad range of MediaLink controllers, eBUS button panels can be used alongside them throughout a facility while preserving a consistent look and user experience. Buttons can be easily customized using the online Custom Button Builder application.
Features
- Fully customizable button panel integrates easily with an Extron Pro Series control system
- Ten backlit, soft-touch buttons that can be customized using Extron's Custom Button Builder
- Two eBUS® ports allow for quick system expansion and upgrades
- Compatible with all Extron IPCP Pro control processors
- Use a single button panel or combine multiple button panels to accommodate a broad variety of system designs
- eBUS button panels connect to the control processor and each other using a single cable that carries both power and communication
- DIP switches are used to set unique eBUS device addresses and minimize setup time
- eBUS diagnostic LED provides connection status for troubleshooting
- Built-in speaker provides audible feedback for button presses
- Removable captive screw connectors allow for quick installation
- Reset Button — Allows firmware to be reset to original factory settings.
- Supports the Extron Control App
- Designed to mount into one-gang MK boxes and enclosures for use in the UK, Middle East, Singapore and other regions using MK-type enclosure
- Includes white MK wall frame and mounting bracket
