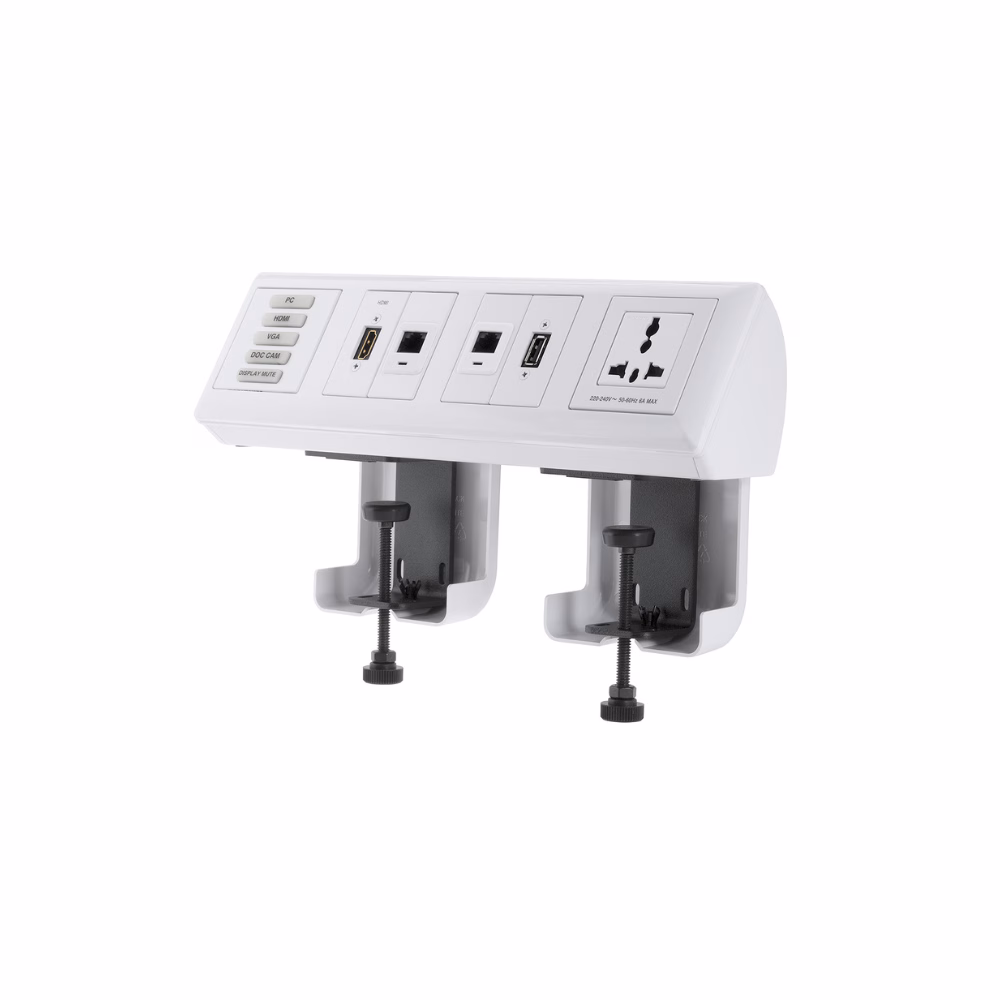

Flex55 100 Mounting Kit Series – Mounting Kits for Flex55
Key Features
- Accommodates Extron Flex55™ and EU modules
- Accommodates one full-size or two half-size Flex55 or EU module per opening
- New Flex55 112 mounting kit is compatible with double-size one-piece design products such as the Flex55 AC+USB 130 US power module or a combination of up to two full-size or half-size Flex55 and/or EU modules
- Available in a one- to four-opening frame
- Mounting hardware included
| Flex55 100 Mounting Kit Series | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to Extron Flex55 enclosures, and select EU junction boxes. Accommodates Extron Flex55 modules and select EU modules. | ||
| Materials | Metal mounting bracket, high impact plastic frame | ||
| Dimensions | |||
| Frame | |||
| Flex55 101 | 3.17″ H x 3.17″ W x 0.40″ D (1 gang) (80.5 mm H x 80.5 mm W x 10.1 mm D) | ||
| Flex55 102 | 3.17″ H x 5.96″ W x 0.40″ D (2 gang) (80.5 mm H x 151.5 mm W x 10.1 mm D) | ||
| Flex55 103 | 3.17″ H x 8.76″ W x 0.40″ D (3 gang) (80.5 mm H x 222.5 mm W x 10.1 mm D) | ||
| Flex55 104 | 3.17″ H x 11.56″ W x 0.40″ D (4 gang) (80.5 mm H x 293.5 mm W x 10.1 mm D) | ||
| Flex55 112 | 3.17″ H x 5.96″ W x 0.40″ D (80.5 mm H x 151.5 mm W x 10.1 mm D) | ||
 | |||
 | |||
| Product weight | |||
| Flex55 101 | 0.1 lbs (0.1 kg) | ||
| Flex55 102 | 0.2 lbs (0.1 kg) | ||
| Flex55 103 | 0.3 lbs (0.2 kg) | ||
| Flex55 104 | 0.4 lbs (0.2 kg) | ||
| Flex55 112 | 0.2 lbs (0.1 kg) | ||
| Regulatory compliance | |||
| Safety | CE | ||
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. | ||
| Product warranty | 3 years parts and labor | ||
| |||
Extron Flex55 100 Mounting Kits install onto Flex55™ enclosures and EU junction boxes. Each kit includes a trim frame and mounting bracket for a one- to four-gang EU junction box or Flex55 enclosure, and each opening holds one full-size or two half-size Flex55 or EU modules. They are compatible with EU modules such as Extron DTP T EU 4K DTP transmitters and NBP Network Button Panels. Flex55 112 is a double-size single-opening mounting kit compatible with products that include the Flex55 AC+USB 130 US power module. This model accepts up to four half-size modules or a mix of up to two full-size modules. Flex55 112 is directly mountable into walls or furniture when a Flex55 or EU junction box is not required. Flex55 100 Mounting Kits are available in a black and/or white finish.
Features
- Accommodates Extron Flex55™ and EU modules — Compatible with EU modules such as Extron DTP T EU 4K DTP transmitters and NBP Network Button Panels.
- Mounts on EWB 212 External Wall Box, SMB 210 Series Surface Mount Boxes, or EU junction boxes
- Accommodates one full-size or two half-size Flex55 or EU module per opening
- New Flex55 112 mounting kit is compatible with double-size one-piece design products such as the Flex55 AC+USB 130 US power module or a combination of up to two full-size or half-size Flex55 and/or EU modules
- Available in a one- to four-opening frame
- Mounting hardware included
- Connectivity Builder is available at www.extron.com/connectivitybuilder — Intuitive online tool for mount and connectivity selection, and pricing.
- Available in black and/or white
