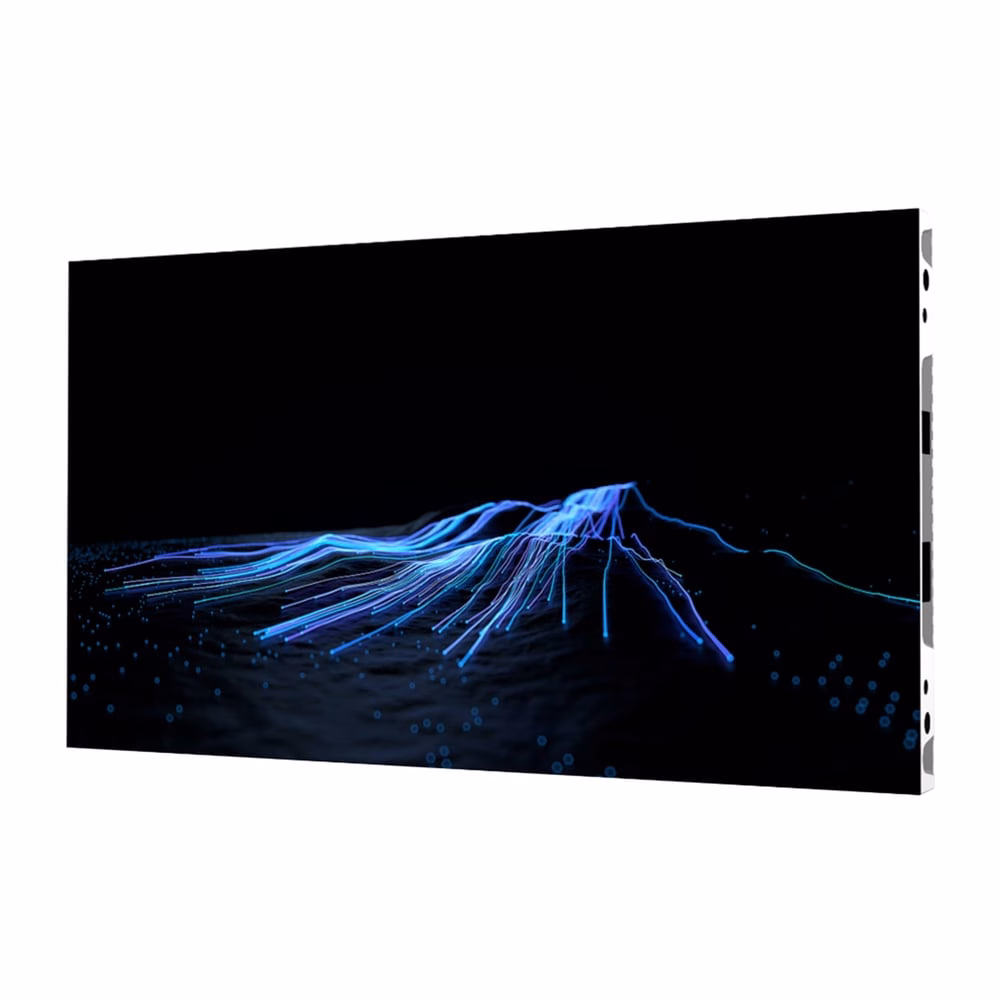

HTJ Series – HTJ Series – Indoor LED Display
Perfect for any corporate environment where space is a premium, the HIP series 16:9 LED wall delivers seamless panel integration and ultra-high brightness. Give your staff and clients the most memorable visual LED experience.
Pixel Pitch: P1.25
- LED Package: Flip-chip COB (1 red, 1 green, 1 blue)
- Thickness (mm) (Excluding protrusions part): 31
- Thickness (inch): 1.22
- Module Resolution: 120 x 135
- Module Size (W x H/mm): 150 x 168.75
- Module Size (W x H/inch): 5.91 x 6.64
- Cabinet Dimension (W x H/mm): 600 x 337.5
- Cabinet Dimension (W x H/inch): 23.62 x 13.29
- Cabinet Resolution: 480 x 270
- Cabinet Weight (kg/panel): ≤4.1
- Cabinet Weight (lbs/panel): ≤9.04
- Cabinet Materials: Die-cast Aluminium
- Grey Level: 14 bit
- Colour Gamut: >113% DCI-P3
- Brightness (max./peak.): 1,000nits / 1,600 nits
- Contrast Ratio (typ. / peak.): 25,000:1@10lux / 40,000:1@10lux
- Connectivity: HDMI 2.0 (up to 4K@60Hz)
- Maintenance: Front Access
- Max Power Consumption (W/sqm): ≤288@1,000nits
- Avg Power Consumption (W/sqm): ≤98
- Viewing Angle (H/V)°: 165 / 150
- Brightness Uniformity: 98%
- Colour Uniformity: +0.003 Cx, Cy
- Colour Temperature: 6500K
- Refresh Rate (Hz): 3,840 Hz (typ.)
- Operating Environment: From 0~40°C
- Relative Humidity: 10~70%RH
- Lifetime(typ.): 100,000 Hrs
Ultra Picture Quality Chip
Relying on Hisense’s super picture quality chip, supported by powerful algorithms, colour enhancement, multi-grayscale correction, MEMC, HDR, SR super resolution four major picture quality technologies, the picture quality is more detailed and vivid.
Automatic PQ Adjustment
Hisense HTJ series, the spare lamp board can be directly replaced, intelligent reading lamp board data, automatically complete the colour correction
Black Coating Technology
COB products are sealed with black epoxy resin on the surface, which guarantees a uniform color.
Extremely Reliable
Flip-chip COB LED with no solder lines and electrodes directly welded to the PCB. No need to worry about the problem of easy breakage of the solder wire, it’s more reliable.
Extremely Reliable
Flip-chip COB LED with no solder lines and electrodes directly welded to the PCB. No need to worry about the problem of easy breakage of the solder wire, it’s more reliable.
Quick Installation and Easy Maintenance
Full front installation, maintenance, save the installation space. Also supporting multiple installations, wall-mounting, hanging, which can meet the demands of various environments.
Better Protection
Compared to SMD packaging, COB is one-piece potting sealing to protect important electronic devices. The display screen has the advantages of moisture-proof and anti-static, you can directly wipe the screen with water.
Large Screen Splicing
Perfect 16:9 display ratio and can be spliced into standard resolution of 2K/4K.
