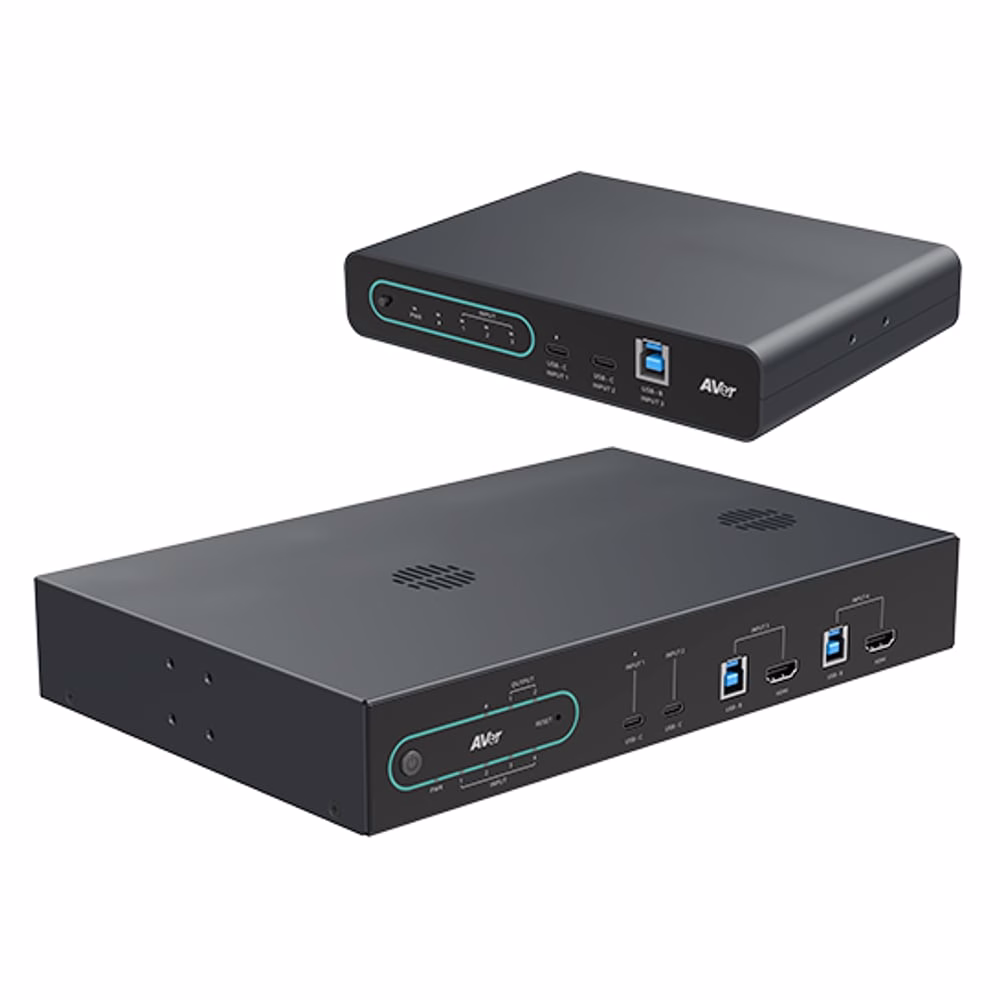

HUB35-EXT35
Level up collaboration with the AVer HUB35-EXT35, a 4K BYOM Matrix Switcher Kit. For corporate meetings, hybrid learning, and live events, it offers USB-C connectivity for 4K video, audio, and high-speed power delivery. With four to five inputs, dual-screen support, and the AVer CP10 G2 touch control, enjoy dual AVer camera switching for dynamic, multi-angle video experiences. Equipped with a 4K USB extender for long-distance peripheral connectivity, it’s ideal for large and extra-large spaces.
Host
- Input 1: USB Type-C x 1 (PD Charging, 60W Max.)
- Input 2: USB Type-C x 1
- Input 3: USB Type-B x 1
- Input 4: USB Type-B x 1; HDMI x 1
- USB-C Charging: Yes
USB Devices
- Connections: USB Type-A x 2
- USB Pass-Through: Yes
HDMI Display Outputs
- Output: 2
- HDMI Display Output Modes: 2
- Audio HDMI: Yes
Video
- Resolution: Up to 4K Ultra HD
- Signal Type: DP Alt Mode, HDMI 2.0
- HDMI CEC: Yes
- Color Space: RGB, YCbCr
- Input Resolution: Up to 4K Ultra HD
- Input Signal Type: DP Alt Mode, USB Type-B
Audio
- Transmit Mode: Audio Pass-Through from Input to Output
- Format: HDMI 2.0
Control Interfaces
- Ethernet: 1
- RS-232: 1
- Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App
Link
- Range: USB Type-C: 100 m (328 ft.)
- Medium: CAT6a U/FTP
General
- Power Requirement: AC 100 - 240V to DC 24V/7.5A
- Power Consumption: 126W
- Powering: External 180W Power Supply
- Dimensions (W x H x D): 164.0 x 30.0 x 118.0 mm
- Net Weight: 0.66 (±0.1) Kg
- Security: Kensington Slot
- Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80%
- Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
- Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
LED Indicators
- Power/Status LED: - Orange: Standby - Green: Operating - Green (Flashing): Firmware Upgrading
- USB Type-C Charging/Status LED: - Green: Charging
- Input 1/2/3/4: - Green: Connected
- Output 1/2: - Green: Connected
- Input 1/2/3: - Green: Connected
Level up collaboration with the AVer HUB35-EXT35, a 4K BYOM Matrix Switcher Kit. For corporate meetings, hybrid learning, and live events, it offers USB-C connectivity for 4K video, audio, and high-speed power delivery. With four to five inputs, dual-screen support, and the AVer CP10 G2 touch control, enjoy dual AVer camera switching for dynamic, multi-angle video experiences. Equipped with a 4K USB extender for long-distance peripheral connectivity, it's ideal for large and extra-large spaces.
