Installation Routing Templates – For Cable Cubby and TouchLink Enclosures
Key Features
- Product-specific reusable routing templates for Cable Cubby®Series, Cable Cubby F55, and select TouchLink® enclosures
- Ensures accurate and consistent enclosure openings in tabletops, desks, and other furniture surfaces
- Industrial-grade aluminum construction
| Routing Templates for Series/2 Cable Cubby Enclosures | |||
| General | |||
|---|---|---|---|
| Material | Aluminum | ||
| Dimensions | |||
| Cable Cubby 1200 Routing Template | 10.0″ L x 16.0″ W (25.4 cm L x 40.6 cm W) | ||
 | |||
| Cable Cubby 1400 Routing Template | 12.0″ L x 16.0″ W (30.5 cm L x 40.6 cm W) | ||
 | |||
| Cable Cubby 500 Routing Template | 12.0″ L x 12.0″ W (30.5 cm L x 30.5 cm W) | ||
 | |||
| Cable Cubby 700 and 500 CCB Routing Template | 12.0″ L x 14.0″ W (30.5 cm L x 35.6 cm W) | ||
 | |||

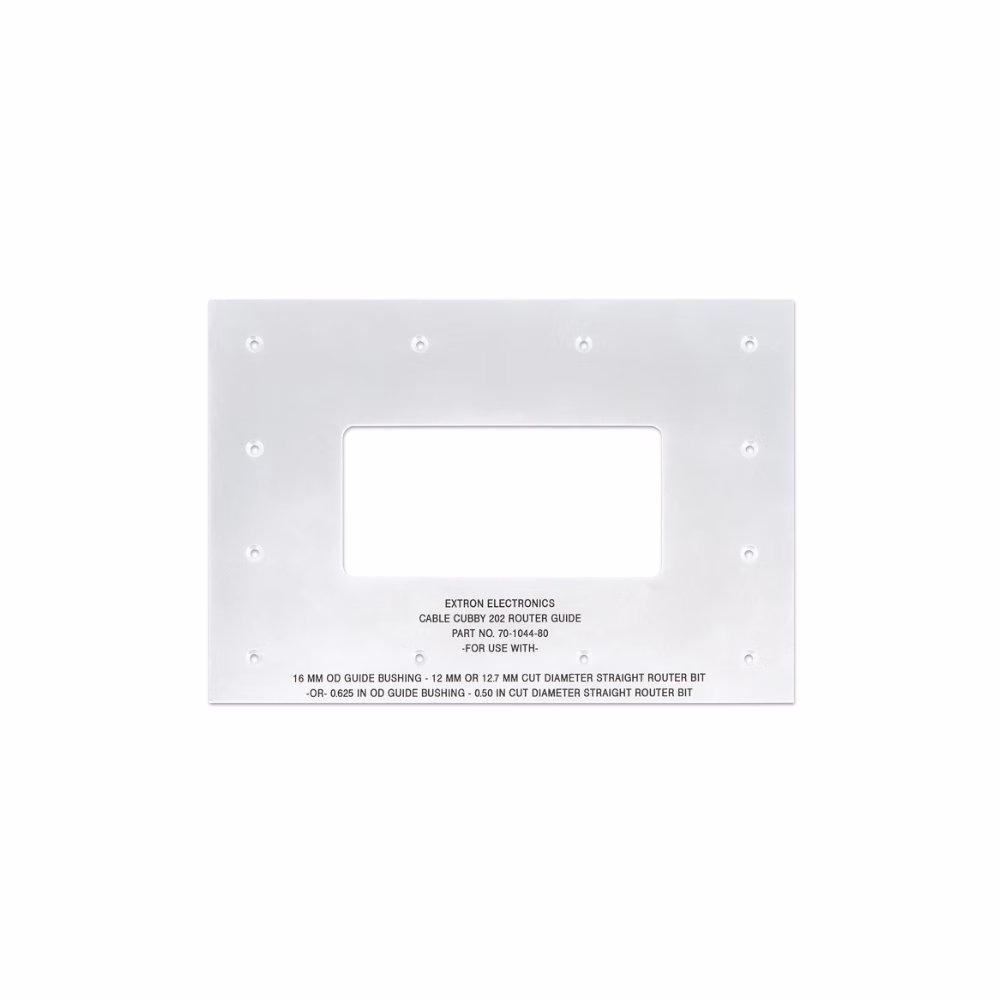

| Cable Cubby 202 Routing Template | 9.0″ L x 13.0″ W (22.9 cm L x 33.0 cm W) | ||
 | |||
| Product weight | |||
| Cable Cubby 1200 Routing Template | 2.3 lbs (1.0 kg) | ||
| Cable Cubby 1400 Routing Template | 2.3 lbs (1.0 kg) | ||
| Cable Cubby 500 Routing Template | 2.3 lbs (1.0 kg) | ||
| Cable Cubby 700 and 500 CCB Routing Template | 2.3 lbs (1.0 kg) | ||
| Cable Cubby 202 Routing Template | 2.3 lbs (1.0 kg) | ||
| Shipping weight | |||
| Cable Cubby 1200 Routing Template | 3 lbs (2 kg) | ||
| Cable Cubby 1400 Routing Template | 3 lbs (2 kg) | ||
| Cable Cubby 500 Routing Template | 3 lbs (2 kg) | ||
| Cable Cubby 700 and 500 CCB Routing Template | 3 lbs (2 kg) | ||
| Cable Cubby 202 Routing Template | 3 lbs (2 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Product warranty | 3 years parts and labor | ||
| |||
The Extron Installation Routing Templates for Cable Cubby® Series, Cable Cubby F55, and select TouchLink® enclosures are reusable routing templates that help ensure proper installation. Extron strongly encourages the use of product-specific templates when preparing the mounting surface to avoid needless and costly mistakes.
Features
- Product-specific reusable routing templates for Cable Cubby®Series, Cable Cubby F55, and select TouchLink® enclosures
- Ensures accurate and consistent enclosure openings in tabletops, desks, and other furniture surfaces
- Industrial-grade aluminum construction
