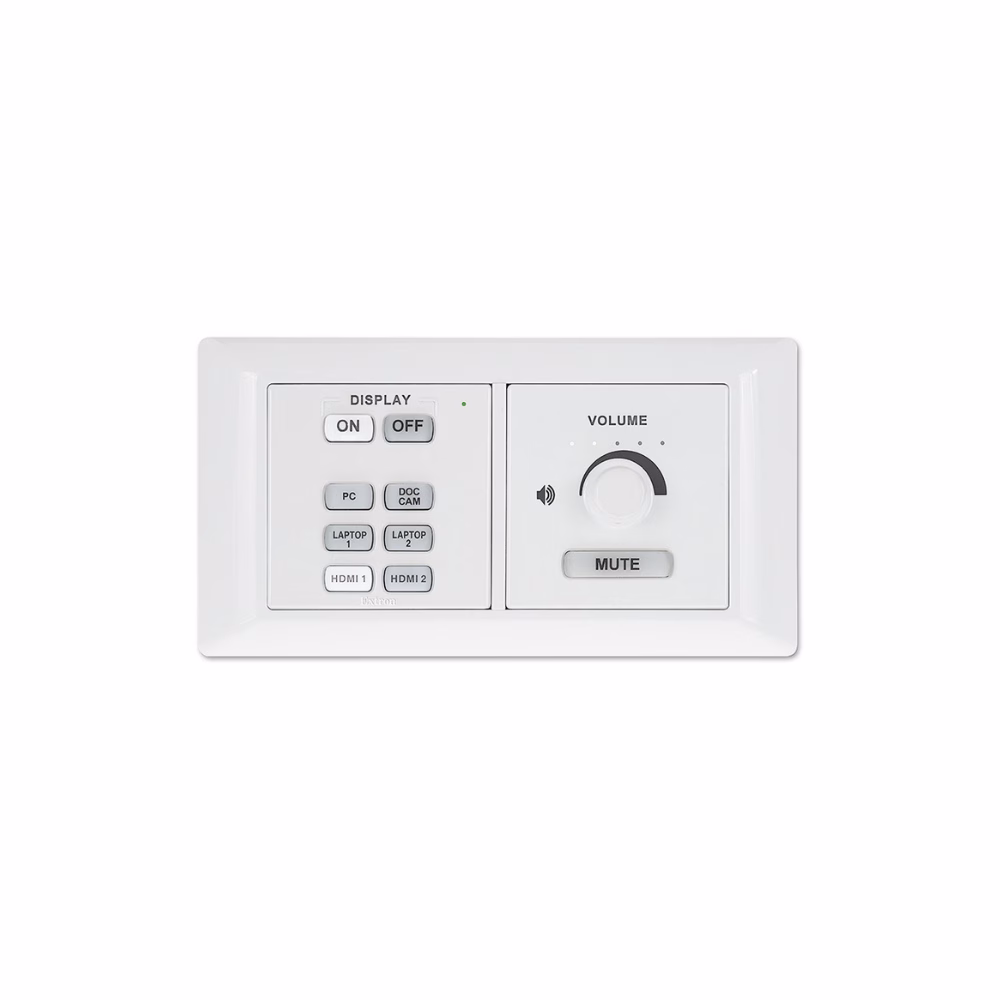

The MLC Plus 84 EU is an easy-to-use, two-gang Ethernet controller that controls common AV functions such as power, input selection, and volume. As part of the new MediaLink Plus Series, the MLC Plus 84 EU is designed with more powerful features and enhanced security. It has nine backlit soft touch buttons, a volume control knob, and a variety of ports and inputs, including a remote volume control port for use with select Extron amplifiers. It is Extron’s first pushbutton controller to support Ethernet control of a wide range of AV devices. Power over Ethernet allows the controller to receive power and communication over a single Ethernet cable. The MLC Plus 84 EU mounts in a two gang size European junction box.

The MLC Plus 84 EU is configured using Extron Global Configurator Plus or Global Configurator Professional software. It also integrates seamlessly with Extron’s award-winning GlobalViewer® Enterprise software for complete AV resource monitoring, management, and control over a computer network. The MediaLink Plus family of controllers supports popular Web browsers and the Extron Control App.

Features

• Manage, monitor, and control AV devices using a standard Ethernet network
• Fully configurable using Global Configurator Plus or Global Configurator Professional
• Designed to mount in a two-gang European junction box
• Two bidirectional RS-232 ports — Captive screw serial ports that can communicate with two RS-232 serially controlled devices.
• Two relays for controlling room functions — Enables control of lighting, screen settings, and other device functions.
• One IR port for connecting up to two emitters — For one-way control of external devices.
• Remote volume control port for Extron MPA Series and select XTRA™ Series amplifiers
• Volume control knob with LEDs for visual feedback — Control the volume of a device with RS-232, Ethernet, or IR; or remotely control the volume of Extron MPA and select XTRA™ Series amplifiers via the remote volume control port.
• One digital input — Allows for a connection with a variety of devices, such as sensors, switches, and relays.
• Customizable backlit buttons — Buttons can be configured for input source switching, video mute, auto image, and other system functions.
• Power over Ethernet allows the controller to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply
• Supports Ethernet-controllable devices
  • Up to 4 devices with GC Plus
  • Up to 8 devices with GC Pro
• Built-in speaker — Provides audible feedback when buttons are pressed to confirm user action.
• Pluggable captive screw connectors — Provide quick and easy connection to the controller for easy installation and troubleshooting.
• Inactivity timer for display shutoff — Adjustable timer controls automatic shutdown to conserve energy, prevent plasma burn-in, or extend projector's lamp life.
• Extensive library of enhanced Extron Certified device drivers — Device drivers allow Extron products to control various display and source devices, such as projectors, flat-panel displays, and DVD players. Extron has produced fully tested Ethernet, serial, and IR device drivers.
• Create and order custom buttons with just a few clicks using the Custom Button Builder
• Section 508 Compliant — Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
• Dual-color, illuminated mute button
• PoE injector or power supply sold separately
• Supports the Extron Control App
