MLM 84 Flex55 – Mounting Kit for MLC Plus 84 EU and Flex55/EU Modules
Key Features
- Accommodates one Extron MLC Plus 84 EU controller and one single space Flex55 or EU module
- Mounts on the EWB 213 and SMB 213 enclosures or EU junction boxes
- Mounting hardware included
- Connectivity Builder is available at www.extron.com/connectivitybuilder
- Available in white
| MLM 84 Flex55 Mounting Kit Series | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to Extron Flex55 enclosures and EU junction boxes. Accommodates Extron Flex55 modules and active EU modules. | ||
| Materials | Metal mounting bracket, high impact plastic frame | ||
| Dimensions | 3.2″ H x 8.8″ W x 0.4″ D (3 gang) (80.5 mm H x 222.5 mm W x 10.3 mm D) | ||
 | |||
| Product weight | 0.3 lbs (0.2 kg) | ||
| Regulatory compliance | CE, RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||

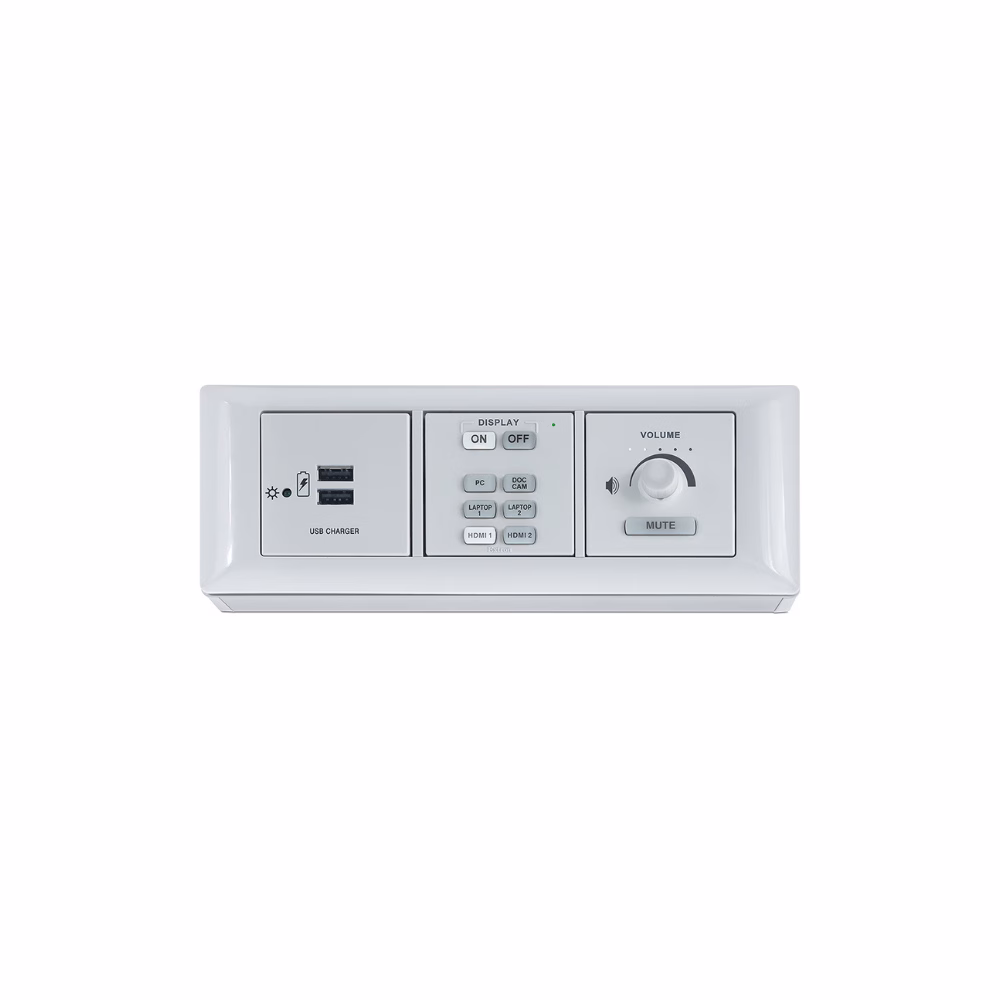

The Extron MLM 84 Flex55 mounting kit mounts onto Flex55™ enclosures and EU junction boxes. It includes a trim frame and mounting bracket designed for a three-gang Flex55 enclosure such as Extron’s EWB 213 and SMB 213. The large opening of this kit holds one MLC Plus 84 EU controller and the small opening holds one Flex55 or EU module. The MLM 84 Flex55 is compatible with one-gang Flex55 and active Extron EU modules such as Flex55 100 Series power modules. It is available in a white finish.
Features
- Accommodates one Extron MLC Plus 84 EU controller and one single space Flex55 or EU module
- Mounts on the EWB 213 and SMB 213 enclosures or EU junction boxes
- Mounting hardware included
- Connectivity Builder is available at www.extron.com/connectivitybuilder — Intuitive online tool for mount and connectivity selection, and pricing.
- Available in white
