NBP 104 EU – Network Button Panel with 4 Buttons – Flex55 and EU Wall Frame
Key Features
- Fully customizable Network Button Panel integrates easily with Extron Control Systems
- Four dual-color, customizable, backlit buttons
- Network Button Panels use standard Ethernet connectivity
- PoE powered
- Built-in speaker provides audible feedback for button presses
| NBP EU Series | |||
| Memory | |||
|---|---|---|---|
| SDRAM | 512 MB | ||
| Flash | 512 MB | ||
| Software | |||
| Configuration software | Global Configurator® Plus and Professional | ||
| Programming software | Global Scripter® ControlScript® Deployment Utility and ControlScript Extension for VS Code | ||
| Control apps | Extron Control | ||
| Resource management software | GlobalViewer® Enterprise | ||
| Utilities | Toolbelt, embedded web page | ||
| Ethernet | |||
| Network interface controllers (NICs) | 1 | ||
| Connector | 1 female RJ-45 connector | ||
| Data rate | 10/100Base-T, half/full duplex with autodetect | ||
| Protocols | DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP | ||
| Default settings | Link speed and duplex level = autodetected IP address = 192.168.254.253 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 | ||
| General | |||
| Power supply | Not included | ||
| Power input requirements | Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) | ||
| Power consumption — Power injector (PI 115) | |||
| NBP 104 EU | |||
| Device | 1.2 watts | ||
| Device and PoE injector | 1.8 watts | ||
| NBP 108 EU | |||
| Device | 2.2 watts | ||
| Device and PoE injector | 3.0 watts | ||
| NBP VC1 EU | |||
| Device | 1.7 watts | ||
| Device and PoE injector | 2.4 watts | ||
| NBP VC2 EU | |||
| Device | 2.0 watts | ||
| Device and PoE injector | 2.8 watts | ||
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Thermal dissipation | |||
| NBP 104 EU | |||
| Device | 3.9 BTU/hr | ||
| Device and PoE injector | 6.2 BTU/hr | ||
| NBP 108 EU | |||
| Device | 7.4 BTU/hr | ||
| Device and PoE injector | 10.4 BTU/hr | ||
| NBP VC1 EU | |||
| Device | 5.6 BTU/hr | ||
| Device and PoE injector | 8.0 BTU/hr | ||
| NBP VC2 EU | |||
| Device | 6.9 BTU/hr | ||
| Device and PoE injector | 9.6 BTU/hr | ||
| Mounting | |||
| Rack mount | No | ||
| Furniture or wall mount | Yes, in a standard 1-gang EU electrical junction box or Flex55 frames and enclosures. | ||
| Enclosure type | Plastic faceplate and high-impact plastic rear enclosure | ||
| Enclosure dimensions | |||
| NBP 104 EU | |||
| Faceplate | 3.17″ H x 3.17″ W x 0.45″ D (81 mm H x 81 mm W x 11 mm D) (Depth excludes buttons.) | ||
| Device | 1.81″ H x 1.84″ W x 1.49″ D (46 mm H x 47 mm W x 38 mm D) (device behind wall) 1.81″ H x 1.84″ W x 1.93″ D (46 mm H x 47 mm W x 49 mm D) (device with faceplate) (Depth excludes buttons. Fits many 1 gang EU junction boxes. Allow enough depth in the junction box for device and cable clearance.) | ||
 | |||
| NBP 108 EU | |||
| Faceplate | 3.17″ H x 3.17″ W x 0.41″ D (81 mm H x 81 mm W x 10 mm D) (Depth excludes buttons.) | ||
| Device | 1.84″ H x 1.81″ W x 1.08″ D (47 mm H x 46 mm W x 27 mm D) (device behind wall) 1.84″ H x 1.81″ W x 1.48″ D (47 mm H x 46 mm W x 38 mm D) (device with faceplate) (Depth excludes buttons. Fits many 1 gang EU junction boxes. Allow enough depth in the junction box for device and cable clearance.) | ||
 | |||
| NBP VC1 EU | |||
| Faceplate | 3.17″ H x 3.17″ W x 0.89″ D (81 mm H x 81 mm W x 23 mm D) (Depth includes buttons and knob.) | ||
| Device | 1.84″ H x 1.81″ W x 1.32″ D (47 mm H x 46 mm W x 33 mm D) (device behind wall) 1.84″ H x 1.81″ W x 2.21″ D (47 mm H x 46 mm W x 56 mm D) (device with faceplate and knob) (Fits many 1 gang EU junction boxes. Allow enough depth in the junction box for device and cable clearance.) | ||
 | |||
| NBP VC2 EU | |||
| Faceplate | 3.17″ H x 3.17″ W x 0.42″ D (81 mm H x 81 mm W x 11 mm D) (Depth excludes buttons.) | ||
| Device | 1.84″ H x 1.81″ W x 1.06″ D (47 mm H x 46 mm W x 27 mm D) (device behind wall) 1.84″ H x 1.81″ W x 1.48″ D (47 mm H x 46 mm W x 38 mm D) (device with faceplate) (Depth excludes buttons. Fits many 1 gang EU junction boxes. Allow enough depth in the junction box for device and cable clearance.) | ||
 | |||
| Product weight | 0.2 lbs (0.1 kg) | ||
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d). | ||
| Product warranty | 3 years parts and labor | ||
| |||
| |||

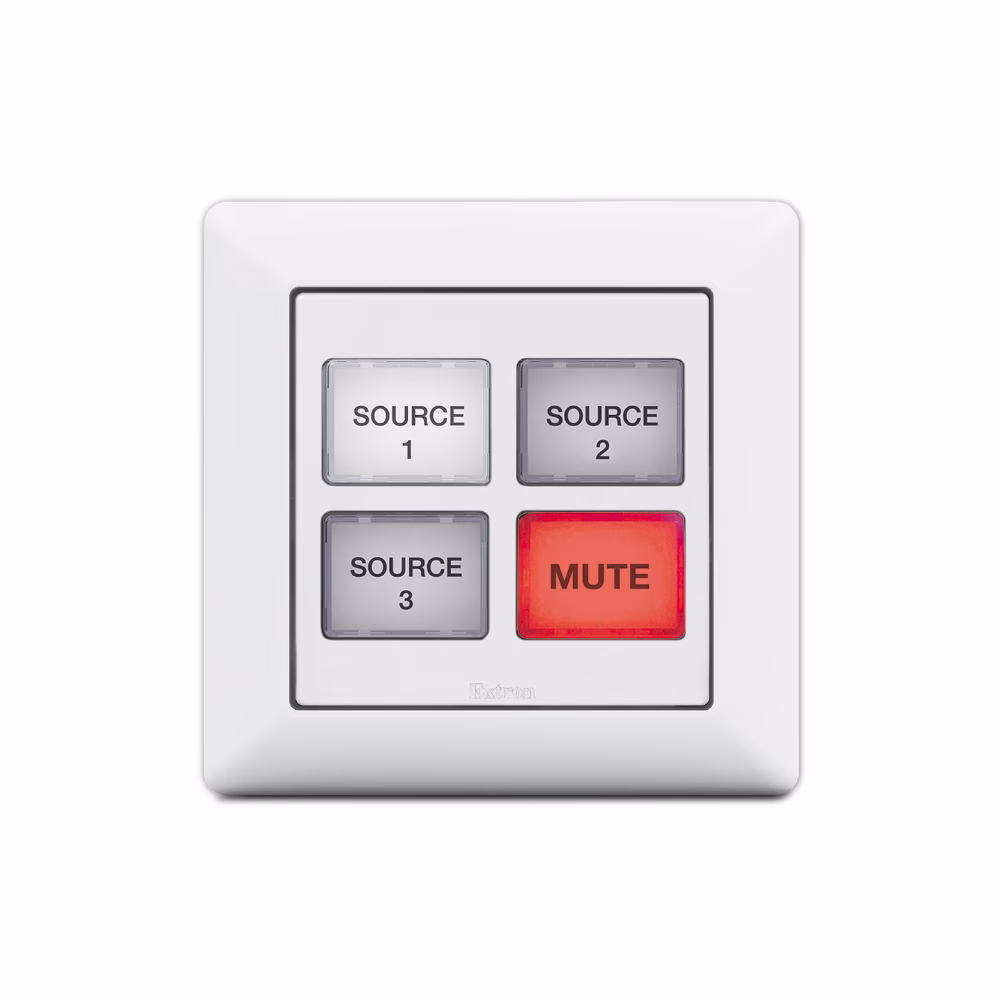

The Extron NBP 104 EU Network Button Panel is a fully-customizable AV system control interface for Extron control systems. This customizable, easy-to-use control panel works in conjunction with the control processor over a standard Ethernet network to perform a wide variety of AV system functions such as display On/Off, input switching, volume control, and much more. The NBP 104 EU features four dual-colored, backlit buttons for easy operation in low-light environments and the convenience of PoE. For applications worldwide, the NBP 104 EU is compatible with Flex55 modules, mounting kits, and enclosures, as well as EU junction boxes.
Features
- Fully customizable Network Button Panel integrates easily with Extron Control Systems
- Four dual-color, customizable, backlit buttons
- Network Button Panels use standard Ethernet connectivity
- PoE powered — 802.3af Power over Ethernet allows this button panel user interface to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply.
- Built-in speaker provides audible feedback for button presses
- Fully customizable using Extron control system software — Configurable using Global Configurator Plus, Global Configurator Professional, or programmable using ControlScript.
- Use a single button panel or combine multiple button panels to accommodate a broad variety of system designs
- Removable button caps make changing labels in the field easy — Label each button to clearly indicate its function. Labels can be quickly changed and don't require programming or engraving.
- Vast library of Pro Series device drivers and modules for use with Global Configurator and ControlScript respectively — Start and execute projects quickly using Extron Global Configurator device drivers and ControlScript modules to control various display and source devices, such as projectors, flat-panel displays, and media players. Extron offers fully tested Ethernet, serial, and IR device drivers and modules.
- Section 508 Compliant — Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
- Communication LED indicates various states of the button panel
- Supports the Extron Control App
- Compatible with Flex55 modules, mounting kits, and enclosures or EU junction boxes
- Includes black and white Flex55 wall plates and mounting bracket
