NBP 50 – Network Button Panel with 6 Buttons – US 2-Gang
Key Features
- Fully customizable Network Button Panel integrates easily with an Extron Pro Series control system or HC 400 Series collaboration systems
- Six dual-color, customizable, backlit buttons
- Network Button Panels use standard Ethernet connectivity
- PoE powered
- Removable button caps make changing labels in the field easy
| Network Button Panels — US Gang Series | |||
| Memory | |||
|---|---|---|---|
| SDRAM | 512 MB | ||
| Flash | 512 MB | ||
| Software | |||
| Configuration software | Global Configurator® Plus and Professional | ||
| Programming software | Global Scripter® ControlScript® Deployment Utility and ControlScript Extension for VS Code | ||
| Control apps | Extron Control | ||
| Resource management software | GlobalViewer® Enterprise | ||
| Utilities | Toolbelt, embedded web page | ||
| Ethernet | |||
| Network interface controllers (NICs) | 1 | ||
| Connector | 1 female RJ-45 connector | ||
| Data rate | 10/100Base-T, half/full duplex with autodetect | ||
| Protocols | DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP | ||
| Default settings | Link speed and duplex level = autodetected IP address = 192.168.254.253 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 | ||
| General | |||
| Power supply | Not included | ||
| Power input requirements | Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) | ||
| Power consumption — Power injector (PI 115) | |||
| NBP 50 | |||
| Device | 2.1 watts | ||
| Device and PoE injector | 4.3 watts | ||
| NBP 100 | |||
| Device | 2.2 watts | ||
| Device and PoE injector | 3.9 watts | ||
| NBP 200 | |||
| Device | 3.0 watts | ||
| Device and PoE injector | 4.0 watts | ||
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Thermal dissipation | |||
| NBP 50 | |||
| Device | 7.1 BTU/hr | ||
| Device and PoE injector | 14.6 BTU/hr | ||
| NBP 100 | |||
| Device | 7.3 BTU/hr | ||
| Device and PoE injector | 13.3 BTU/hr | ||
| NBP 200 | |||
| Device | 10.0 BTU/hr | ||
| Device and PoE injector | 13.5 BTU/hr | ||
| Mounting | |||
| Rack mount | No | ||
| Furniture or wall mount | |||
| NBP 50, NBP 100 | Yes, in a standard US 2-gang electrical junction box or mud ring | ||
| NBP 200 | Yes, in a standard US 3-gang electrical junction box or mud ring | ||
| Enclosure type | Plastic faceplate and high-impact plastic rear enclosure | ||
| Enclosure dimensions | |||
| NBP 50, NBP 100 | |||
| Faceplate | 4.50″ H x 4.60″ W x 0.30″ D (114 mm H x 117 mm W x 8.6 mm D) | ||
| Device | 2.63″ H x 3.50″ W x 1.85″ D (67 mm H x 89 mm W x 47 mm D) (Depth excludes faceplate, buttons, and knob. Fits most 2 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.) | ||
 | |||
 | |||
| NBP 200 | |||
| Faceplate | 4.50″ H x 6.42″ W x 0.30″ D (114 mm H x 163 mm W x 7.6 mm D) | ||
| Device | 2.73″ H x 5.18″ W x 1.85″ D (69 mm H x 132 mm W x 47 mm D) (Depth excludes faceplate, buttons, and knob. Fits most 3 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.) | ||
 | |||
| Product weight | |||
| NBP 50 | 0.7 lb (0.3 kg) | ||
| NBP 100 | 1.2 lb (0.5 kg) | ||
| NBP 200 | 1.6 lb (0.7 kg) | ||
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d). | ||
| Product warranty | 3 years parts and labor | ||
| |||
| |||

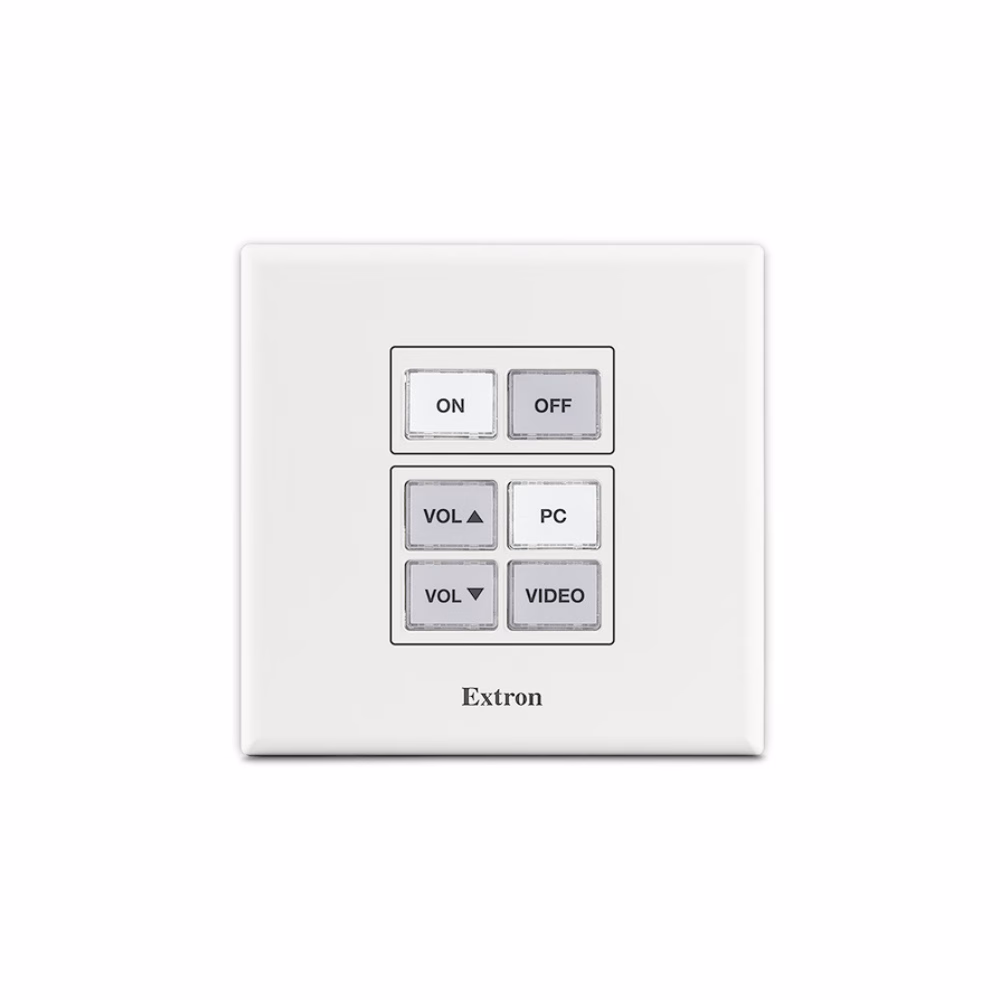

The Extron NBP 50 Network Button Panel is a fully-customizable AV system control interface for Extron Pro Series control systems and HC 400 Series products. Network Button Panels connect to a control processor using standard Ethernet. These customizable, easy-to-use control panels work in conjunction with a control processor to perform a wide variety of AV system functions such as display On/Off, input switching, volume control, and much more. The NBP 50 features six dual-colored backlit buttons for easy operation in low-light environments and the convenience of PoE. The NBP 50 mounts in a two-gang junction box and includes black and white faceplates and mud ring.
Features
- Fully customizable Network Button Panel integrates easily with an Extron Pro Series control system or HC 400 Series collaboration systems
- Six dual-color, customizable, backlit buttons
- Compatible with all Extron IP Link Pro control processors and HC 400 Series systems
- Network Button Panels use standard Ethernet connectivity
- PoE powered — 802.3af Power over Ethernet allows this button panel user interface to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply.
- Removable button caps make changing labels in the field easy — Label each button to clearly indicate its function. Labels can be quickly changed and don't require programming or engraving.
- Fully customizable using Extron control system software — Configurable using Global Configurator Plus, Global Configurator Professional, or programmable using ControlScript.
- Library of Pro Series device drivers and modules for use with Global Configurator and ControlScript programming, respectively — Start and execute projects quickly using Extron Global Configurator device drivers and Extron device modules to control various display and source devices, such as projectors, flat-panel displays, and Blu-ray players. Extron offers fully tested Ethernet, serial, and IR device drivers and modules.
- Section 508 Compliant — Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
- Supports the Extron Control App
- Includes black and white, two-gang faceplates and mud ring
