NetPA U 1002 – Two Channel Power Amplifiers with Dante and DSP
Two Channel Power Amplifiers with Dante and DSP
100 Watts Per Channel
Key Features
- 100 watts rms output power per channel at 8 ohms, 4 ohms, or 70/100V
- ENERGY STAR qualified amplifier with auto-standby
- InstaWake™ exits auto-standby mode in under 100 milliseconds
- Integrated DSP with 6×6 mix matrix
- Dante Domain Manager and AES67 support ensure wide compatibility with enterprise configurations and other network audio devices
- Network monitoring and control
| Specification | NetPA U 1002 (standard / 70V / 100V models) |
|---|---|
| Output Power | 2 × 100 W RMS per channel (4 Ω, 8 Ω, 70 V, or 100 V) |
| Minimum Load Impedance | 4 Ω (standard); 50 Ω for 70 V; 100 Ω for 100 V models |
| Frequency Response | 20 Hz–20 kHz ±1 dB |
| THD+N | ≤ 0.1% @ 1 kHz at 3 dB below clipping (0.2% for 100 V) |
| Signal‑to‑Noise Ratio | ~100 dB (unweighted) |
| Damping Factor | >100 (8 Ω or 50 Ω/100 Ω loads) |
| High‑Pass Filter | 80 Hz, 12 dB/oct selectable on 70 V/100 V models |
| Power Consumption | Idle ~5 W; standby <1 W; active ~34 W @ 1/8 Power |
| Amplifier Type | Class D with patented CDRS™ technology |
| DSP Matrix | 6×6 mix matrix routing analog/Dante inputs to outputs |
| Network Input | Dante Rx/Tx via RJ‑45; network and RS‑232 control |
| Form Factor | Half‑rack 1U chassis; includes rack ears |
| Certifications | ENERGY STAR®, UL, RoHS; plenum-rated with adapter |
| Standby Wake‑Up Time | InstaWake™ under 100 ms |

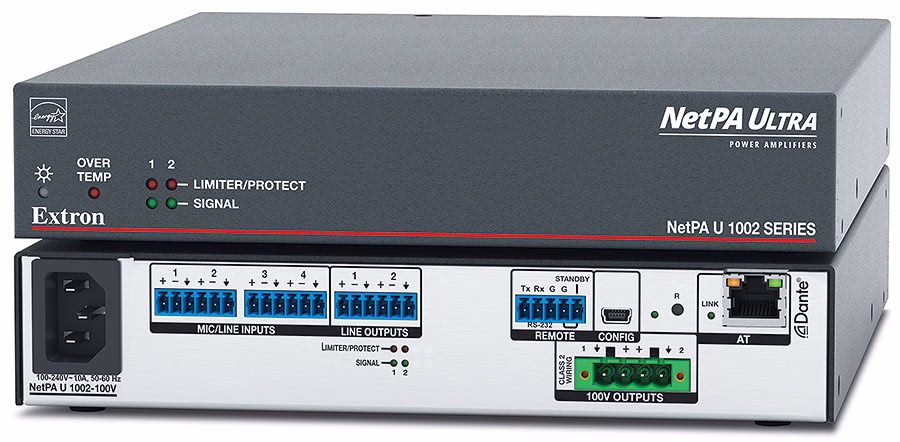

The Extron NetPA U 1002 is a Dante®-enabled, ENERGY STAR®‑qualified stereo power amplifier with integrated onboard DSP. Housed in a compact, half-rack 1U chassis suitable for plenum installation (UL 2043 rated), it delivers two channels of 100 W RMS each—available in low impedance (4 Ω/8 Ω) or distributed high‑impedance (70 V or 100 V) models. It operates fanlessly with convection cooling, and features Extron’s Class D Ripple Suppression (CDRS™) for clean, efficient audio performance. Design includes ultra-low idle power consumption and rapid InstaWake™ (<100 ms) from standby. It also supports Dante Domain Manager and AES67 for enterprise deployment and network audio control.
