OCS 100 – Occupancy Sensors
Key Features
- Dual technology US – Ultrasonic and PIR – Passive Infrared sensors provide a wide coverage area with excellent detection capabilities
- Smart, adaptive software automatically and continuously adjusts timer settings and sensitivity, providing a lifetime of maintenance-free operation
- Non-volatile memory for sensor settings
- Infrared sensitivity knob helps minimize false triggers
- Adjustable timer conserves energy
- Status LED’s flash when occupancy is detected
| OCS 100 Occupancy Sensors | |||
| OCS 100C | |||
|---|---|---|---|
| Square feet coverage area | 2000 square feet | ||
 | |||
| |||
| OCS 100W | |||
| Square feet coverage area | 1600 square feet | ||
 | |||
| Sensor | |||
| InteliDAPT® technology | Auto reset from test setting Self-adjusting timer Self-adjusting passive infrared thresholds Automatic false-on and false-off correction | ||
| LED lamp | Red – infrared motion Green – ultrasonic detection | ||
| Timer timeout | |||
| OCS 100C | Automatic mode: 8 to 42 minutes (self-adjusts based on occupancy) Manual mode: 8 to 42 minutes Test mode: 8 seconds | ||
| OCS 100W | Automatic mode: 4 to 30 minutes (self-adjusts based on occupancy) Manual mode: 4, 8, 15 and 30 minutes Test mode: 8 seconds | ||
| Ultrasonic (US) | |||
| OCS 100C | 4 sensors – 32 kHz output | ||
| OCS 100W | 2 sensors – 32 kHz output | ||
| Passive infrared (PIR) | |||
| OCS 100C | Dual-element pyrometer and 12-element cylindrical segmented Fresnel lens, integral filter excludes excess PIR energy from sunlight | ||
| OCS 100W | Dual-element pyrometer and 12-element cylindrical rugged lens | ||
| Relay | |||
| Relay | 1 Normally Open and Closed contact, single pole, double throw 500 mA rated at 24 VDC, three-wire isolated relay | ||
| Photocell | |||
| Photocell | Adjustable natural-light override ranges from 1 to 100 foot-candles (10 to 1000 Lux) | ||
| Adaptive functions | |||
| Learning | 4 weeks for response error conditions, air current adaption and timer optimization | ||
| Post-learning occupancy periods | 24-hour circadian occupancy periods learned | ||
| Adjustments in post-learning period | Generally occupied periods Generally unoccupied periods | ||
| Digital output | |||
| Quantity/type | 2 digital outputs | ||
| Connectors | Blue wire = Occupancy only Gray wire = Occupancy + Photocell | ||
| Output voltage range | 0 – 24 VDC Active high logic control signal with short-circuit protection, open collector when unoccupied | ||
| General | |||
| Sensor power input requirements | 20-24 VDC, 33 mA nominal | ||
| |||
| PC 1224 power requirements | Input: 12 VDC, 1.5 A max Output: 12 VDC, 1.25 A max 24 VDC, 75 mA max | ||
| Wiring | Color coded, pre-stripped leads – 6″ (15 am) in total length | ||
| Ambient temperature/humidity | Operation: +32 to +104 °F (0 to +40 °C) / 0% to 95 %, noncondensing For indoor use only | ||
| Cooling | Convection, no vents | ||
| Mounting | Mounting base provided Recommended mounting height: 8 feet with a max mounting height of 12 feet | ||
| Enclosure type | Plastic | ||
| Enclosure dimensions | |||
| OCS 100C | 4.50″ W x 1.40″ D (114 mm W x 36 mm D) | ||
 | |||
| OCS 100W | 2.80″ W x 5.50″ L x 2.10″ D (71 mm W x 140 mm x 53 mm D) | ||
 | |||
| PC 1224 | 1.00″ W x 1.00″ L x 0.50″ D (25 mm W x 25 mm L x 13 mm D) | ||
| Product weight | 0.1 lb (<0.1 kg) | ||
| Color | Off-white | ||
| Regulatory compliance | CE, c-UL, UL, FCC Class A, KC Complies with appropriate requirements of RoHS, WEEE, and California Title 24 | ||
| Product warranty | 3 years parts and labor | ||
| Everlast power supply warranty | 7 years parts and labor | ||
| |||

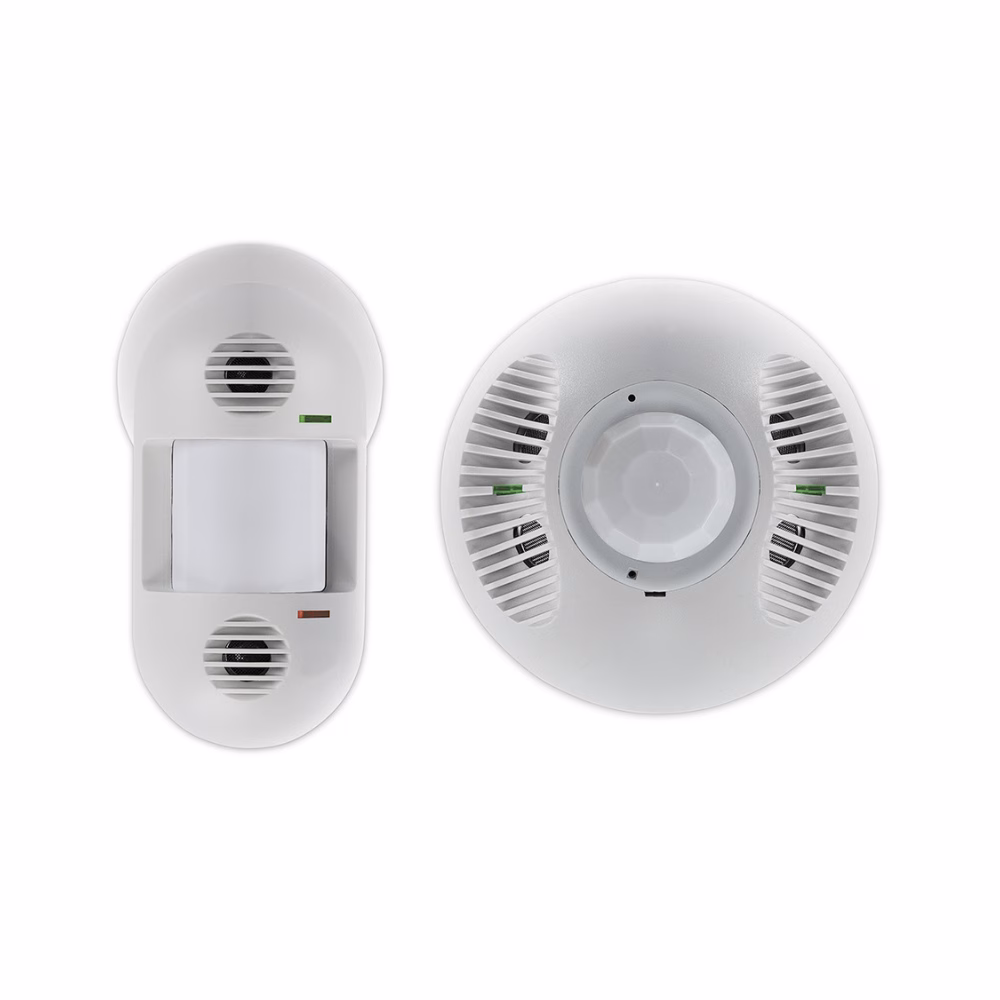

The Extron OCS 100C and OCS 100W are ceiling and wall-mount occupancy sensors that provide exceptional coverage using ultrasonic and passive infrared detection technologies. Integrated smart, adaptive software automatically and continuously monitors the environment and adjusts timer settings and sensitivity, providing a lifetime of dependable detection and maintenance-free operation. These occupancy sensors are tested for use, worldwide, and are ideal for any business application where various occupancy-dependent automation scenarios or conscientious energy management are needed.
Features
- Dual technology US - Ultrasonic and PIR - Passive Infrared sensors provide a wide coverage area with excellent detection capabilities
- Smart, adaptive software automatically and continuously adjusts timer settings and sensitivity, providing a lifetime of maintenance-free operation
- Non-volatile memory for sensor settings
- Infrared sensitivity knob helps minimize false triggers
- Adjustable timer conserves energy
- Status LED's flash when occupancy is detected
- Relay and photocell control
- Coverage area:
- OCS 100C - 2,000 square feet
- OCS 100W - 1,600 square feet - UL and cUL listed
- California Title 24 compliant
- DIP switches for fine tuning device settings
- Includes Extron PC 1224 – Adapter features a 24V output that can be supplied via a 12V input or via a 5V USB type-C input from compatible TouchLink Pro touchpanels or TouchLink scheduling panels
