PI 130 – High Power Injector for XTP and Pro Series Control Systems
Key Features
- Supplies the required power to compatible PoE+ 802.3at devices and select XTP devices
- Designed specifically for the high data rates of XTP Systems
- No impact on signal quality
- Patented ZipClip® 200 mounting kit included:
– Mounts securely on a variety of surfaces, including rack rails, tables, lecterns, projector poles, and table legs
– Wire tie slots for proper strain relief and dressing of excess cable
– Quick release tab allows for easy installation and removal - Real-time status LEDs for troubleshooting and monitoring
- UL/c-UL listed and CE compliant
| PI 130 | |||
| General | |||
|---|---|---|---|
| Connectors | 1 RJ-45 female connector for pass-through input 1 RJ-45 female connector for pass-through and power output | ||
| Ethernet standards | 10/100/1000Base-T | ||
| Power supply | Internal Input: 100-240 VAC, 50-60 Hz | ||
| Power input | |||
| No load | 100 VAC to 240 VAC, 50-60 Hz, 0.8 watts | ||
| Full power | 100 VAC to 240 VAC, 50-60 Hz, 34.2 watts, 0.6 A maximum | ||
| Power output | 56 VDC, 0.5 A, 30 watts Compatible with 802.3at PoE+ devices | ||
| Efficiency | |||
| At full load, 230 VAC | 89.30% | ||
| At full load, 100 VAC | 87.70% | ||
| Power consumption | |||
| No load | 100 VAC to 240 VAC, 50-60 Hz, 0.86 watts | ||
| Full load | 100 VAC to 240 VAC, 50-60 Hz, 30 watts | ||
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Mounting | |||
| Rack mount | Yes, with optional 1U rack shelf with the included ZipClip 200 mounting clip or by securing to rack rails with tie wraps | ||
| Furniture mount | Yes, with the included ZipClip 200 mounting clip | ||
| Pole mount | Yes, using tie wraps | ||
| Enclosure type | High impact, high temperature plastic | ||
| Enclosure dimensions | 1.7″ H x 4.3″ W x 4.5″ D (1U high, quarter rack wide) (4.2 cm H x 11.0 cm W x 11.4 cm D) | ||
| Product weight | 0.6 lb (0.3 kg) | ||
| Regulatory compliance | |||
| Safety, EMI/EMC | CE, C-tick, c-UL, UL, CISPR 32, CISPR 35, FCC Class B, NEC Class 2 | ||
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. | ||
| Product warranty | 7 years parts and labor | ||
| |||

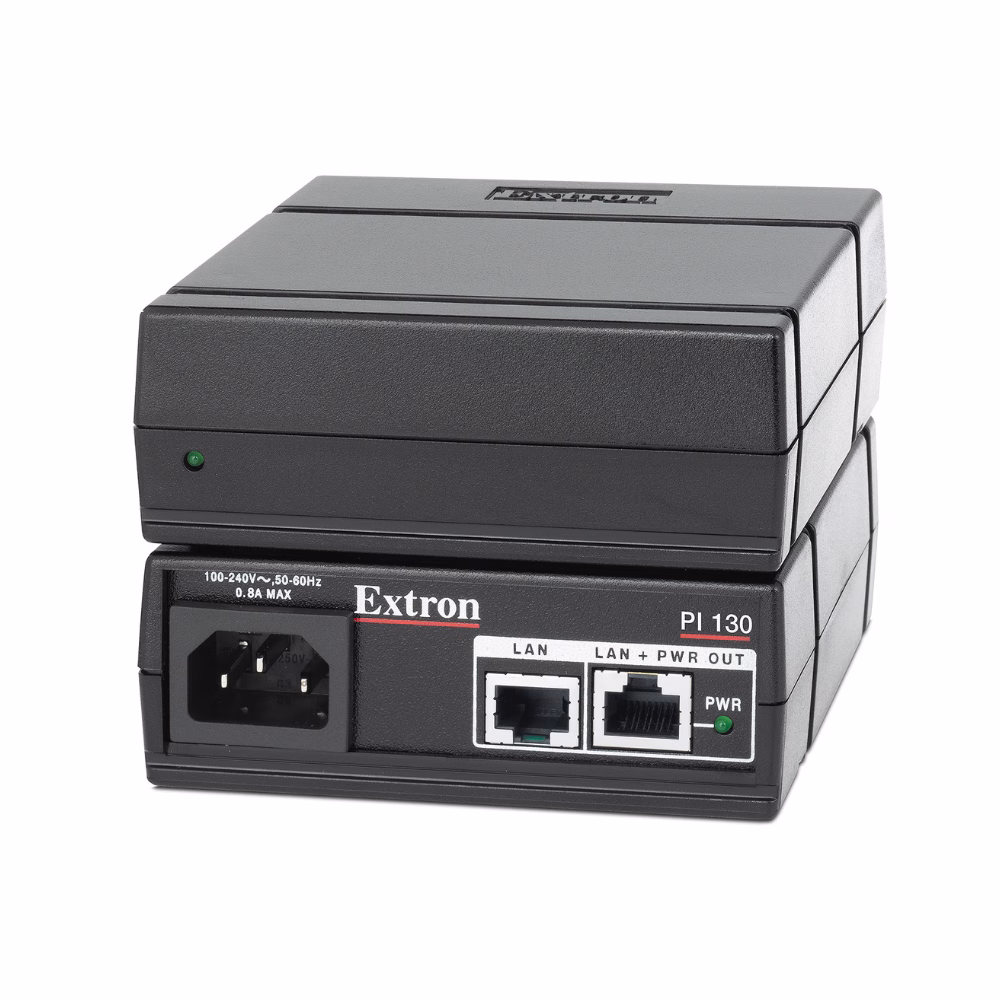

The Extron PI 130 is a single port high power injector that provides power to any PoE+ 802.3at compatible device, eliminating the need for a local power supply. Designed specifically for the high data rates of XTP Systems®, signal quality is unaffected when using the high power injector. For design flexibility, it can be installed anywhere within a signal path as well as in point-to-point applications. The compact enclosure of the power injector enables it to be installed in small spaces and the included Extron ZipClip® 200 mounting kit provides installation flexibility.
The unique 1U, quarter rack width enclosure features threaded inserts and recessed grooves for zip ties, allowing for easy mounting onto Extron rack shelves or oddly shaped supports, such as projector poles and rack rails. In addition, the patented Extron ZipClip 200 mounting kit offers further versatility to quickly and securely mount the PI 130 within lecterns, beneath tables, or into many other tight spaces.
Features
- Supplies the required power to compatible PoE+ 802.3at devices and select XTP devices — Provides power for XTP transmitters and receivers, and Extron control systems, as well as any other PoE+ compatible product, eliminating the need for a local power supply.
- Designed specifically for the high data rates of XTP Systems
- No impact on signal quality — Utilization of the power injector does not impact video, audio, bidirectional RS-232 and IR, and Ethernet signal quality.
- Patented ZipClip® 200 mounting kit included:
- Mounts securely on a variety of surfaces, including rack rails, tables, lecterns, projector poles, and table legs
- Wire tie slots for proper strain relief and dressing of excess cable
- Quick release tab allows for easy installation and removal - Real-time status LEDs for troubleshooting and monitoring — The front LED is for status of AC power input. The rear LED indicates if power is delivered to the device.
- UL/c-UL listed and CE compliant
- 1U, quarter rack width enclosure
- Extron Everlast™ power supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost.
- Extron Everlast™ Power Supply is covered by a 7 year parts and labor warranty
