PMK 155 – Pole and select Cable Cubby Enclosures Mounting Kit for up to 1/2 Rack Width Products
Key Features
- Securely mounts and conceals products above the projector or beneath a surface with Extron’s Cable Cubby 1252 MS and Cable Cubby F55 Edge enclosures
- Accommodates most eighth, quarter, and half rack width Extron devices
- Also accommodates many larger, half rack width products such as the XTP SR HD 4K
- Compatible with PCM Series Projector Drop Ceiling Mounts
- Supports up to 5 lbs. (2.26 kg)
- All necessary hardware is included
| PMK 155 | |||
| General | |||
|---|---|---|---|
| Mounting | |||
| Pole mount | Mountable to round projector mount poles or pipes with an outer diameter of 1.85″ to 1.95″ (4.7 cm to 5.0 cm) using included hardware | ||
| Maximum load capacity | 5 lbs (2.3 kg) | ||
| Material | Steel | ||
| Dimensions | 1.6″ H x 9.50″ W x 6.25″ D (4.0 cm H x 24.1 cm W x 15.8 cm D) (Width excludes bracket.) | ||
 | |||
| Product weight | 1.6 lbs (0.7 kg) | ||
| Shipping weight | 2 lbs (1 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | |||
| Safety | CE | ||
| Environmental | Complies with the appropriate requirements of RoHS | ||
| Product warranty | 3 years parts and labor | ||
| |||

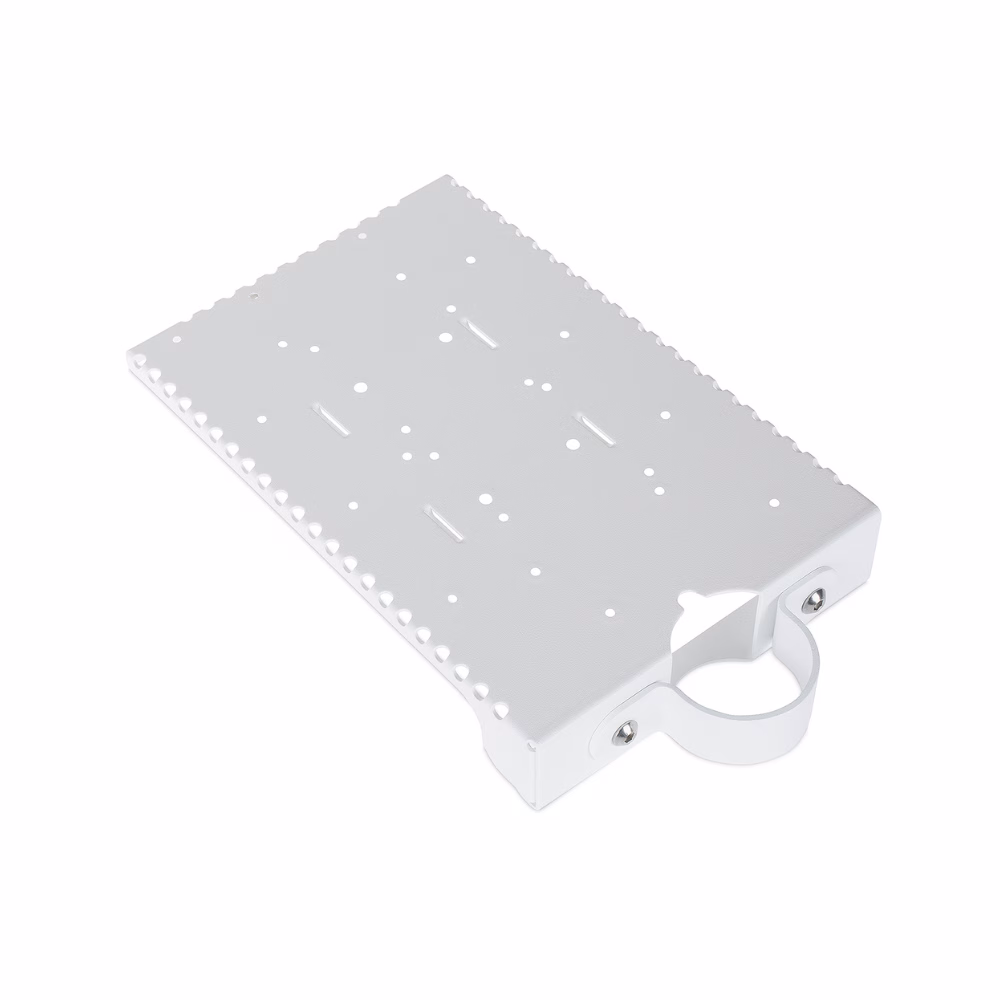

The Extron PMK 155 Low Profile Pole Mount Kit securely mounts one half-rack, two quarter-rack, or four eighth-rack width products, plus an external power supply, to a projector ceiling mount pole or Extron’s Cable Cubby 1252 MS Matching Surface and Cable Cubby F55 Edge cable access enclosures. It provides a convenient and secure mounting location out of sight, above the display device. Alternatively, it may be installed beneath a top surface on the Cable Cubby® enclosure. The PMK 155 accommodates products such as the XTP SR HD 4K scaling receiver for XTP Systems®, MPA 601 mono power amplifier, DTP HDMI 4K 230 Rx twisted pair receiver for DTP® Systems, and PS Series desktop power supplies. Available in a white or black powder coat finish.
Features
- Securely mounts and conceals products above the projector or beneath a surface with Extron’s Cable Cubby 1252 MS and Cable Cubby F55 Edge enclosures
- Accommodates most eighth, quarter, and half rack width Extron devices
- Also accommodates many larger, half rack width products such as the XTP SR HD 4K
- Compatible with PCM Series Projector Drop Ceiling Mounts
- Supports up to 5 lbs. (2.26 kg)
- All necessary hardware is included
- Available in a white or black powder coat finish
