REFERENCE IW4X8-W-T-EACH – Reference 4 in. x 8 in. In-Wall Speaker, White Textured, Single
Audiophile performance in-wall speaker to please the most ardent listener and the most demanding interior designer — with thoughtful features that simplify installation.
| Features & Performance | |
| Woofer | 4 in. x 8 in. (102 mm x 203 mm) racetrack woven glass fiber woofer |
| Tweeter | 1 in. (25 mm) Silk DPSD |
| Crossover Slope | 12 dB/oct |
| Crossover Point | 3 kHz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 60 Hz to 20 kHz (±3 dB) |
| Frequency Range | 45 Hz to 20 kHz (±10 dB) |
| Power Handling | Program: 100 W; Peak: 200 W |
| Sensitivity | 86 dB @ 1 W/1 M |
| Connections | |
| Input | (2) Gold-plated spring terminals |
| Maximum Wire Size | 10 AWG (6 mm2) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 90% RH (non-condensing) For indoor use only |
| Construction | |
| Baffle | Glass fiber reinforced ABS |
| Grille | Electroplated and powder coated steel, paintable, magnetically held bezel design |
| Mounting | Spring Lock mounting system |
| Dimensions | |
| Height without grille | 11.81 in. (300 mm) |
| Width without grille | 5.51 in. (140 mm) |
| Depth | 3.74 in. (95 mm) |
| Rectangle Grille | |
| Length | 12.40 in. (315 mm) |
| Width | 6.10 in. (155 mm) |
| Recommended Cutout Dimension | |
| Height | 11 in. (279 mm) |
| Width | 4.68.in. (119 mm) |
| Weight | |
| 3.8 lb (1.72 kg) | |
| Compliance | |
| CE, RoHs, FCC Part 15 Class B digital device | |
| Regulatory Model | M202046014 |
Crestron® Reference speakers made by Origin Acoustics deliver the pinnacle of performance for demanding residential installations. Select materials, top shelf components and a high-end appearance underscore the design behind each model. The result is a complete line of in-wall speakers suitable for installation in luxury residential applications, restaurants, retail spaces, universities, and office buildings.
The REFERENCE IW4X8-W-T-EACH promises the best in installed audio design, delivering stunning sound quality while minimizing impact to the customer's decor. The in-wall speaker is provided with a rectangular grille with white plastic bezel. An aluminum-colored grille option is sold separately. In addition, the following accessories are available:
- New-Construction Template (SPKA‑NCTP‑IW4X8)
- Fire Rated Back Box (SPKA‑BBFR4‑IW4X8)
Streamlined installation of each speaker is facilitated through an easy to use turn and click Spring Lock mounting system optimized to minimize interference with other elements present in the wall space.

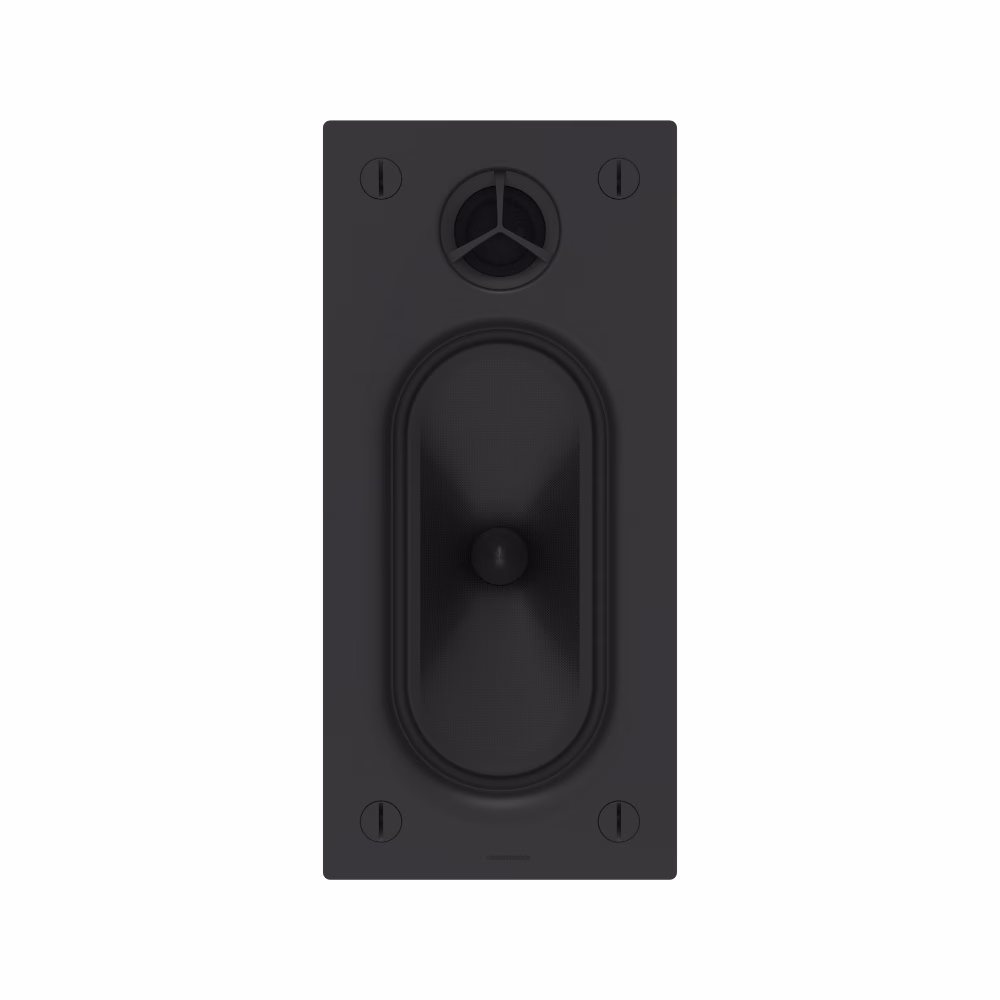

The REFERENCE IW4X8-W-T-EACH in‑wall speaker features a 4 in. x 8 in. (102 mm x 203 mm) racetrack woven glass fiber woofer for deep, defined low end and articulate midrange, and a 1 in. (25 mm) Silk DPSD tweeter for crisp highs with consistent coverage across a wide listening area. A compression molded woofer basket assures pure, uncolored bass response.
Key Features
- Audiophile performance in-wall speaker
- 4 in. x 8 in. (102 mm x 203 mm) racetrack woven glass fiber woofer
- 1 in. (25 mm) Silk DPSD™ tweeter
- Turn and click Spring Lock™ mounting system
- 100 W (Program), and 200 W (Peak) power handling
- 60 Hz to 20 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance
