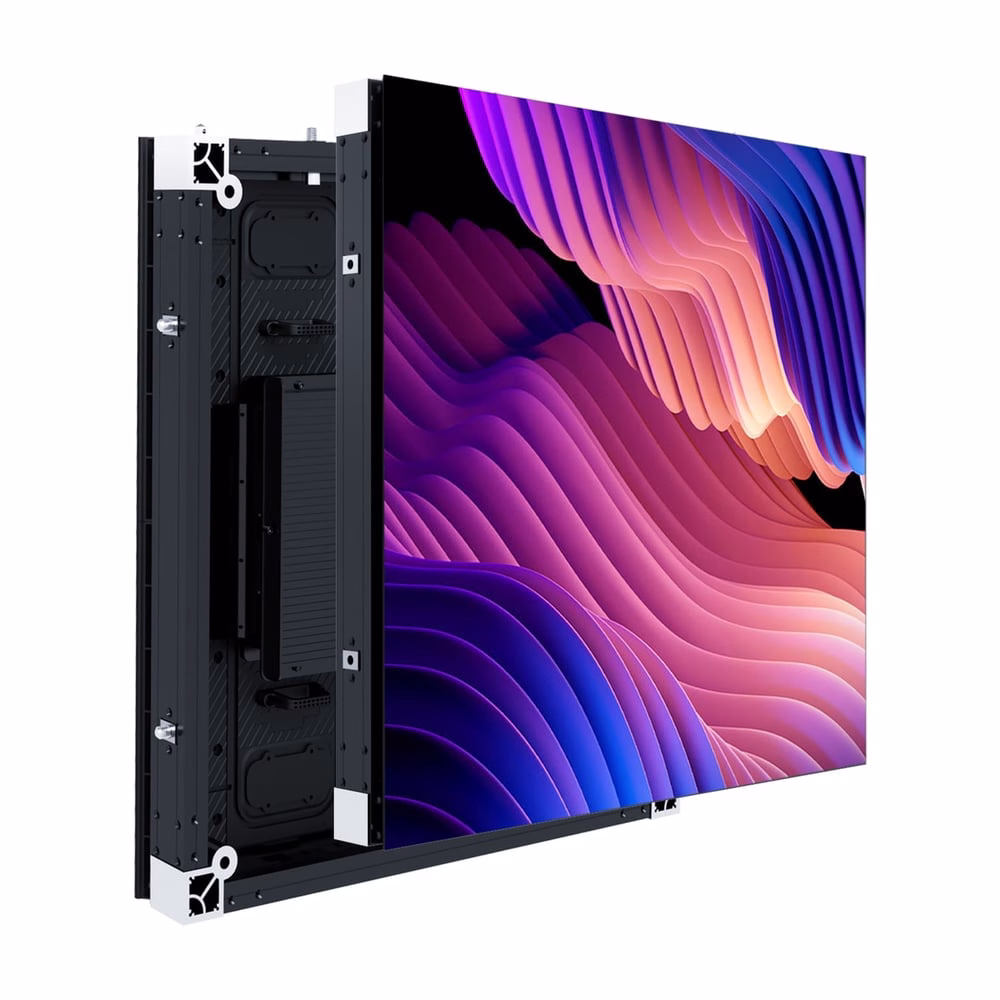

ROHFE Series – ROHFE Series – Outdoor LED Display
Experience Hisense’s innovative outdoor flip‑chip COB technology, featuring flexible 1.56 mm and 1.95 mm pixel‑pitch options for a variety of outdoor applications. With a high brightness of 3,500 nits, the display remains clearly visible even under direct sunlight, while the ultra‑wide 170° viewing angle ensures excellent visibility from almost any direction. The ROHFE series delivers new possibilities for drive‑thru installations, public transportation, outdoor advertising, and other demanding outdoor environments.
Model: ROH015FEPixel Pitch: 1.56 mm
- Pixel Configuration: Flip Chip COB (1 red, 1 green, 1 blue)
- Module Resolution (W x H): 160 x 160
- Module Dimension (W x H): 500 x 500 mm
- Cabinet Resolution (W x H): 320 x 320
- Cabinet Dimension (W x H x D): 500 x 500 x 74.5 mm
- No. of Modules per Cabinet (W x H): 2 x 2
- Cabinet Weight: 9.1 kg
- Cabinet Materials: Profile Aluminium
- Brightness (typ.): 3,500 nits
- Contrast Ratio: 10,000:1@10 lux
- Visual Viewing Angle (H x V): 170° x 170°
- Bit Depth: 16 bit
- Color Temperature: 6,500K + 500K
- Brightness Uniformity: 97%
- Color Uniformity: 98%
- Video Frame Rate: 60 Hz
- Max Power Consumption per unit area: 600 (W/m2)
- Avg Power Consumption per unit area: 180 (W/m2)
- Power Supply: 100~240 V AC
- Refresh Rate: 3,840 Hz (7,680 Customizable)
- Operating Temp / Humidity: -20~50°C / 10~90% RH
- Storage Temp / Humidity: -20~60°C / 10~90% RH
- IP Rating: Front IP65 & Rear IP65
- Lifetime: 100,000 Hrs
- Maintenance: Front & Rear Access
- Certification: CE, CB
Model: ROH019FEPixel Pitch: 1.95 mm
- Pixel Configuration: Flip Chip COB (1 red, 1 green, 1 blue)
- Module Resolution (W x H): 128 x 128
- Module Dimension (W x H): 500 x 500 mm
- Cabinet Resolution (W x H): 256 x 256
- Cabinet Dimension (W x H x D): 500 x 500 x 74.5 mm
- No. of Modules per Cabinet (W x H): 2 x 2
- Cabinet Weight: 9.1 kg
- Cabinet Materials: Profile Aluminium
- Brightness (typ.): 3,500 nits
- Contrast Ratio: 10,000:1@10 lux
- Visual Viewing Angle (H x V): 170° x 170°
- Bit Depth: 16 bit
- Color Temperature: 6,500K + 500K
- Brightness Uniformity: 97%
- Color Uniformity: 98%
- Video Frame Rate: 60 Hz
- Max Power Consumption per unit area: 600 (W/m2)
- Avg Power Consumption per unit area: 180 (W/m2)
- Power Supply: 100~240 V AC
- Refresh Rate: 3,840 Hz (7,680 Customizable)
- Operating Temp / Humidity: -20~50°C / 10~90% RH
- Storage Temp / Humidity: -20~60°C / 10~90% RH
- IP Rating: Front IP65 & Rear IP65
- Lifetime: 100,000 Hrs
- Maintenance: Front & Rear Access
- Certification: CE, CB
Bright and Durable COB Display
This flip-chip COB display achieves 3,500 nits brightness for vivid, high-contrast visuals and enhanced dark details, with enhanced overall reliability, providing superior resistance to dust, moisture, and physical impact.
170 Degree Wide Viewing Angle
The 170° ultra‑wide viewing angle delivers clear, vivid images from multiple perspectives, enhancing the overall visual experience.
Secure, Rapid Installation
Featuring a quick-lock design with integrated safety lanyards, the cabinet enables rapid deployment while safeguarding against module drops during high-altitude installations, significantly enhancing operational safety and efficiency.
Front and Rear IP65
The COB module and fully sealed profile aluminum cabinet provide IP65-rated protection, safeguarding the display against water, humidity, and dust ingress in even the harshest environments.
Front and Rear Maintenance
Featuring a dual‑access maintenance design, the system supports both front and rear servicing with easy module access, significantly reducing overall service downtime.
Ultra Energy Efficient
Powered by a high‑efficiency common‑cathode design, the display delivers customizable brightness up to 3,500 nits—maximizing visual impact while minimizing power consumption.
