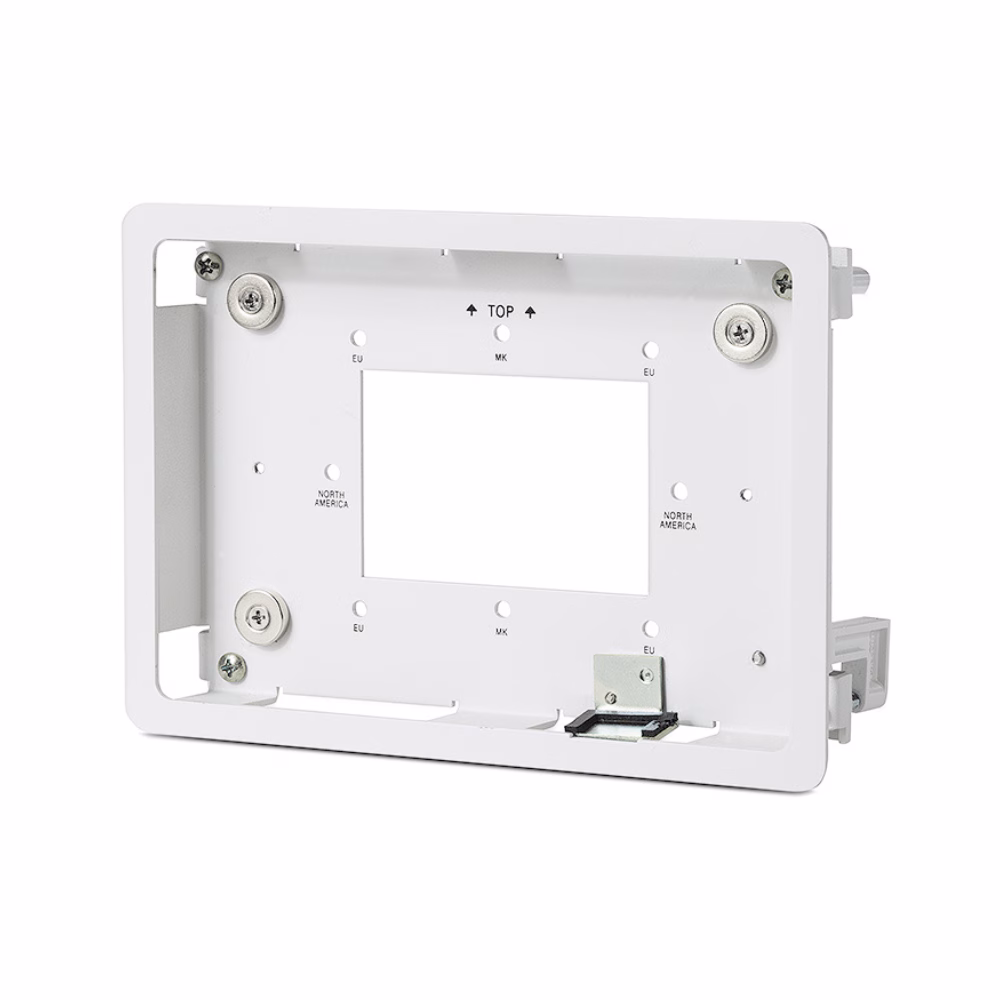

RWM 1 – Recessed Wall Mount Kit for TLP Pro 525M, TLC Pro 526M, and TLS 525M
Key Features
- Used to securely mount a TLP Pro 525M, TLC Pro 526M, or TLS 525M in a wall
- Provides an elegant, aesthetically pleasing installation
- Four locking arms provide secure installation in walls with thicknesses from 1/2 inch to 1 inch
- Downloadable paper cutout template for easy installation
- Touchpanel can be removed for maintenance
- Use the RWM 1 in drywall or furniture openings previously cut for TLP 350MV, TLP Pro 320M, TLP Pro 520M, or TLC Pro 521M
| RWM 1 | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts into walls Wall thickness range 0.50″ to 1.00″ | ||
| Enclosure material | Metal, painted white | ||
 | |||
| Enclosure dimensions | 4.65″ H x 6.57″ W x 2.32″ D (118 mm H x 167 mm W x 59 mm D) | ||
| Surface cutout dimensions | 4.15″ H x 6.07″ W (105 mm H x 154 mm W) | ||
| Product weight | TBD lbs (TBD kg) | ||
| Regulatory compliance | |||
| Environmental | CE, RoHS, WEEE | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Product warranty | 3 years parts and labor | ||
| |||
The Extron RWM 1 is a recessed wall mount kit for the TLP Pro 525M, TLC Pro 526M, and TLS 525M that allows the touchpanels to be installed securely within a wall. When mounted into an RWM 1, the touchpanel surface lies slightly above the surrounding area. This allows the side LEDs to be visible for easy occupancy verification, while creating an elegant, aesthetically-pleasing installation.
Features
- Used to securely mount a TLP Pro 525M, TLC Pro 526M, or TLS 525M in a wall
- Provides an elegant, aesthetically pleasing installation
- Four locking arms provide secure installation in walls with thicknesses from 1/2 inch to 1 inch
- Downloadable paper cutout template for easy installation
- Touchpanel can be removed for maintenance
- Use the RWM 1 in drywall or furniture openings previously cut for TLP 350MV, TLP Pro 320M, TLP Pro 520M, or TLC Pro 521M — Wall openings will need to be enlarged to accept the RWM 1.
- Allows integration and installation of a junction box for conduit runs
