SAROS SMT8T-AW-B-T-EACH – Saros® 8 in. 2-Way All Weather Surface Mount Indoor/Outdoor Speaker, Black Textured, Single

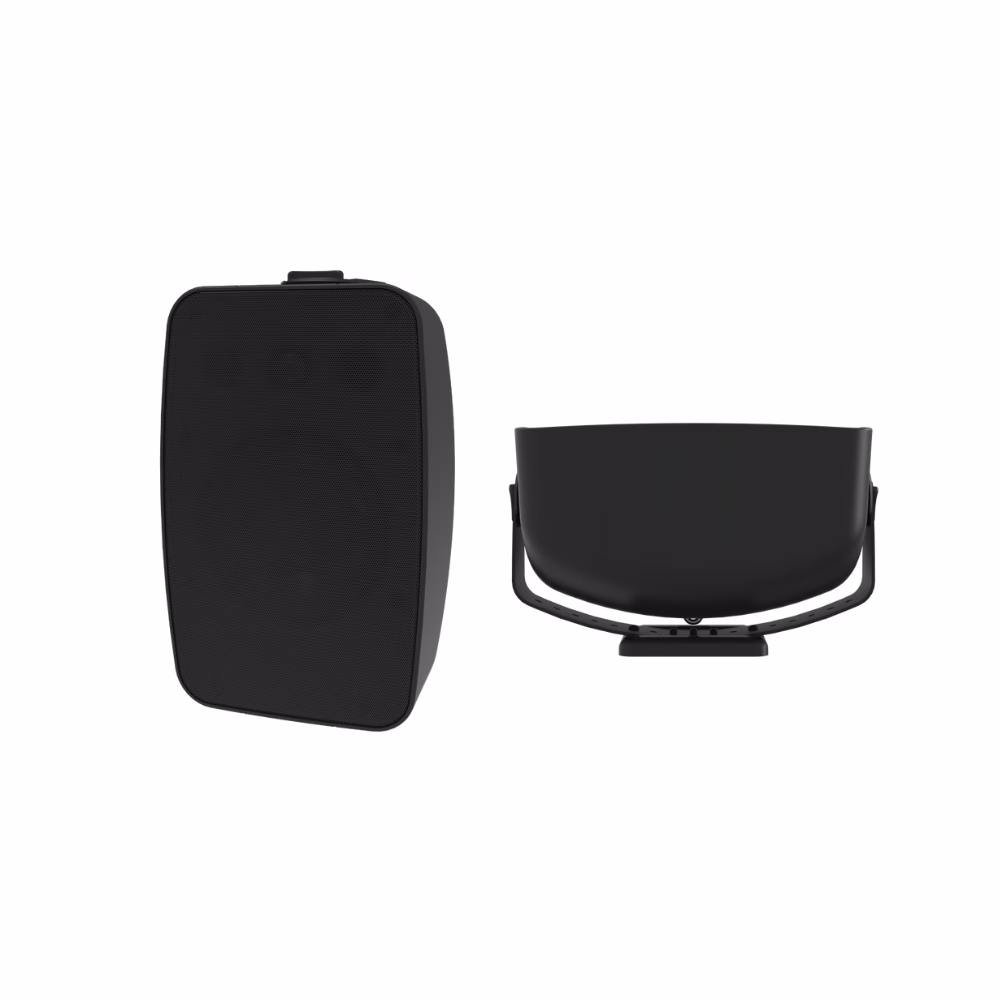

The Crestron SAROS SMT8T-AW-B-T-EACH speaker delivers professional grade performance and flexible installation.

Features and Performance
Woofer8 in. IMPP
Tweeter1 in. ceramic-coated aluminum
Crossover Point2 kHz
Impedance8 Ω nominal with tap transformer set to 8 Ω
Transformer Taps10 W, 20 W, 40 W, 80 W, 8 Ω
Frequency Response57 Hz-20 kHz +/-3 dB
Frequency Range42 Hz-20 kHz +/-10 dB
Power Handling160 W Program, 250 W Peak (8 Ω)
Sensitivity92 dB @1 m
Connections
Input(1) 4-pin 5 mm detachable terminal block;
Speaker input with parallel pass-through;
12 AWG maximum
Controls
Transformer TapFront mounted, screwdriver-adjustable;
Used to select 70/100 V tap or 8 Ω
Maximum Wire Size12 AWG
Environmental
Temperature4° to 176° F (-15.5° to 80° C)
Humidity10% to 95% RH (non‑condensing)
Splash ResistanceIPX6
Construction
EnclosurePP+Fiber loaded, fire retardant UL rated.
BafflePP+Fiber loaded, fire retardant UL rated.
GrillePowder coated perforated aluminum.
MountingDie Cast AL wall mount to fit 1 gang box, pole clamp capable, safety tether, adjustable yoke.
Positioning
Pitch (Vertical)±18°
Yaw (Horizontal)±90°
Dimensions
Height14.92 in. (379 mm)
Width9.42 in. (239 mm)
Depth9.64 in. (245 mm)
Weight
Speaker14.12 lb (6.4 kg)
Compliance
Regulatory Model:
UL 1480A, UL22391 (with added safety tether)

Saros® speakers by Crestron deliver professional grade performance and flexible installation for demanding commercial or residential applications.

The SAROS SMT8T‑AW‑B‑T‑EACH is a surface-mountable, all-weather, 2-way speaker featuring an 8 in. (203 mm) IMPP woofer for deep, defined low end. A 1 in. (25 mm) ceramic-coated aluminum tweeter provides crisp highs with consistent coverage across a wide listening area. A built-in 80 Watt multi-tap transformer allows for use with 70 or 100 Volt distributed speaker systems. The power handling is an impressive 160 W (program) with a wide frequency response from 57 Hz to 20 kHz (±3 dB).

The SAROS SMT8T‑AW‑B‑T‑EACH features a clean and contoured enclosure with weatherized construction. It can be mounted to most solid flat surfaces using the included brackets. The speaker comes with a rectangular grille, and a preconstruction mounting kit (SPKA‑PMK‑SMT8T‑B‑T) is available as an accessory. The preconstruction mounting kit can be purchased prior to receiving the speaker to prepare an installation for speaker and cabling positioning. A safety tether kit (SPKA-ST-15) can also be purchased separately and installed to make the speaker compliant with the UL 2239 standard.

Key Features
  • High-performance 2-way surface mount speaker
  • Designed for high reliability in both indoor and outdoor applications
  • 8 in. (203 mm) Injection-Molded Polypropylene (IMPP) woofer
  • 1 in. (25 mm) ceramic-coated aluminum tweeter
  • IPX6 rated for water and weatherized construction
  • UL 1480A safety rated speaker for commercial and professional use
  • 160 W Program, 250 W Peak (8 Ω)
  • Built-in 80 Watt 70/100V multi-tap transformer
  • 57 Hz to 20 kHz (±3 dB) frequency response
  • 8 Ω nominal impedance
  • Mounting mechanism allows for pan or tilt
  • Suitable for both Residential and Commercial applications
