SF 26X – Two-Way SoundField Open Back 8 Ohm Ceiling Speakers
Key Features
- Open back, infinite baffle design
- 8 ohm nominal impedance
- 6.5″ (165 mm) polypropylene woofer
- 3/4″ (19 mm) ferrofluid-cooled dome tweeter
- Frequency range: 50 Hz to 20 kHz
- 25 watts continuous pink noise
- 50 watts continuous program
| SF 26X | |
| Audio/acoustic and electrical | |
|---|---|
| Speaker type | 2-way, open back ceiling speaker |
| Frequency range | 50 Hz to 20 kHz, -10 dB, half space |
| Power capacity | 25 W (rms) continuous pink noise 50 W (rms) continuous program |
| Nominal sensitivity | 83 dB SPL, 1 W, 1 m, half space (per IEC 60268-5) |
| Nominal impedance | 8 ohms |
| Crossover frequency | 2.3 kHz |
| Nominal coverage angle | 107° conical coverage (1 kHz – 4 kHz, weighted 2 kHz – 4 kHz) |
| Woofer | (1) 6.5″ (165.1 mm) polypropylene cone with moisture resistant coating |
| Tweeter | (1) 3/4″ (19.05 mm) PEI dome |
| Overload protection | Full range power limiter, protecting the tweeter, woofer, and crossover |

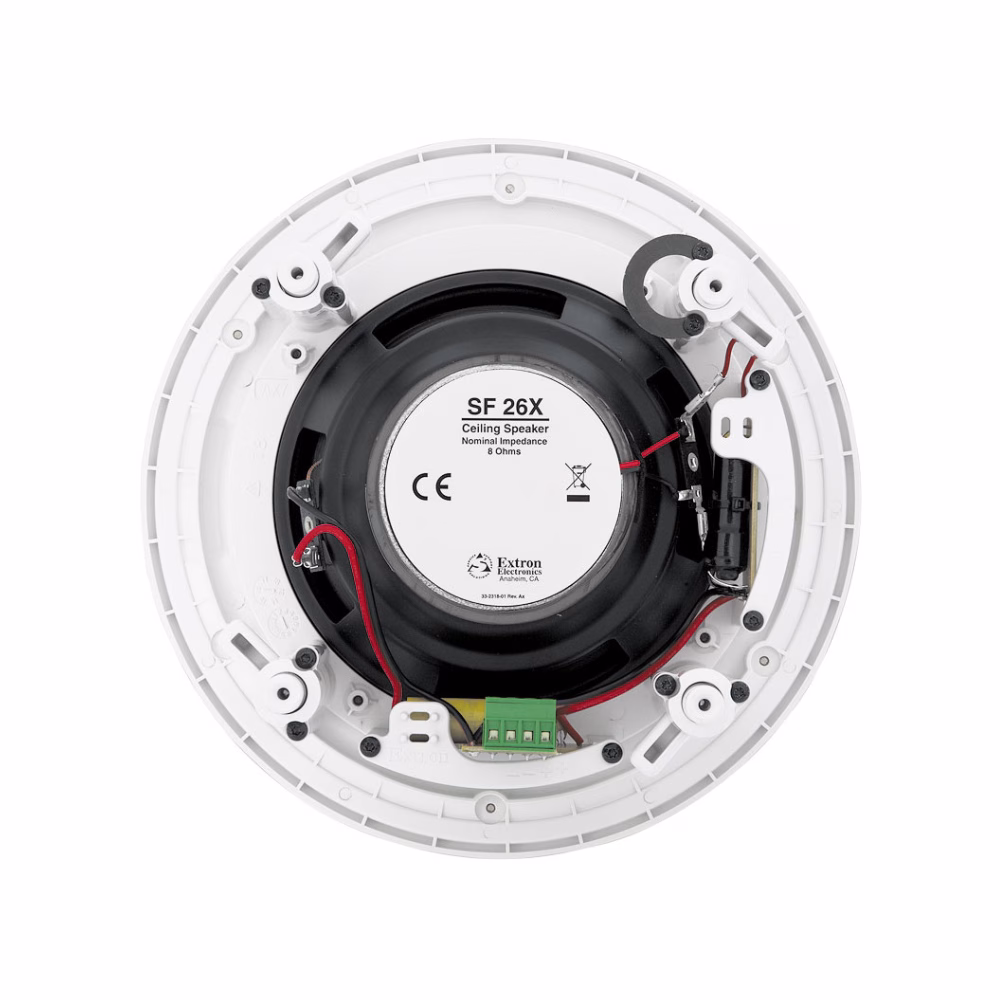

| Input connector | (1) 5 mm captive screw connector, 4 pole with loop-through |
| General | |
| Package | 2 speakers (1 pair) |
| Included accessories | Cutout template, setup guide, 2 grille hooks |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Overload protection | Full range power limiter, protecting the tweeter, woofer, and crossover |
| Mounting | Ceiling mountable by itself or with optional ceiling mount kit |
| Baffle type | Plastic, open back, infinite baffle design |
| Outer dimensions | 3.0″ H x 9.0″ diameter (75.0 mm H x 228.6 mm diameter) From front/bottom of the ceiling tile to the top of withdrawn locking arms |
| Cutout dimensions | 7.6″ diameter (194 mm diameter) |
| Product weight | 2.6 lbs (1.2 kg) each |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE |
| Product warranty | 5 years parts and labor |

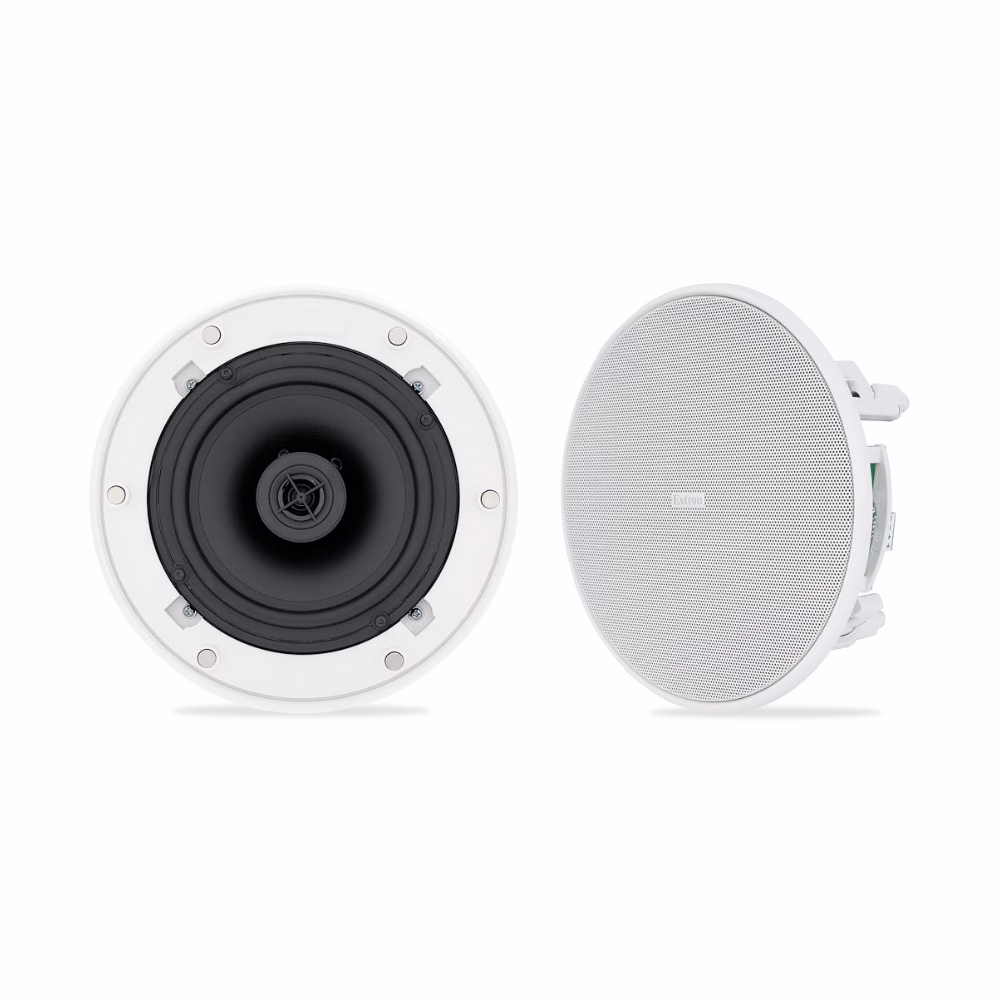

The Extron SoundField® SF 26X is a two-way ceiling speaker featuring an open back and coaxial dual driver design for use in non-plenum airspace environments. The driver complement includes a 6.5" (165 mm) woofer coupled to a 3/4" (19 mm) ferrofluid-cooled dome tweeter. The SF 26X provides a frequency range of 50 Hz to 20 kHz for accurate voice and detailed music reproduction. This speaker offers a nominal impedance of 8 ohms, and is engineered with a wide, uniform 107° conical coverage and uncolored off-axis response. The SF 26X features a thin-edged bezel for a refined appearance on the ceiling, and a magnetically attached grille.
Music reproduction is enhanced with the exceptional low-frequency response of the polypropylene woofer, which is specifically designed for infinite baffle environments, and extends the frequency range down to 50 Hz. The dome tweeter provides wide mid and high frequency dispersion for optimal area coverage.
This SoundField Series speaker is ideally suited for overhead distributed audio applications for music and voice in classrooms, conference rooms, and boardrooms.
The SF 26X is designed for 8 ohm direct connection to power amplifiers, and provides a simple means to wire speakers in parallel for 4 ohm amplifier operation. It features a power rating of 25 watts continuous pink noise and 50 watts continuous program capacity.
SF 26X speakers are sold in pairs and include a 5 year parts and labor warranty.
The SF 26X features a thin-edged bezel for a refined appearance on the ceiling. The grille attaches magnetically to the baffle and quickly snaps into place. The white grille and bezel can be painted to match the architectural elements of the environment. If installing the SF 26X into a ceiling tile, the optional Ceiling Mount Kit is recommended to prevent deforming or breaking the ceiling tile.
Features
- Open back, infinite baffle design
- 8 ohm nominal impedance
- 6.5" (165 mm) polypropylene woofer
- 3/4" (19 mm) ferrofluid-cooled dome tweeter
- Frequency range: 50 Hz to 20 kHz
- 25 watts continuous pink noise
50 watts continuous program - 107° conical dispersion
- Internal driver overload protection
- Thin bezel and magnetically attached grille
- Spring-loaded locking arms for quick ceiling installation
- Optional Tile Bridge Ceiling Mount Kit available for installation into a suspended T-bar ceiling, part # 70-1265-01 – includes C-rings & V-rails
- Four pole captive screw connector simplifies parallel speaker wiring

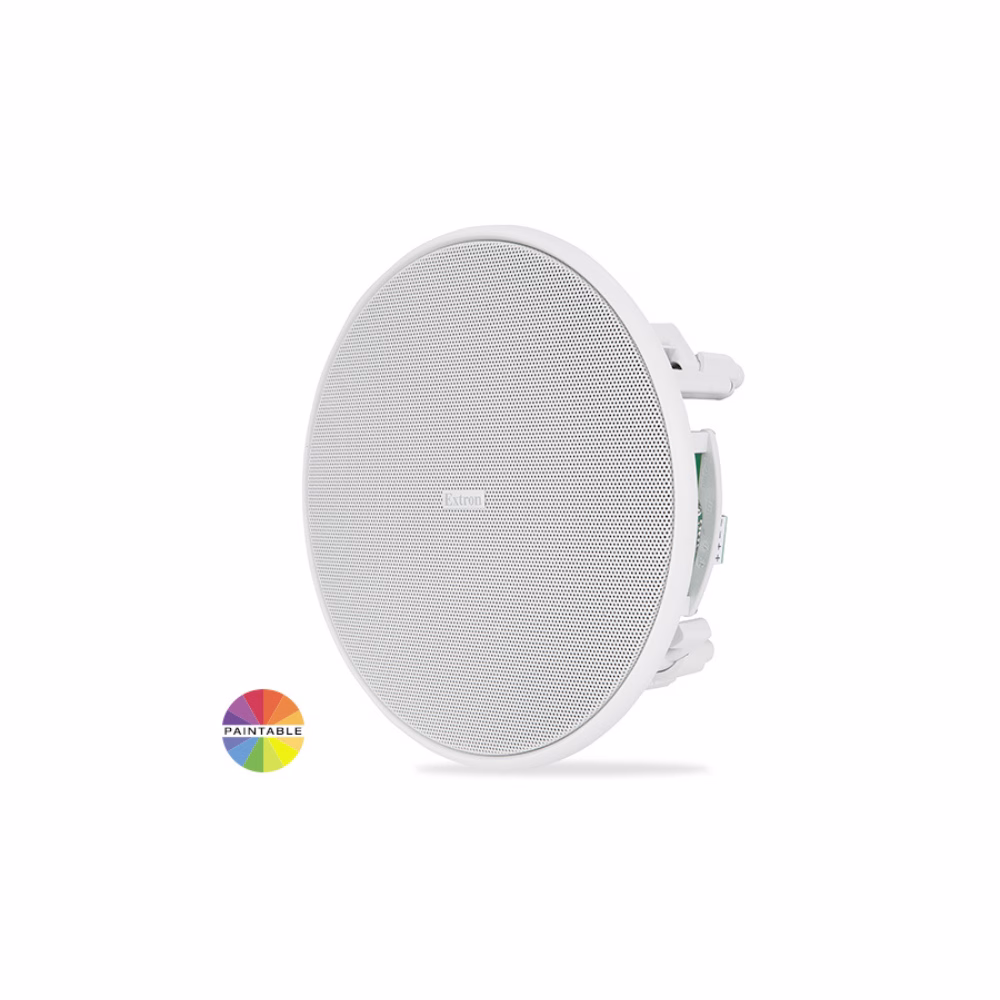

- Grille and bezel are available in white only and may be painted to match environment
- 5 year parts and labor warranty
