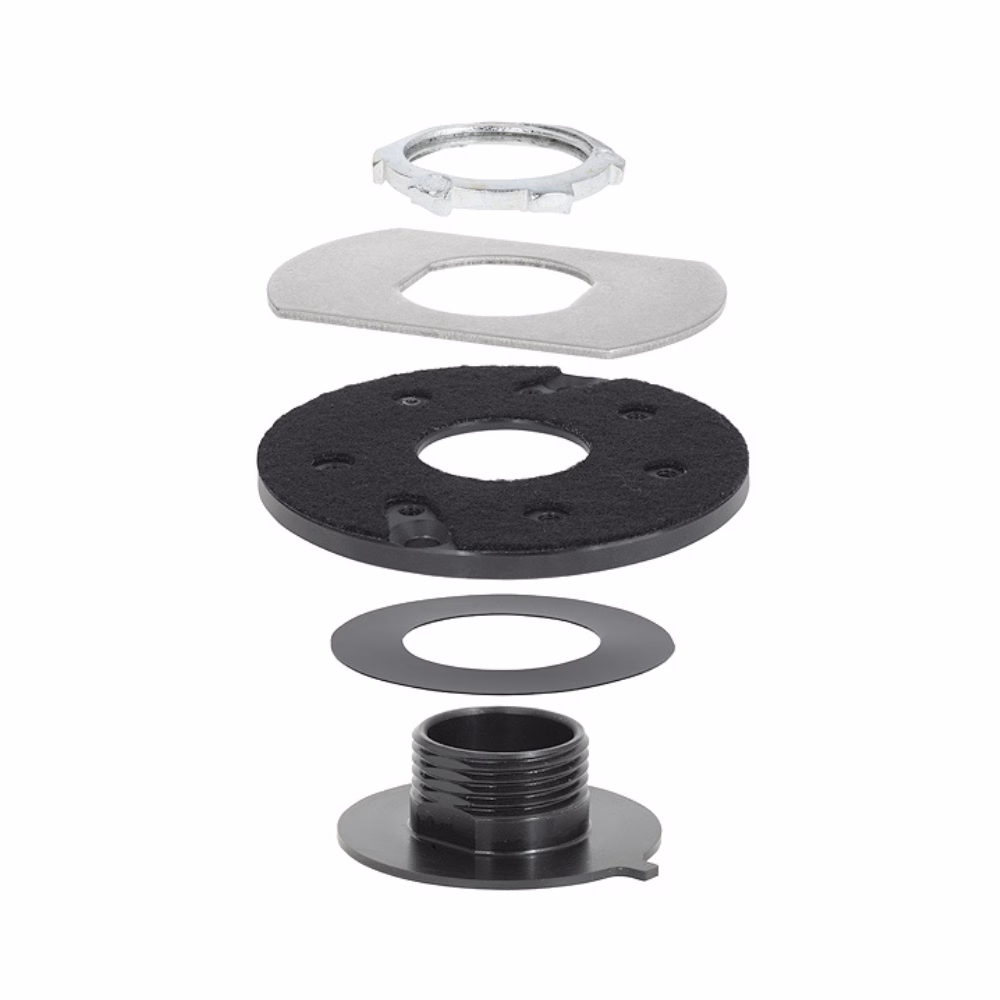

SMA-1 – Swivel Mount Adapter
Key Features
- Provides swivel capability for the SMB 1 and SMB 303 and select tabletop TouchLink and TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the surface mount boxes or tabletop touchpanels to prevent wear and damage to the surface on which it is mounted
| SMA-1 | |||
| General | |||
|---|---|---|---|
| Mounting | |||
| Furniture mount | Flat surface mountable | ||
| Adjustment ranges | The SMA-1 can be rotated horizontally ±180° from the installed position | ||
| Material | Steel | ||
| Dimensions | 0.7″ H x 3.0″ diameter (1.70 cm H x 7.6 cm diameter) | ||
 | |||
| Product weight | 0.1 lb (<0.1 kg) | ||
| Shipping weight | 1 lbs (0.5 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | |||
| Safety | TBD | ||
| Product warranty | 3 years parts and labor | ||
| |||
The SMA-1 Swivel Mount Adapter is designed for use with the SMB 1 and SMB 303 Surface Mount Boxes and select tabletop TouchLink and TouchLink Pro touchpanels. It provides a method for rotating the box to provide easy access for multiple users. The SMA-1 provides multiple stop points so the installer can precisely determine the degree of rotation for easy access and prevention of cable strain and tangling. The SMA-1 elevates the surface mount boxes or tabletop touchpanels slightly to prevent wear and damage to the surface on which it is mounted.
Features
- Provides swivel capability for the SMB 1 and SMB 303 and select tabletop TouchLink and TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the surface mount boxes or tabletop touchpanels to prevent wear and damage to the surface on which it is mounted
