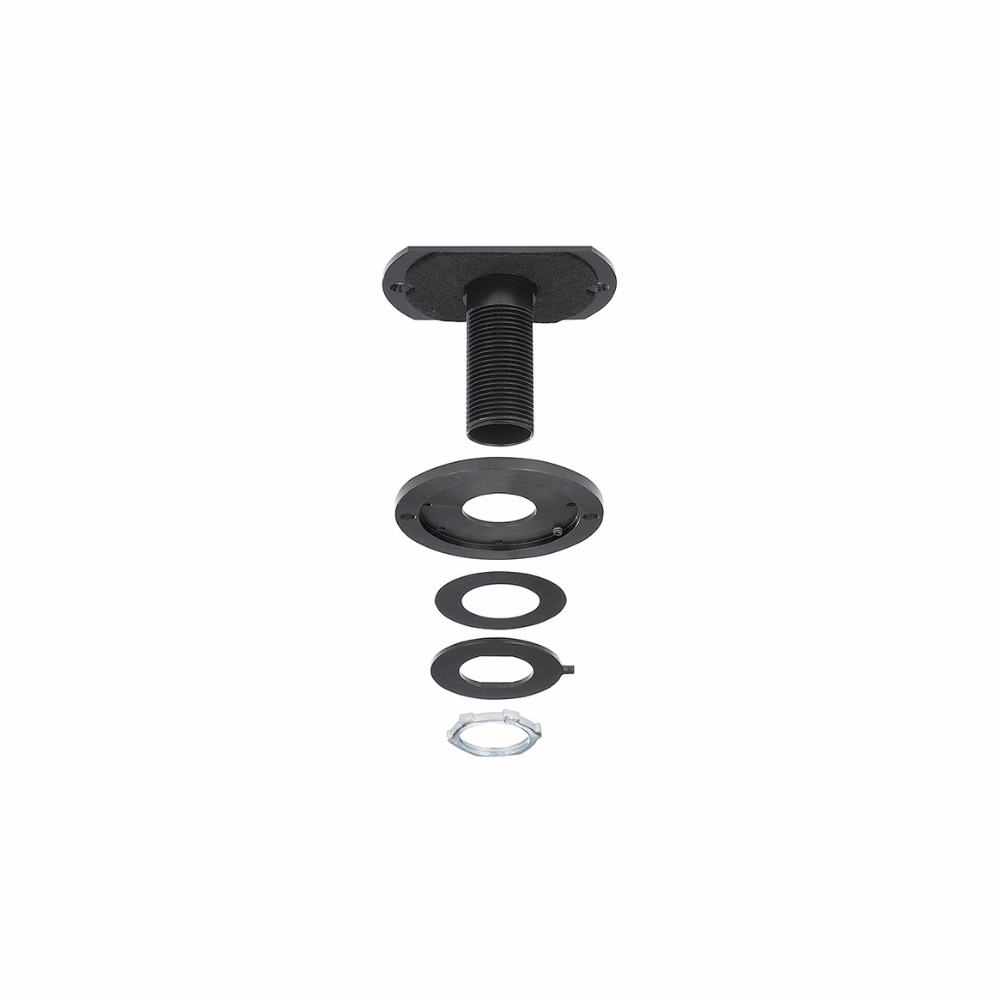

SMA-2 – Swivel Mount Adapter
Key Features
- Provides swivel capability for TLP Pro 25 Series and TLP Pro 35 Series Tabletop TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the tabletop touchpanel to prevent wear and damage to the surface on which it is mounted
| SMA-2 | |||
| General | |||
|---|---|---|---|
| Mounting | |||
| Furniture mount | Flat surface mountable | ||
| Adjustment ranges | The SMA-2 can be rotated horizontally ±180° from the installed position | ||
| Material | Metal | ||
| Table thickness | Minimum: 0.75″ (1.91 cm) Maximum: 1.5″ (3.81 cm) | ||
| Dimensions | 2.40″ H x 3.40″ diameter (6.09 cm H x 8.64 cm diameter) | ||
 | |||
| Product weight | 0.63 lb (0.28 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | |||
| Environmental | Complies wih the appropriate requirements of RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||
| |||
The SMA-2 Swivel Mount Adapter is designed for use with the TLP Pro 525T, TLP Pro 535T, TLP Pro 725T, TLP Pro 835T, TLP Pro 1025T, TLP Pro 1035T, and TLP Pro 1535T. When mounted on the SMA-2, a TouchLink touchpanel easily rotates for easy viewing and access for multiple users. The SMA-2 provides multiple stop points so the installer can precisely determine the degree of rotation for easy access and prevention of cable strain and tangling. The SMA-2 elevates the tabletop touchpanel slightly to prevent wear and damage to the surface on which it is mounted.
Features
- Provides swivel capability for TLP Pro 25 Series and TLP Pro 35 Series Tabletop TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the tabletop touchpanel to prevent wear and damage to the surface on which it is mounted
