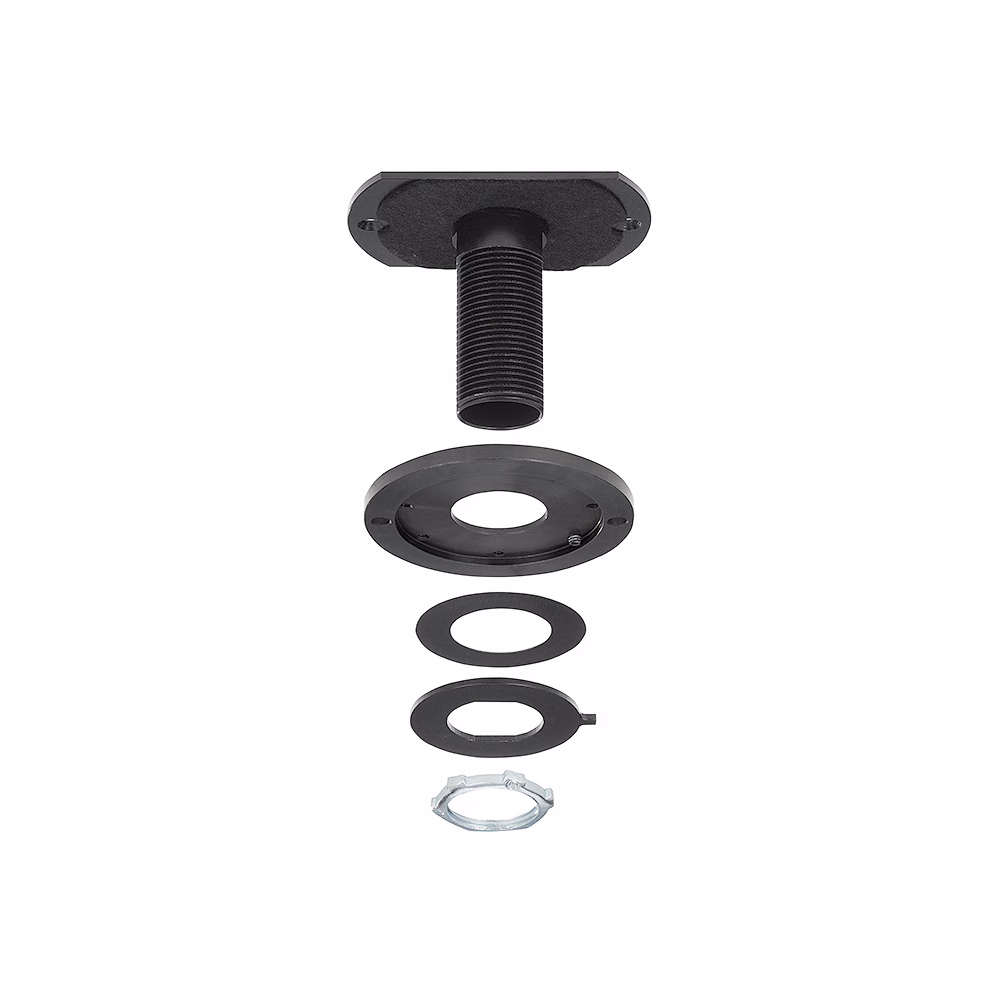

SMA-2 – Swivel Mount Adapter
Key Features
- Provides swivel capability for the TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the tabletop touchpanel to prevent wear and damage to the surface on which it is mounted
| SMA-2 | |
| General | |
|---|---|
| Mounting | |
| Furniture mount | Flat surface mountable |
| Adjustment ranges | The SMA-2 can be rotated horizontally ±180° from the installed position |
| Material | Metal |
| Table thickness | Minimum: 0.75″ (1.91 cm) Maximum: 1.5″ (3.81 cm) |
| Dimensions | 2.40″ H x 3.40″ diameter (6.09 cm H x 8.64 cm diameter) |
 | |
| Product weight | 0.63 lb (0.28 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Environmental | Complies wih the appropriate requirements of RoHS, WEEE |
| Product warranty | 3 years parts and labor |
The SMA-2 Swivel Mount Adapter is designed for use with the TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T. When mounted on the SMA-2, a TouchLink touchpanel easily rotates for easy viewing and access for multiple users. The SMA-2 provides multiple stop points so the installer can precisely determine the degree of rotation for easy access and prevention of cable strain and tangling. The SMA-2 elevates the tabletop touchpanel slightly to prevent wear and damage to the surface on which it is mounted.
Features
- Provides swivel capability for the TLP Pro 525T, TLP Pro 725T, and TLP Pro 1025T TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the tabletop touchpanel to prevent wear and damage to the surface on which it is mounted
