SMB 111T – Surface Mount Box for TLP Pro 300M and TLS 300M
Key Features
- Designed for US one-gang TLP Pro 300M touchpanels and TLS 300M scheduling panels
- Contoured design complements any environment
- Suitable for tabletop and lectern applications

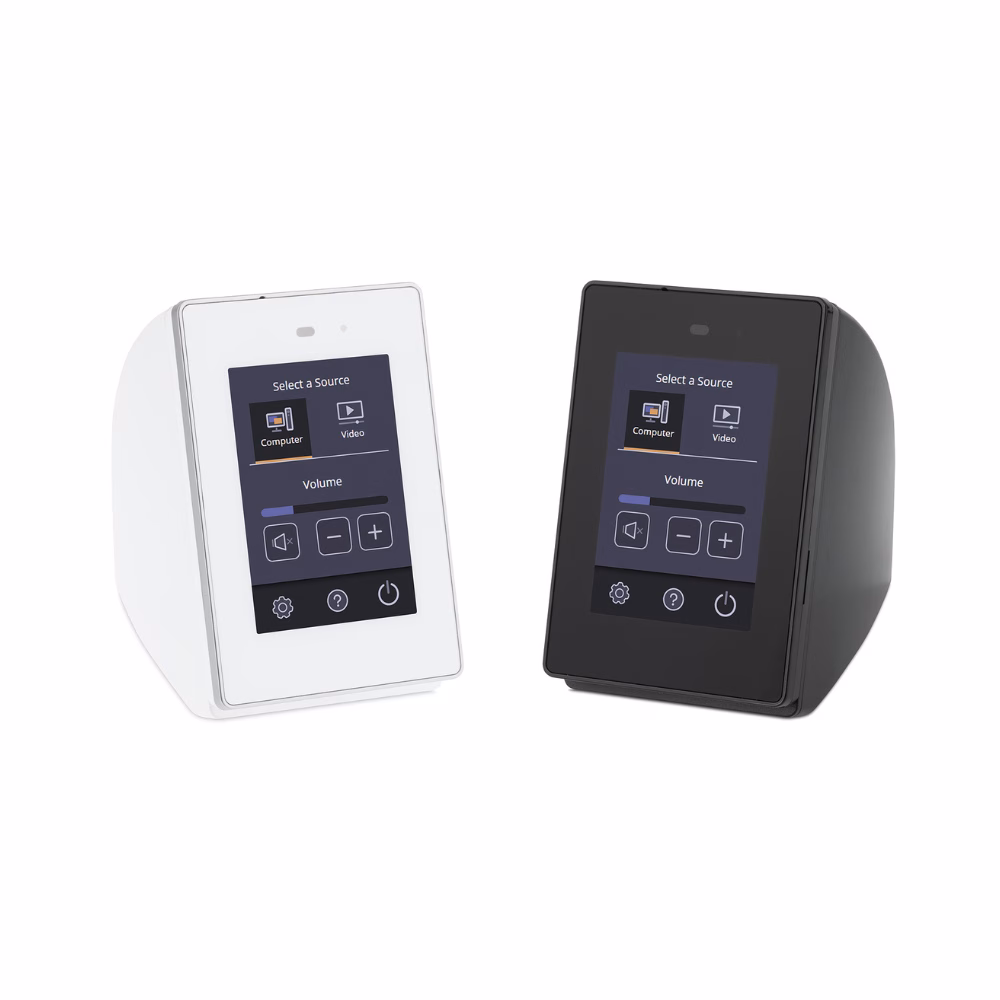

- Available in a black or white finish
- Optional Table Clamp Kit secures the box without damaging the surface
| SMB 111T | |||
| General | |||
|---|---|---|---|
| Mounting | Enclosure can be placed on a table, surface mounted with the included wood screws, or clamped to a table with an optional Table Clamp Kit*. *Table Clamp range is 0.38″ to 2.00″ (10 mm – 51 mm.) | ||
| Enclosure type | Metal body, high impact plastic end caps. | ||
| Enclosure dimensions | 2.90″ W x 4.40″ H x 4.35″ D (1 gang) (74 mm W x 112 mm H x 111 mm D) | ||
| Front angle | 115 degrees | ||
| Cable openings | 1x 1.00″ x 1.30″ (25 mm x 33 mm) Rear slotted opening: 0.40″ H (10 mm H) running the width of enclosure | ||
| Product weight | 0.5 lbs (0.3 kg) | ||
| Regulatory compliance | CE, Complies with the appropriate requirements of RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
 | |||
| |||

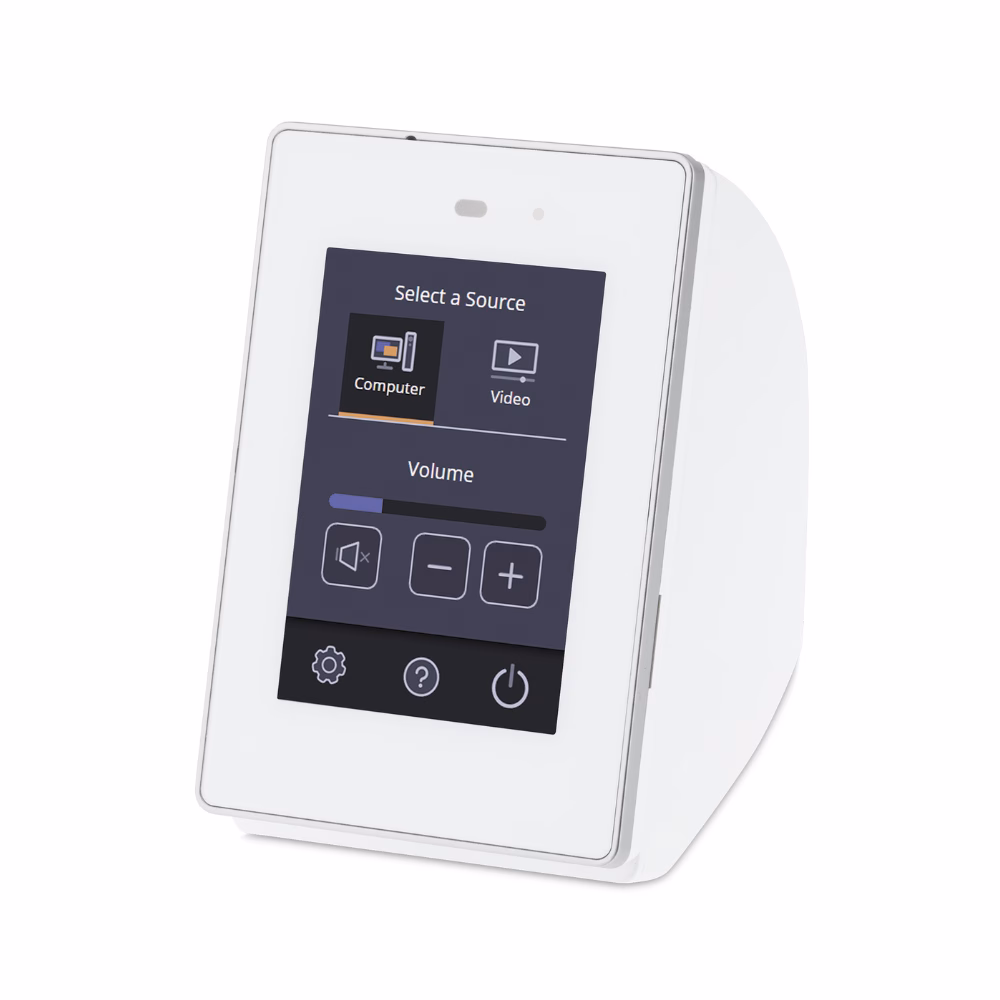

The Extron SMB 111T is a one-gang, Surface Mount Box specifically designed for the external mounting of Extron TLP Pro 300M touchpanels and TLS 300M scheduling panels. The SMB 111T features a stylish contour design suitable for any flat surface, including tabletops and lecterns, with convenient access to connectors and control interfaces. An optional SMB Table Clamp Kit secures SMB 111T box to table edge without marring the surface.
Features
- Designed for US one-gang TLP Pro 300M touchpanels and TLS 300M scheduling panels
- Contoured design complements any environment — Subtly blends in to most environments without being overtly obtuse.
- Suitable for tabletop and lectern applications — Provides control and connectivity at arm’s reach.
- Available in a black or white finish
- Optional Table Clamp Kit secures the box without damaging the surface — Provides an alternate table edge mounting method in a durable black or white finish.
