SMK 1 – Surface Mount Kit for TLP Pro 525M and TLS 525M
Key Features
- Used to securely mount a TLP Pro 525M or TLS 525M on a wall or other flat surface, including glass
- Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
| SMK 1 | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to glass, masonry, and other flat surfaces | ||
| Enclosure material | High impact plastic | ||
 | |||
| Enclosure dimensions | 3.78″ H x 5.69″ W x 0.33″ D (96 mm H x 145 mm W x 8.4 mm D) | ||
| Product weight | TBD lbs (TBD kg) | ||
| Regulatory compliance | CE, RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||

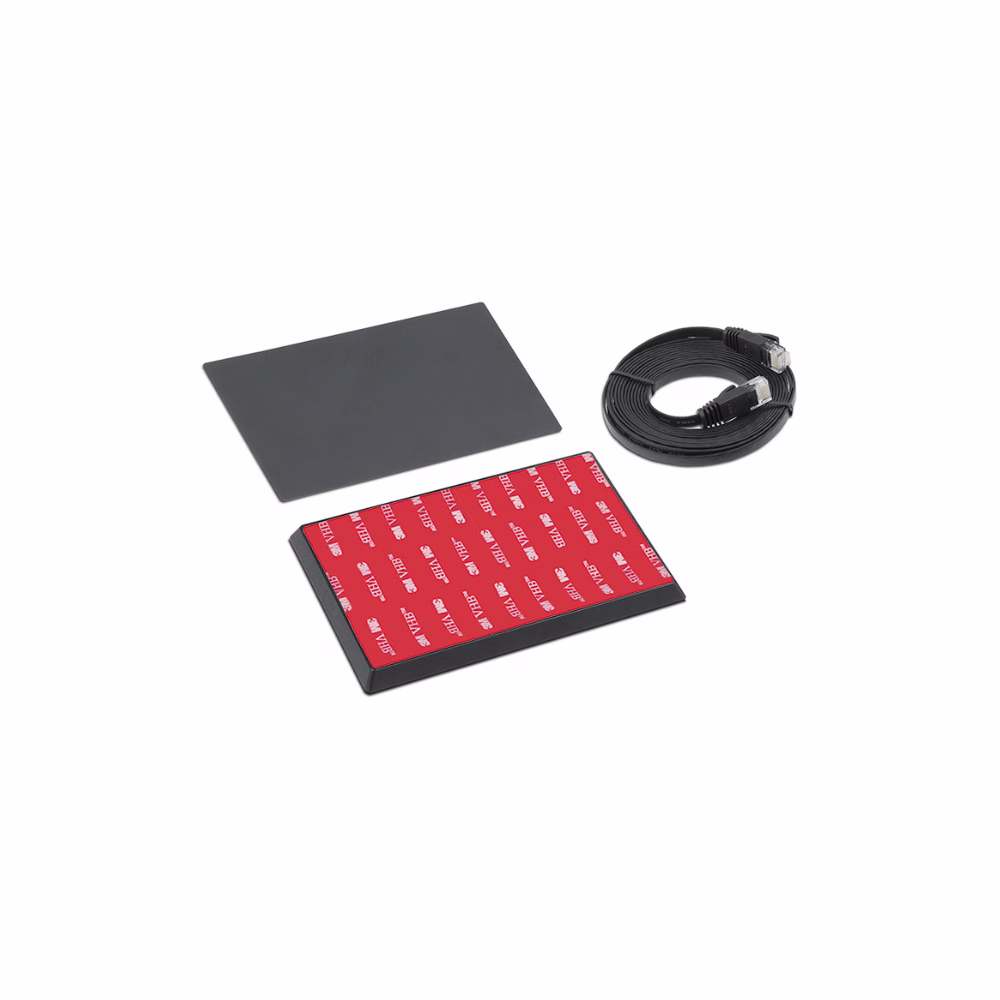

The Extron SMK 1 is a surface mount kit specifically designed for the TLP Pro 525M and TLS 525M. It allows either touchpanel to be mounted securely on a wall or other flat surface, including glass. From outside the room, the low-profile design of the SMK 1 maintains the sleek, stylish appearance of the touchpanel; while inside, the included glass overlay provides a clean discreet look. The SMK 1 includes a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TLP Pro 525M or TLS 525M on a wall or other flat surface, including glass
- Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
