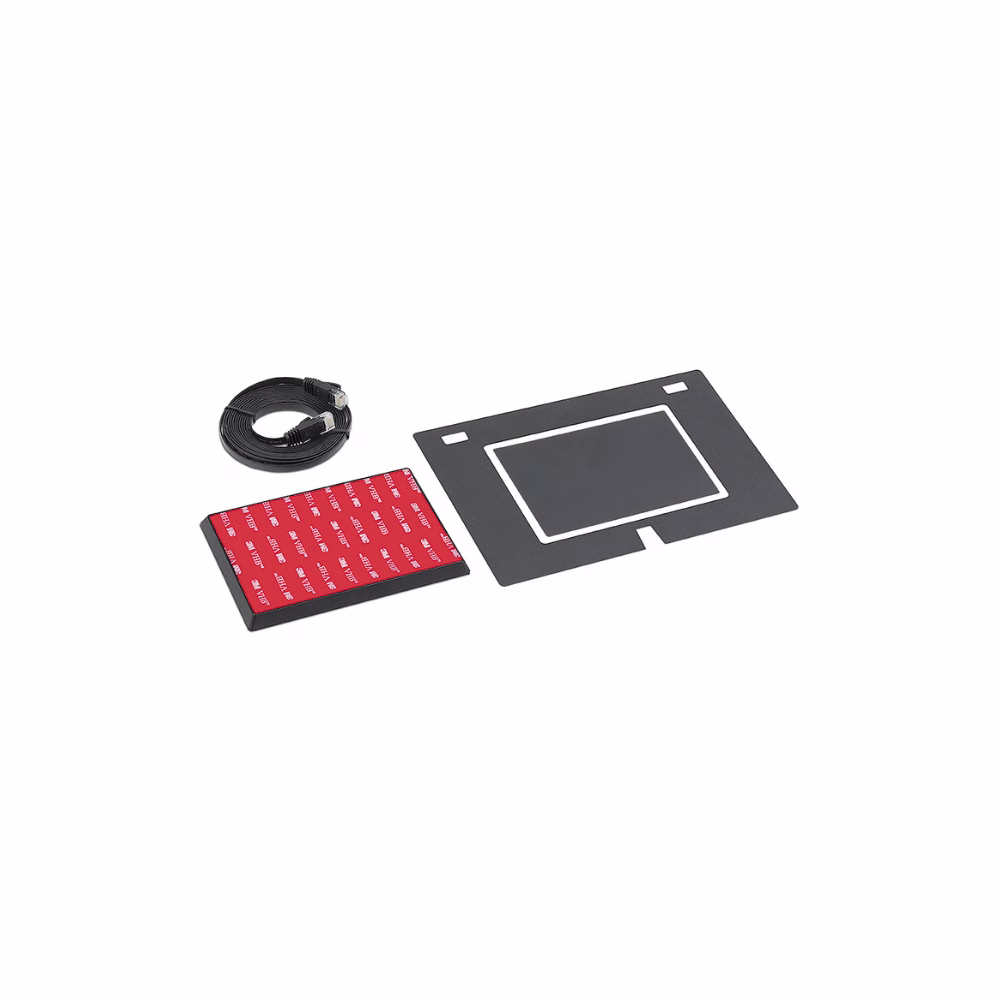

SMK 3 – Surface Mount Kit for TLP Pro 1025M and TLS 1025M
Key Features
- Used to securely mount a TLP Pro 1025M or TLS 1025M on a wall or other flat surface, including glass
- Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
| SMK 3 | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to glass, masonry, and other flat surfaces | ||
 | |||
| Enclosure dimensions | 4.08″ H x 5.93″ W x 0.34″ D (104 mm H x 151 mm W x 8.6 mm D) | ||
| Product weight | 0.09 lbs (0.04 kg) | ||
| Enclosure material | High impact plastic | ||
| Regulatory compliance | CE, RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||
The Extron SMK 3 is a surface mount kit specifically designed for the TLP Pro 1025M and TLS 1025M. It allows either touchpanel to be mounted securely on a wall or other flat surface, including glass. From outside the room, the low-profile design of the SMK 3 maintains the sleek, stylish appearance of the touchpanel; while inside, the included glass overlay provides a clean discreet look. The SMK 3 includes a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TLP Pro 1025M or TLS 1025M on a wall or other flat surface, including glass
- Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
