SMK 35 Series – Surface Mount Kits for TLP Pro 35 Touchpanels
Key Features
- Used to securely mount a TLP Pro 535M, TLP Pro 835M, or TLP Pro 1035M on a wall or other flat surface, including glass
- Kit includes pre-adhered adhesive to simplify installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knockouts for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
| SMK 4, SMK 5, and SMK 6 | |||
| General | |||
|---|---|---|---|
| Mounting | Mounts to glass, masonry, and other flat surfaces | ||
| Enclosure material | High impact plastic | ||
| Enclosure dimensions | |||
| SMK 4 | 2.45″ H x 5.03″ W x 0.64″ D (13.3 cm H x 48.3 cm W x 16 mm D) (3U high, full rack wide) | ||
| SMK 5 | 2.45″ (4U) H x 7.08″ W x 0.64″ D (62 mm H x 128 mm W x 16 mm D) (4U high, full rack wide) | ||
| SMK 6 | 5.38″ (6U) H x 8.80″ W x 0.64″ D (137 mm H x 223 mm W x 16 mm D) (6U high, full rack wide) | ||
 | |||
| Product weight | |||
| SMK 4 | 0.05 lbs (0.02 kgs) | ||
| SMK 5 | 0.15 lbs (0.07 kgs) | ||
| SMK 6 | 0.2 lbs (0.09 kgs) | ||
| Regulatory compliance | Complies with the appropriate requirements of RoHS, WEEE | ||
| Product warranty | 3 years parts and labor | ||
| |||

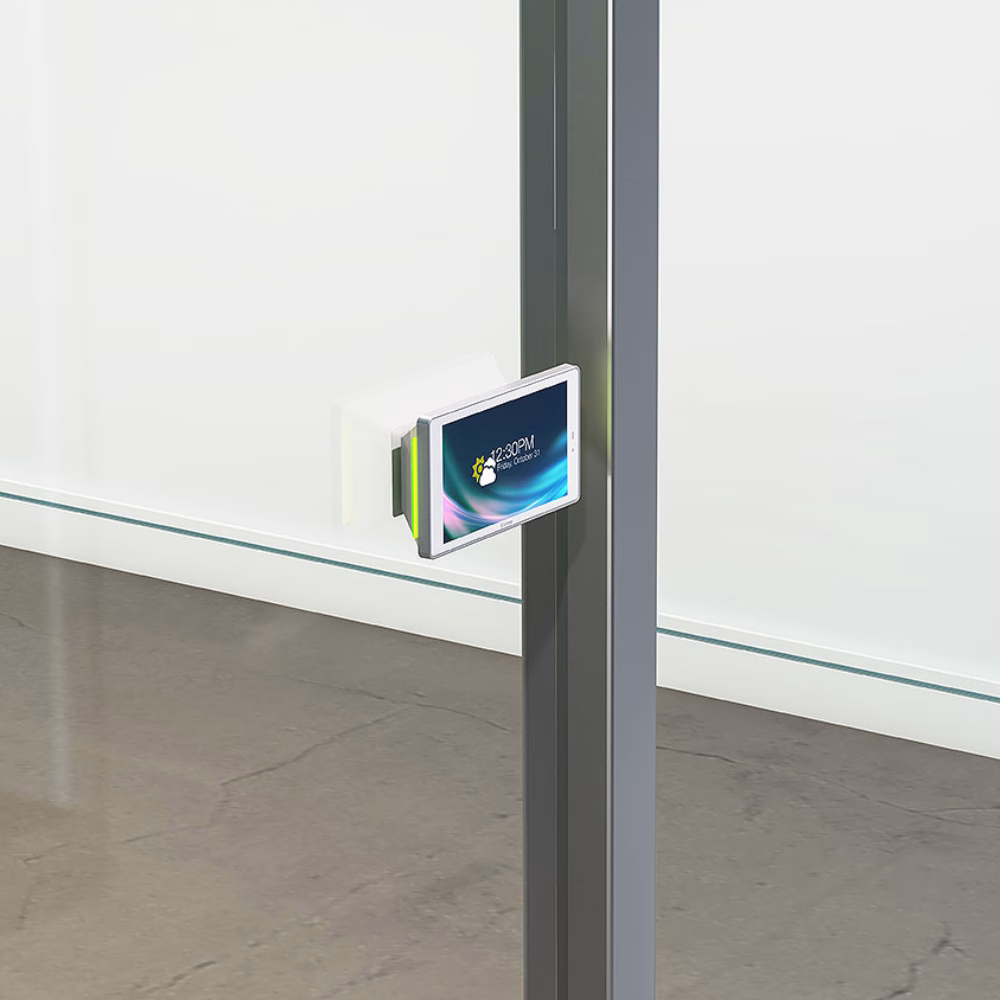

The Extron SMK 35 Series of surface mount kits are specifically designed for the TLP Pro 35 Series touchpanels. They allow a touchpanel to be mounted securely on a wall or other flat surface, including glass. From outside the room, the low-profile design of these surface mount kits maintains the refined, modern look of the touchpanel; while inside, the included glass overlay provides a clean discreet appearance. The SMK 35 Series kits include several mounting accessories that aid in installation of the touchpanel.
Features
- Used to securely mount a TLP Pro 535M, TLP Pro 835M, or TLP Pro 1035M on a wall or other flat surface, including glass
- Kit includes pre-adhered adhesive to simplify installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes knockouts for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
