SPFE Series - SPFE Series - Outdoor LED Display

SPFE Series – SPFE Series – Outdoor LED Display

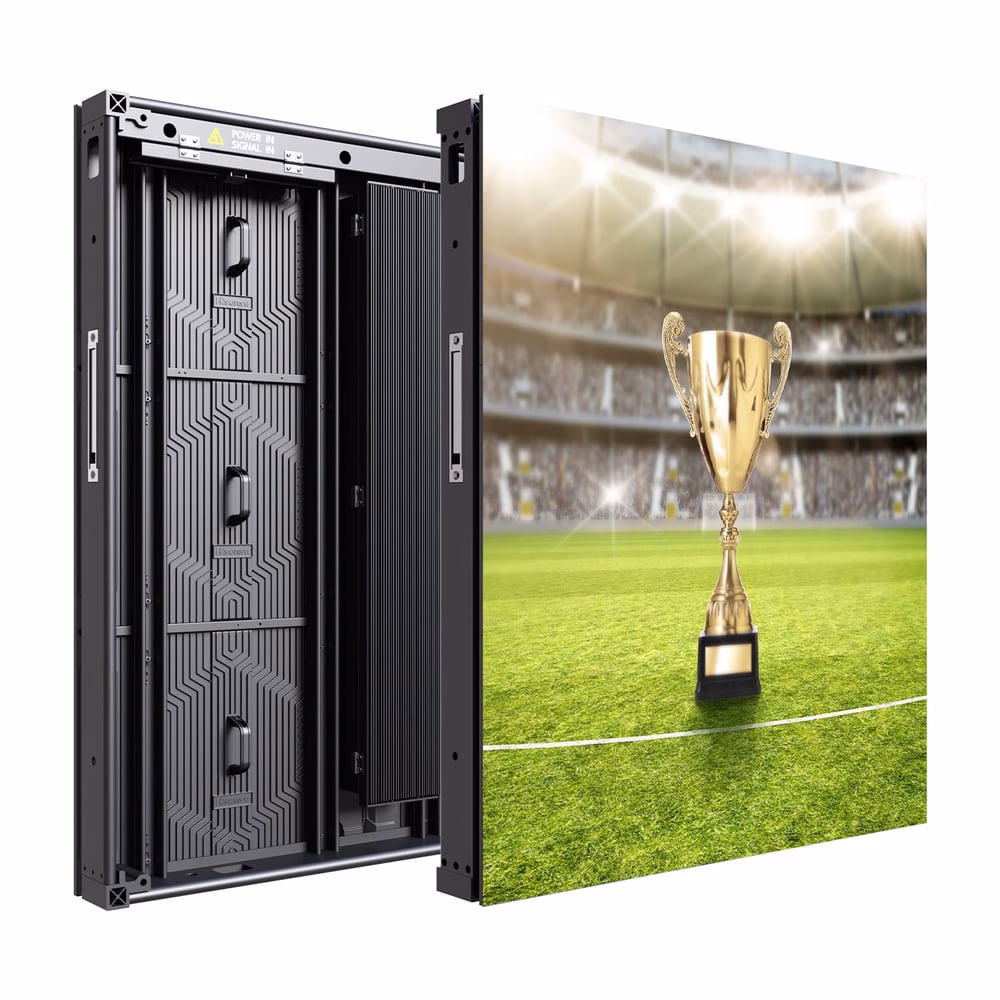

Specifically engineered for stadium environments, the SPFE Series LED solutions offer versatile applications. Fully compliant with UEFA technical specifications, they are ideal for use as perimeter displays. The 8:9 cabinet option also makes them perfect for ribbon and scoreboard displays. These ultra-reliable modules deliver high brightness and energy-efficient performance, featuring IP66 protection on both the front and rear sides. With a high color depth and refresh rate, the SPFE Series ensures outstanding image quality and a seamless live viewing experience.

Whatsapp
Categories: , Brand:

P6.67mm

  • Pixel Configuration: SMD
  • Module Resolution (W x H): 60 x 45
  • Module Dimension (W x H): 400 x 300 mm
  • Cabinet Resolution (W x H): 240 x 135
  • Cabinet Dimension (W x H x D): 1,600 x 900 x 90 mm / 62.99 x 35.43 x 3.54 inch // 800 x 900 x 90 mm / 31.50 x 35.43 x 3.54 inch
  • No. of Modules per Cabinet (W x H): 4 x 3 / 2 x 3
  • Cabinet Weight: 51.5 kg / 113.54 lbs // 25 kg / 55.12 lbs
  • Cabinet Materials: Profile Aluminium
  • Brightness (Typ.): 8,000 nits
  • Contrast Ratio: 8,000:1
  • Visual Viewing Angle (H x V): 160°x 90°
  • Bit Depth: 14 bit
  • Color Temperature: 6,500 + 500K
  • Max Power Consumption per Unit Area: *580 W/m2@8,000 nits / *440 W/m2@6,000 nits
  • Avg Power Consumption per Unit Area: *175 W/m2
  • Power Supply: 100~240 V AC
  • Refresh Rate: 3,840 (7,680 Customizable)
  • Operating Temp / Humidity: -40~55°C / 10~90% RH
  • Storage Temp / Humidity: -40~60°C / 10~80% RH
  • IP Rating: Front IP66 & Rear IP66
  • Lifetime: 100,000 Hrs
  • Certification: CE, CB, FCC, cTUVus
  • Maintenance: Front and Rear Access

P8.33mm

  • Pixel Configuration: SMD
  • Module Resolution (W x H): 48 x 36
  • Module Dimension (W x H): 400 x 300 mm
  • Cabinet Resolution (W x H): 192 x 108
  • Cabinet Dimension (W x H x D): 1,600 x 900 x 90 mm / 62.99 x 35.43 x 3.54 inch // 800 x 900 x 90 mm / 31.50 x 35.43 x 3.54 inch
  • No. of Modules per Cabinet (W x H): 4 x 3 / 2 x 3
  • Cabinet Weight: 51.5 kg / 113.54 lbs // 25 kg / 55.12 lbs
  • Cabinet Materials: Profile Aluminium
  • Brightness (Typ.): 8,000 nits
  • Contrast Ratio: 8,000:1
  • Visual Viewing Angle (H x V): 160°x 90°
  • Bit Depth: 14 bit
  • Color Temperature: 6,500 + 500K
  • Max Power Consumption per Unit Area: *580 W/m2@8,000 nits / *440 W/m2@6,000 nits
  • Avg Power Consumption per Unit Area: *175 W/m2
  • Power Supply: 100~240 V AC
  • Refresh Rate: 3,840 (7,680 Customizable)
  • Operating Temp / Humidity: -40~55°C / 10~90% RH
  • Storage Temp / Humidity: -40~60°C / 10~80% RH
  • IP Rating: Front IP66 & Rear IP66
  • Lifetime: 100,000 Hrs
  • Certification: CE, CB, FCC, cTUVus
  • Maintenance: Front and Rear Access

P10 mm

  • Pixel Configuration: SMD
  • Module Resolution (W x H): 40 x 30
  • Module Dimension (W x H): 400 x 300 mm
  • Cabinet Resolution (W x H): 160 x 90
  • Cabinet Dimension (W x H x D): 1,600 x 900 x 90 mm / 62.99 x 35.43 x 3.54 inch // 800 x 900 x 90 mm / 31.50 x 35.43 x 3.54 inch
  • No. of Modules per Cabinet (W x H): 4 x 3 / 2 x 3
  • Cabinet Weight: 51.5 kg / 113.54 lbs // 25 kg / 55.12 lbs
  • Cabinet Materials: Profile Aluminium
  • Brightness (Typ.): 8,000 nits
  • Contrast Ratio: 8,000:1
  • Visual Viewing Angle (H x V): 160°x 90°
  • Bit Depth: 14 bit
  • Color Temperature: 6,500 + 500K
  • Max Power Consumption per Unit Area: *580 W/m2@8,000 nits / *440 W/m2@6,000 nits
  • Avg Power Consumption per Unit Area: *175 W/m2
  • Power Supply: 100~240 V AC
  • Refresh Rate: 3,840 (7,680 Customizable)
  • Operating Temp / Humidity: -40~55°C / 10~90% RH
  • Storage Temp / Humidity: -40~60°C / 10~80% RH
  • IP Rating: Front IP66 & Rear IP66
  • Lifetime: 100,000 Hrs
  • Certification: CE, CB, FCC, cTUVus
  • Maintenance: Front and Rear Access

Dual-Side Access with Safety Door

The SPFE Series supports both front and rear maintenance, offering exceptional installation flexibility and efficient servicing. Specially designed for perimeter displays, the 16:9 cabinet can be rotated to create an emergency safety door.

Anti-collision Design

The display incorporates a reinforced face shield with a cushioning effect to protect the LED modules from frontal impacts, ensuring reliable panel protection. Its impact-resistant top cover improves reliability further.

Vibrant True-to-life Colors

Precise color reproduction elevates on-site audience engagement while driving higher commercial advertising revenue.

Low Power Consumption

The display’s extremely low power consumption, which has decreased by 30% compared with the conventional outdoor LED displays, slashes operational costs.

Versatile Outdoor Deployment

Flexible application with multiple sizes and configurations available, suitable for stadium perimeter fencing, scoreboards, and ribbon displays.

IP66 Display Reliability

The display blocks sand, dust and floating particles completely, resists extreme weather conditions such as torrential rain and ensures reliable 24/7 operation while significantly reducing maintenance costs.
