TLP Pro 525T – 5″ Tabletop TouchLink Pro Touchpanel
Key Features
- 5″ capacitive touchscreen with 800×480 resolution and 24-bit color depth
- Gorilla Glass® screen is tough, scratch, and smudge-resistant
- Faster, quad-core processing and eight times more memory
- Works with any Extron control processor and HC 400 Series system
- Transform your touchpanel into an all-in-one Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter
- Power over Ethernet provides power and communication over a single Ethernet cable
| TLP Pro 525T Series | |||
| Display | |||
|---|---|---|---|
| Screen type | TFT Active matrix color LCD | ||
| Size | 5″ (12.7 cm), measured diagonally | ||
| Resolution | 800×480 (WVGA) | ||
| Pixel density | 186.6 PPI | ||
| Aspect ratio | 5:3 | ||
| Color depth | 24 bit, 16.7 million colors | ||
| Transparency | 8 bit | ||
| Brightness | 850 nits (cd/m2) | ||
| Contrast | 700:1 | ||
| Backlight | LED | ||
| Viewing angle | ±70° horizontal, ±70° vertical | ||
| Touch screen | Capacitive | ||
| Storage | |||
| RAM | 2 GB | ||
| Storage | 8 GB | ||
| Ethernet | |||
| Connectors | 1 female RJ-45 connector | ||
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect | ||
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP,IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP | ||
| Default settings | Link speed and duplex level = autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 | ||
| Software | |||
| Configuration software | Global Configurator Plus and Professional, GUI Designer | ||
| Programming software | ControlScript Programing | ||
| Control apps | Extron Control | ||
| Resource management software | GlobalViewer Enterprise | ||
| Utilities | Toolbelt, Embedded web page | ||
| Sensors | |||
| Motion sensor | On/off | ||
| Light sensor | Auto/manual | ||
| USB | |||
| Quantity/type | 1 high-speed USB 2.0 | ||
| Connectors | 1 USB type A connector | ||
| Standards | USB 2.0, USB 1.1, USB 1.0 compatible | ||
| Max. data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) | ||
| Audio output | |||
| Speaker output | 1 mono, 86 dB 6SPL, 0.1 watt, 0.1 m, half space | ||
| Frequency response | 750 Hz to 20 kHz, ±5 dB | ||
| Playback format(s) | |||
| Container format | WAV (Microsoft RIFF) | ||
| Encoding | LPCM (uncompressed) | ||
| Bit depth | Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit | ||
| Sampling rate | Up to 192 kHz | ||
| Audio channels | Mono or stereo | ||
| General | |||
| Power supply | Not included | ||
| Power input requirements | Power over Ethernet (PoE 802.3af, class 3) | ||
| Power consumption — Power injector (XTP PI 100) | |||
| Device | 7.7 watts | ||
| Device and power injector | 10.0 watts | ||
| Auxiliary power output | |||
| USB | 5 VDC, 275 mA | ||
| Ambient temperature/humidity | Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, vents on back | ||
| Thermal dissipation — Power injector (XTP PI 100) | |||
| Device | 21.6 BTU/hr | ||
| Device and power injector | 29.4 BTU/hr | ||
| Mounting | Set on a tabletop | ||
| Enclosure type | Plastic | ||
 | |||
| Enclosure dimensions | 3.88″ H x 5.95″ W x 2.88″ D (9.9 cm H x 15.1 cm W x 7.3 cm D) | ||
| Product weight | 1.45 lbs (0.65 kg) | ||
| Regulatory compliance | BIS, CE, C-Tick, c-UL,FCC Class B, ICES, RoHS, UL, VCCI, WEEE | ||
| Product warranty | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year | ||
| |||
| |||

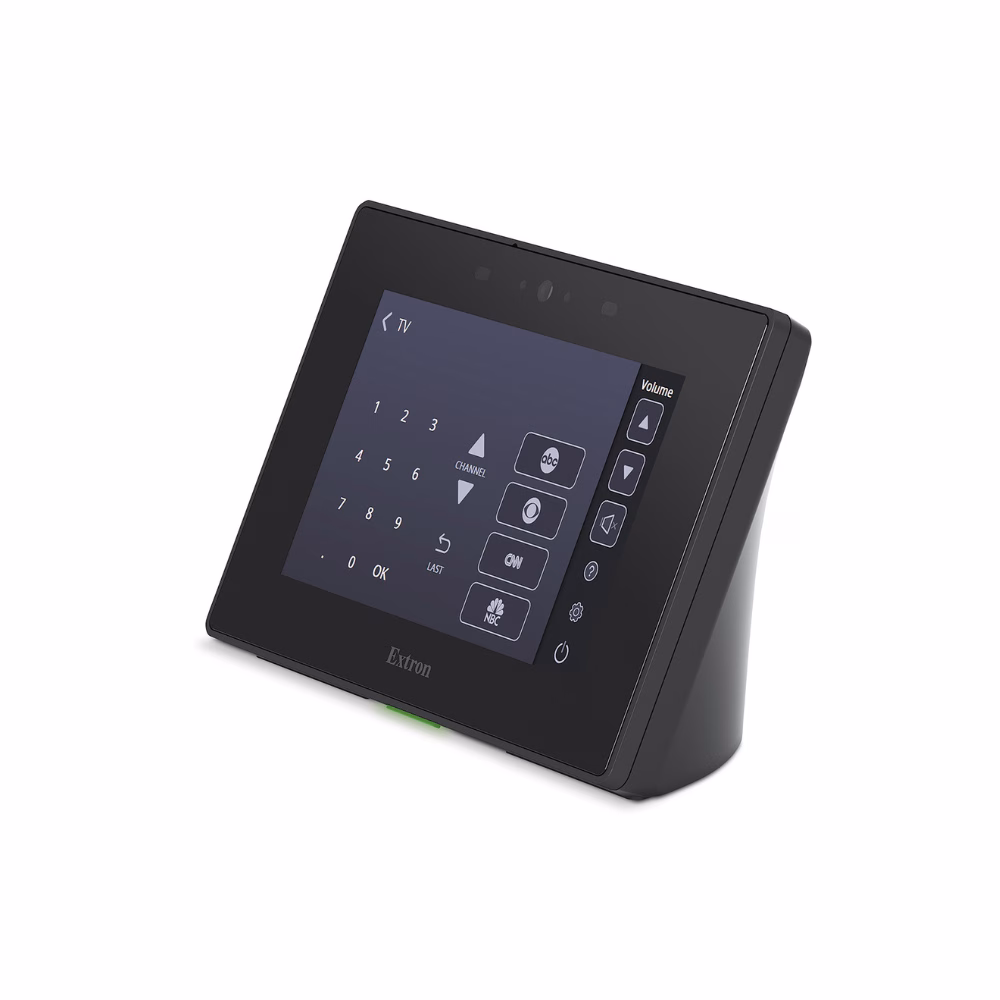

The Extron TLP Pro 525T is a 5″ tabletop TouchLink® Pro Touchpanel. We designed this first 5" tabletop model with many enhanced features, inside and out. In addition to the new, high-performance quad-core processor and eight times more memory, it also features a high resolution, 800x480 capacitive touchscreen built with scratch and smudge-resistant Corning® Gorilla Glass® and a distinctive enclosure with a sleek, gracefully-sweeping back. The TLP Pro 525T also features the convenience of PoE - Power over Ethernet, which allows it to receive power and communication over a single Ethernet cable. It is ideal for any environment requiring a stylish, tabletop touchpanel with a fully-customizable interface.
The TLP Pro 525T works with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable.
All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.
Transform This Touchpanel Into an All-in-One Pro xi Series Control System
Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices via Ethernet directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 1 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.
The Extron TLCA 1 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.
Features
- 5″ capacitive touchscreen with 800x480 resolution and 24-bit color depth — Vibrant edge-to-edge glass display with a more responsive control surface.
- Gorilla Glass® screen is tough, scratch, and smudge-resistant — Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
- Faster, quad-core processing and eight times more memory — Drastically-enhanced response and overall user experience
- Works with any Extron control processor and HC 400 Series system
- Transform your touchpanel into an all-in-one Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter — Supports up to eight Ethernet-controllable devices using GC Plus and 32 using GC Pro.
- Power over Ethernet provides power and communication over a single Ethernet cable
- Built-in speaker — Provides audible feedback from button presses.
- Light sensor adjusts screen brightness as the ambient room lighting changes
- Configurable red and green status lights indicate a room's availability or call status
- System connection status indicator provides visual feedback if the touchpanel is not communicating with a control processor
- High speed USB 2.0 port — For future expansion.
- Automatic clock synchronization allows touchpanel to display the accurate time and date
- Energy-saving features:
- Adjustable sleep timer puts touchpanel into sleep mode
- Motion detector wakes touchpanel - Fixed 65 degree viewing angle provides optimum viewing comfort while seated or standing
- Kensington lock support — Allows the touchpanel to be locked to a table or other flat surface.
- Manage, monitor, and control this device remotely using GVE - GlobalViewer Enterprise Resource Management software
- Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
- DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
- Supports the optional SMA-2 Swivel Mount Adapter
- Contemporary design that complements the aesthetics of any environment
- Highly reliable, energy-efficient external universal power supply optional, replacement part #70-778-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
