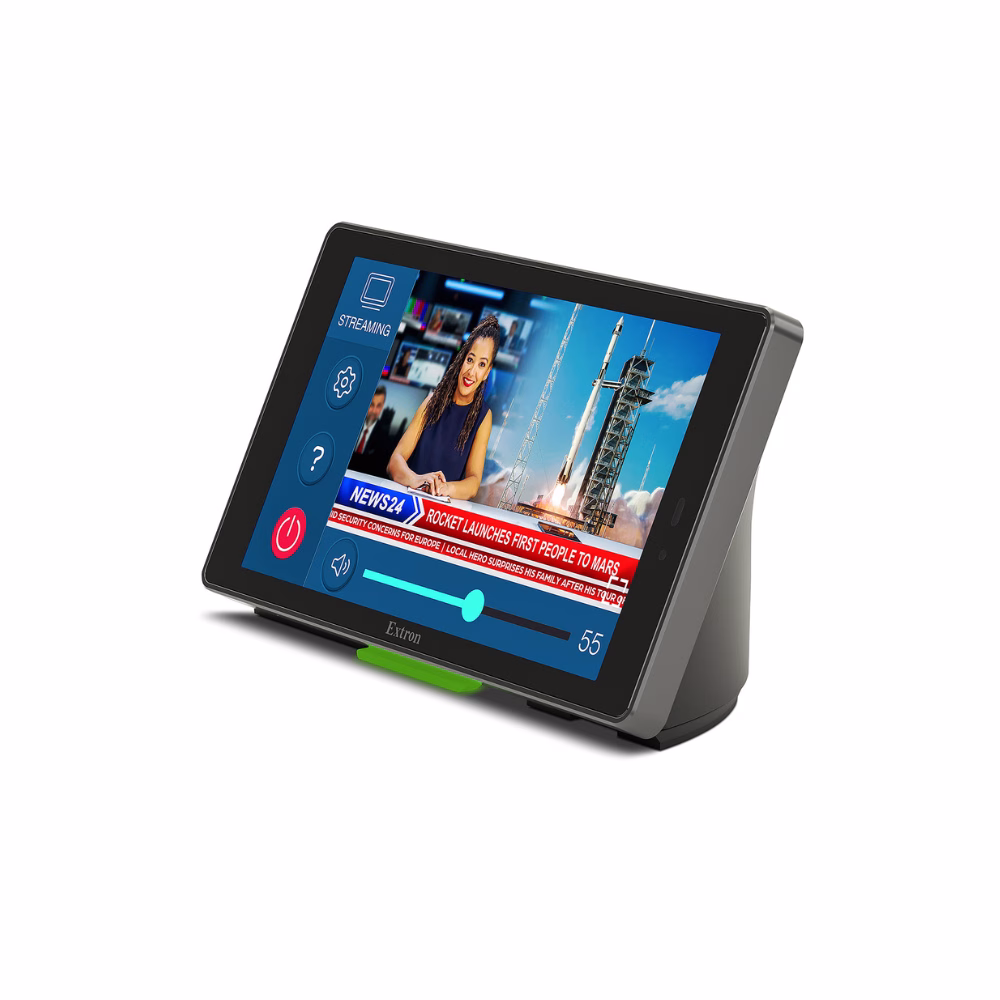

The Extron TLP Pro 535T is a 5.5-inch Tabletop TouchLink® Pro Touchpanel designed with advanced features and a fully customizable interface. A stunning new IPS display with optically bonded Gorilla® Glass provides enhanced brightness, viewing angles, and touch accuracy. The H.264 streaming input provides convenient video preview that supports simple, single-cable installation for power, network, and video. Multi-color status indicators provide immediate visual feedback for system states, alerts, or room availability. It is ideal for any environment requiring a tabletop touchpanel with advanced features and a refined, modern look.

The TLP Pro 535T works with any Extron IP Link Pro xi control processor and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost-effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

Transform This Touchpanel Into a Standalone Pro xi Series Control System
Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices over the network directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 2 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

The Extron TLCA 2 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your TLP Pro 35 Series touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.

Features

• 5.5" IPS touchscreen with 1280x720 resolution and 24-bit color depth — IPS - in-plane switching display provides improved colors, contrast, and overall image quality.
• Native support for H.264 streaming preview — Allows the touchpanel to display live streaming video preview from an IP camera or a streaming encoder such as the Extron SMP or SME series of products.
• Works with any Extron IP Link Pro xi control processor
• Transform your touchpanel into a standalone Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 2 TouchLink Control Port Expansion Adapter — Supports up to eight Ethernet-controllable devices using GC Plus and 32 using GC Pro.
  • LinkLicense for User Interfaces can be applied to the touchpanel after a LinkLicense for TLP Control Processor is applied. LinkLicense for User Interfaces provides an easy way for people to use their mobile devices or computers as primary control interfaces in a system.
• Multi-color status indicators — Provide immediate visual feedback for system states, alerts, or room availability. Pick from 10 predefined colors or use HEX color values for precise color matching for corporate branding or application-specific requirements.
• Optically bonded Gorilla® Glass screen is tough, scratch resistant, and smudge resistant — Corning Gorilla® Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• Increased memory for quicker page loads and expanded storage for larger projects
• Supports PoE — Power over Ethernet delivers both power and data through a single Ethernet cable, simplifying installation and reducing clutter.
• Integrated speaker — Provides audible feedback and support video preview functionality.
• Light sensor adjusts screen brightness as the ambient room lighting changes
• USB-C port — Can be used to power the touchpanel or for supported accessories.
• Automatic clock synchronization — Ensures the touchpanel displays the correct time and date.
• Energy-saving features:
  - Adjustable sleep timer puts touchpanel into sleep mode
  - Motion detector wakes touchpanel
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• Manage, monitor, and control this device remotely using GVE — GlobalViewer Enterprise Resource Management software.
• Wide viewing angle — Provides optimum visibility whether sitting or standing.
• Modern tabletop design complements any environment with a clean and professional look
• Available in black
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
