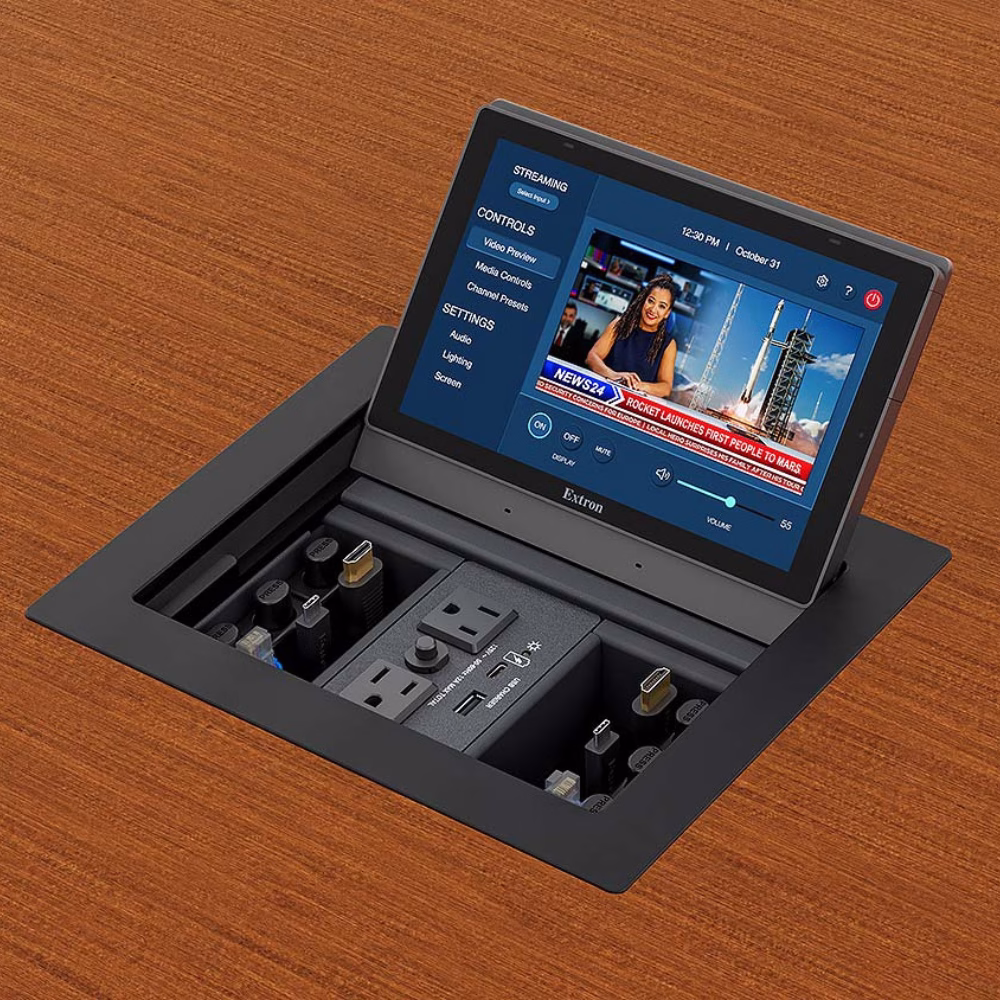

The Extron TLP Pro 835C is an 8-inch Cable Cubby TouchLink® Pro Touchpanel designed with a flip-up touchscreen in a Cable Access Enclosure. This model includes advanced features and a fully customizable interface. A stunning new IPS display with optically bonded Gorilla® Glass provides enhanced brightness, viewing angles, and touch accuracy. The cable access enclosure accommodates AC and AC+USB power modules and Retractor cable retraction modules, AV cables, or AAP™ Connectivity Modules. A simple integrated clamp system quickly secures the enclosure to the surface of furniture without the need for additional parts or tools. It is ideal for applications requiring AV connectivity and a discrete, flip-up touchpanel with a refined, modern look.

The TLP Pro 835C works with any Extron IP Link Pro xi control processor and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost-effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

Transform This Touchpanel Into an Standalone Pro xi Series Control System
Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices over the network directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 2 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

The Extron TLCA 2 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your TLP Pro 35 Series touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.

Features

• 8" IPS touchscreen with 1280x800 resolution and 24-bit color depth — IPS - in-plane switching display provides improved colors, contrast, and overall image quality.
• Native support for H.264 streaming preview — Allows the touchpanel to display live streaming video preview from an IP camera or a streaming encoder such as the Extron SMP or SME series of products.
• Works with any Extron IP Link Pro xi control processor
• Transform your touchpanel into a standalone Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 2 TouchLink Control Port Expansion Adapter — Supports up to eight Ethernet-controllable devices using GC Plus and 32 using GC Pro.
  • LinkLicense for User Interfaces can be applied to the touchpanel after a LinkLicense for TLP Control Processor is applied. LinkLicense for User Interfaces provides an easy way for people to use their mobile devices or computers as primary control interfaces in a system.
• Cable Cubby® Cable Access Enclosure Design — Integrates a user interface into a furniture-mountable cable access enclosure, offering convenient access to AV cables, power, and room control. Supports streamlined system designs and serves as a direct drop-in replacement for the TLP Pro 725C.
  • • Accommodates Cable Cubby AC+USB power module, plus three Retractors, eight AV cables, and/or three AAP™ AV Connectivity Modules per bracket
• AC Power and AC+USB power modules are available for US, Europe, and other major world markets
• Optional Retractor cable retraction system supports most AV, data, and power
• Included Cable Cubby Connectivity Bracket Kits provide additional flexibility when configuring Cable Cubby cable access enclosures
• Patented modular design for fast assembly and serviceability: AV connectivity can be installed or serviced from the top of the enclosure after it is installed.
• Compatible with Show Me® Cables: Show Me cables provide convenient connectivity and user input selection and control for Collaboration Systems.
• TLP Pro 835C enclosure is UL/c-UL listed and CE compliant
• Integrated side clamps secure enclosure to the furniture surface: Cable Cubby can be secured in place without additional parts or tools
• Top surface is available in a black anodized finish
• Installation routing template available: Simplifies installation by allowing the cable access enclosure to be easily mounted within furniture using the same cutout as the TLP Pro 725C. This ensures a clean, professional appearance and reduces installation costs by eliminating the need for new cutouts.
• • Cable Cubby Builder is available at www.extron.com/cablecubbybuilder: Intuitive online tool for enclosure selection, pricing, and cable and connectivity selection
• Optically bonded Gorilla® Glass screen is tough, scratch resistant, and smudge resistant — Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• Increased memory for quicker page loads and expanded storage for larger projects
• Supports PoE — Power over Ethernet delivers both power and data through a single Ethernet cable, simplifying installation and reducing clutter.
• Integrated speakers — Provide audible feedback and support video preview functionality.
• Light sensor adjusts screen brightness as the ambient room lighting changes
• USB-C Port — Can be used to power the touchpanel or for supported accessories.
• Energy-saving features:
  - Adjustable sleep timer puts touchpanel into sleep mode
  - Integrated lid switch automatically wakes the touchpanel when opened and can trigger any other system function
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• Manage, monitor, and control this device remotely using GVE — GlobalViewer Enterprise Resource Management software.
• Wide viewing angle — Provides optimum visibility whether sitting or standing.
• Modern cable cubby design complements any environment with a clean and professional look
• TAA compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
