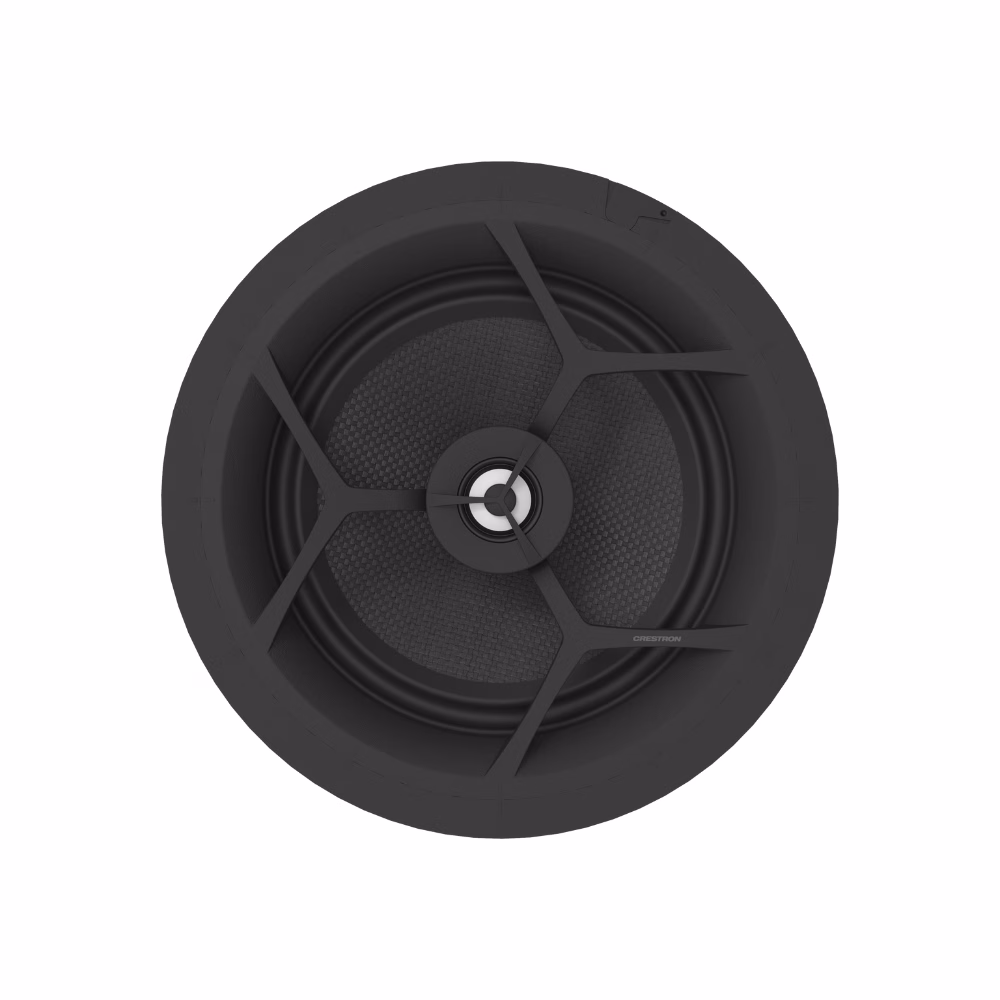

ULTIMATE IC8-AW-W-T-EACH – Ultimate 8 in. 2-Way All Weather In-Ceiling Speaker, White Textured, Single
Audiophile performance 2-way all weather in-ceiling speaker to please the most ardent listener and the most demanding interior designer — with thoughtful features that simplify installation.
| Features & Performance | |
| Woofer | 8 in. (203 mm) carbon fiber |
| Tweeter | 1 in. (25 mm) ceramic-coated aluminum; Steerable up to 30° off-axis |
| Crossover Slope | 30 dB/oct |
| Crossover Point | 3.5 kHz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 45 Hz to 30 kHz (±3 dB) |
| Frequency Range | 35 Hz to 30 kHz (±10 dB) |
| Power Handling | Program: 150 W; Peak: 300 W |
| Sensitivity | 86 dB @ 1 W/1 M |
| Connections | |
| Input | 2-pin 5.08 mm pitch, 10A, detachable terminal block |
| Maximum Wire Size | 12 AWG (3.31 mm2) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Ingress Protection | IP66 rated for particles and water |
| Construction | |
| Baffle | Glass fiber reinforced ABS |
| Grille | Electroplated and powder coated steel, paintable, magnetically held bezel design |
| Mounting | Toolless bayonet mounting system |
| Dimensions | |
| Diameter without grille | 9.61 in. (244 mm) |
| Depth | 4.63 in. (118 mm) |
| Round Grille | 10.20 in. (259 mm) |
| Recommended Cutout Diameter | 8.75 in. (222 mm) without bayonet ring; Up to 5.30 in. (135 mm) with bayonet ring |
| Weight | |
| 5 lb (2.26 kg) | |
| Compliance | |
| Regulatory Model: M202139001 CE, RoHs, FCC Part 15 Class B digital device | |
The ULTIMATE IC8-AW-W-T-EACH 2-way all weather in‑ceiling speaker features an 8 in. (203 mm) carbon fiber woofer for deep, defined low end and articulate midrange, and a 1 in. (25 mm) ceramic coated aluminum tweeter for crisp highs with consistent coverage across a wide listening area. A compression molded woofer basket assures pure, uncolored bass response. Suspended coaxial mounting of the pivoting tweeter reduces midrange frequency response anomalies caused by interference between the woofer and the back of the tweeter.
Key Features
- Audiophile performance 2-way all weather in-ceiling speaker
- 8 in. (203 mm) carbon fiber woofer
- 1 in. (25 mm) steerable, ceramic-coated aluminum tweeter
- IP66 rated for particle and water protection
- Twist and lock toolless bayonet mounting system
- 150 W (Program), and 300 W (Peak) power handling
- 45 Hz to 30 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance
- Various grille options
- Installation friendly low profile with 4.63 in. (118 mm) depth
