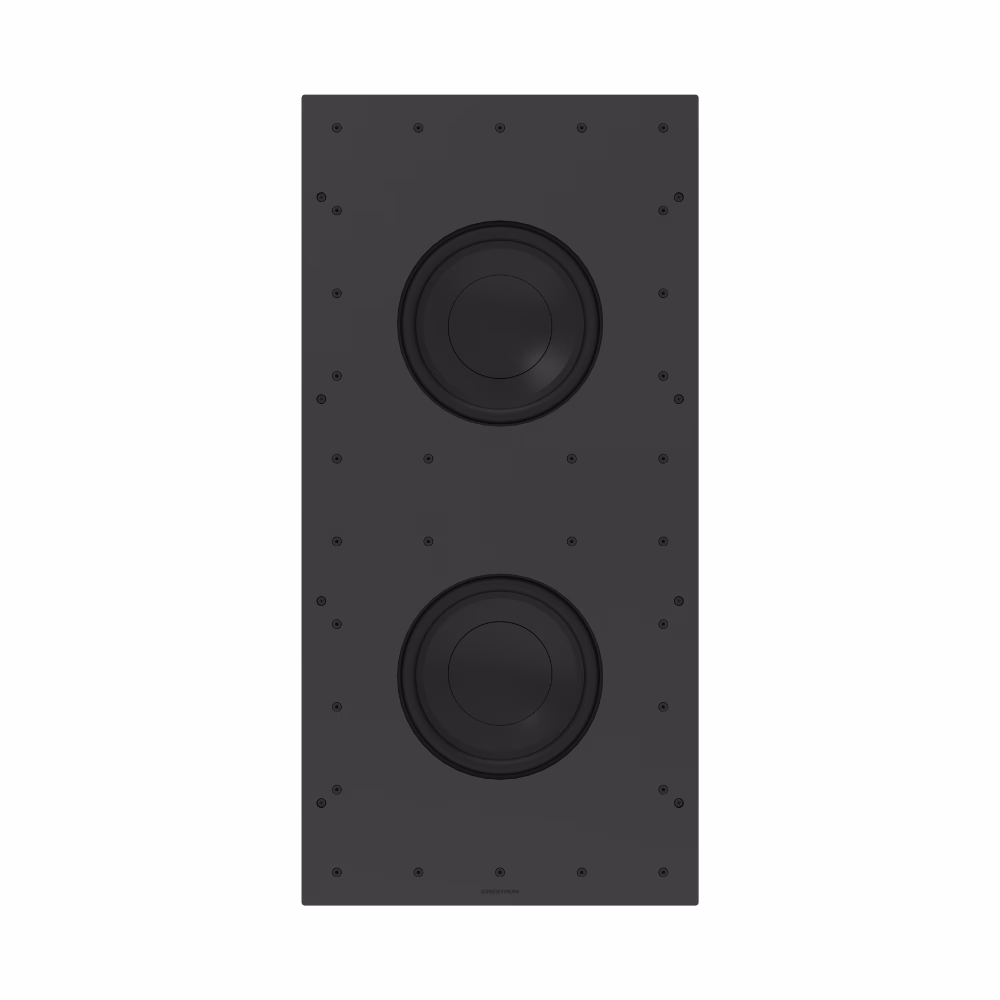

ULTIMATE IWS82-AW-W-T-EACH – Ultimate In-Wall Dual 8 in. Subwoofer, All Weather, White Textured, Single
Deep, impactful bass in a robust in-wall design with thoughtful features that simplify installation.
| Features & Performance | |
| Woofer | 8 in. (203 mm) aluminum active and 8 in.(203 mm) aluminum passive radiator woofers |
| Impedance | 8 Ohms nominal |
| Frequency Response | 35 Hz to 175 Hz (±3 dB) |
| Frequency Range | 30 Hz to 250 Hz (±10 dB) |
| Power Handling | Program: 200 W; Peak: 400 W |
| Sensitivity | 86 dB @ 1 W/1 M |
| Connections | |
| Input | 2-pin 5.08 mm pitch, 10A, detachable terminal block |
| Maximum Wire Size | 12 AWG (3.31 mm2) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 90% RH (non-condensing) For indoor use only |
| Splash Resistance | IP66 rated for water |
| Construction | |
| Baffle | Aluminum, brushed and anodized |
| Grille | Electroplated and powder coated steel, paintable, magnetically held bezel design |
| Mounting | In-wall dog ear mounting system |
| Dimensions | |
| Height without grille | 28.93 in. (735 mm) |
| Width without grille | 13.22 in. (336 mm) |
| Depth | 3.74 in. (95 mm) |
| Rectangle Grille | |
| Length | 29.56 in. (751 mm) |
| Width | 13.85 in. (352 mm) |
| Cut-out Dimension | 12.51 in. x 28.22 in. (318 mm x 717 mm) |
| Weight | |
| 22.4 lb (10.16 kg) | |
| Compliance | |
| CE, RoHs, FCC Part 15 Class B digital device | |
| Regulatory Model | M202046008 |
Crestron® Ultimate subwoofers made by Origin Acoustics deliver the pinnacle of performance for demanding residential installations. The ULTIMATE IWS82-AW-W-T-EACH is an in-wall subwoofer designed to produce deep, gratifying bass in demanding multiroom audio and home theater applications. High-end composition and paintable grilles complement other Crestron Ultimate and Reference speakers, offering easy installation and a discreet appearance. The in-wall speaker is provided with a rectangular grille with white plastic finish bezel.
Streamlined installation of each subwoofer is facilitated through an easy to use in-wall dog ear mounting system optimized to minimize interference with other elements present in the wall space.
NOTE: The ULTIMATE IWS82-AW-W-T-EACH should be paired with DM NAX amplifiers for optimal performance.
Key Features
- Audiophile performance in-wall subwoofer
- 8 in. (203 mm) aluminum active and 8 in. (203 mm) aluminum passive radiator woofers
- In-wall dog ear mounting system
- IP66 rated for dust and water, weatherized construction
- 200 W (Program), and 400 W (Peak) power handling
- 35 Hz to 175 Hz (±3 dB) frequency response
- 8 Ohms nominal impedance
- Various grille options
- Perfect for Marine applications
