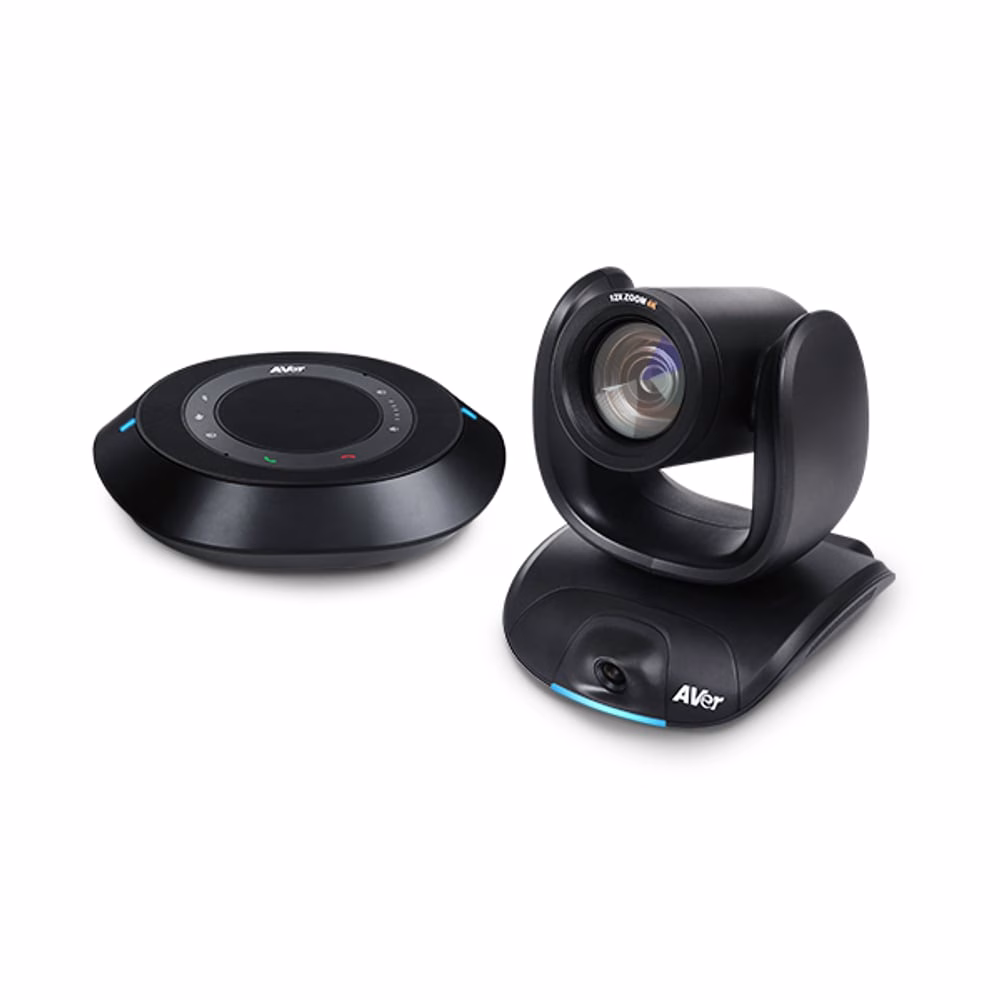

VC550
Superior Dual-Lens Audiovisual System for Collaboration
The upgraded VC550 delivers unprecedented audiovisual quality with AVer’s Scalable Speakerphone technology, flexibly fitting in to mid to large rooms. 4K dual-lens technology plus 24X total zoom offers precise and clear viewing of meeting rooms and participants. Equipped with an AI lens for automated PTZ functionality, the VC550 delivers a full view of meeting attendees. The Smart Gallery feature pictures each meeting participant for clear viewing from the remote side.
Dual Lens Camera (CAM550)
PTZ optical zoom lens
- Image Sensor: 1/2.8” 4K Sony Exmor CMOS
- Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
- 24*X Zoom: 12X optical; 2X digital zoom
- Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
- Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
- Lens F#: 1.8 (wide) ~ 2.8 (tele)
- AE, white balance: auto, manual override via Room Management
- Minimum focus distance: 1.5m
- Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
- Preset number: 10 via IR remote, 128 via RS232
Secondary fixed lens (AI lens)
- Image Sensor: 1/2.5” 4K Sony Exmor CMOS
- Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°
Speakerphone (FONE540)
- Speaker volume: adjustable to 90 dB SPL at 0.5 m
HDMI & PoE
- HDMI 1.3: 1080p 30fps/ 60fps
- PoE+: 802.3at
Video Format
- Network video compression format: H.264, H.265
- Network protocol: RTSP, RTMP
Control
Camera
- Remote side: VISCA over IP, IP (RJ45)
- WebUI: Browser IP access via Chrome (Not support IE)
- OSD setting: HDMI out to TV monitor
Speakerphone
- WebUI: Browser IP access via Chrome (Not support IE)
Power Supply
Camera
- AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
- PoE+: 802.3at
Speakerphone
- Consumption: 12V, 5A
Environment Data
- Operation temperature: 0 to 40°C
- Operation humidity: 20% to 80%
- Storage temperature: -20 to 60°C
- Storage humidity: 20% to 80% E
Dimensions
- Package dimensions: 348(L)*251(W)*308(H) mm
- Package weight: 7.9kg
- Camera: 170.8(L) x 190.5 (H) x 173(D) mm/ 2.1kg
- Speakerphone: 220(L)x 49.5(D) x 181.5(H) mm/ 0.8kg
- Remote control: 200 x 50 x 21 mm/ 90g
Innovative features
- Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically re-frame all participants.
- Simultaneous 3-way output: USB, HDMI and IP connections
- Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB.)
- Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.
Warranty
- Camera, Speakerphone: 3 years*
- Accessories: 1 year
The upgraded VC550 delivers unprecedented audiovisual quality with AVer’s Scalable Speakerphone technology, flexibly fitting in to mid to large rooms. 4K dual-lens technology plus 24X total zoom offers precise and clear viewing of meeting rooms and participants. Equipped with an AI lens for automated PTZ functionality, the VC550 delivers a full view of meeting attendees. The Smart Gallery feature pictures each meeting participant for clear viewing from the remote side.
Adapt to Mid-to-large rooms with Scalable Speakerphones
The VC550 provides a premium audiovisual experience. Embedded with daisy-chain technology, the VC550 can be expanded by adding up to four additional microphones or two speakerphones to provide full coverage in mid to large rooms.
Advanced Noise Suppression Achieves Amazing Acoustics
Feeling irritated by background keyboard typing and air conditioning sounds during a conference call? The FONE540 silences the noise and guarantees unmatched audio clarity to free you from distractions.
Flawless Audio for Fluid Communication
Do people on the other side of your audio meeting still have trouble hearing every word you say? With the FONE540 you won’t have to repeat yourself anymore. Equipped with double-talk detection, the FONE540 makes every call feel like a face-to-face conversation.
4K Dual Lens Offers Wide-Angle Clarity for Larger Rooms
Capture a full view of any meeting room with wide-angle functionality. The VC550 equips two 4K lenses, the first of which is a PTZ camera with 12X optical zoom (24X total zoom) which automatically frames participants and the second is an AI lens with 95°FOV, together providing a full and panoramic view of any room.
Dynamic Framing Enhances Meeting Efficiency
The VC550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, dynamic framing optimizes meetings and eliminates touch for high levels of safety.
Highlight Participants with Smart Gallery
Clearly capture attendees with Smart Gallery, which utilizes AI face and body detection technology to crop participant’s faces and make sure everyone looks great. You can choose between headshot and half body mode to adapt to any situation without compromise.
