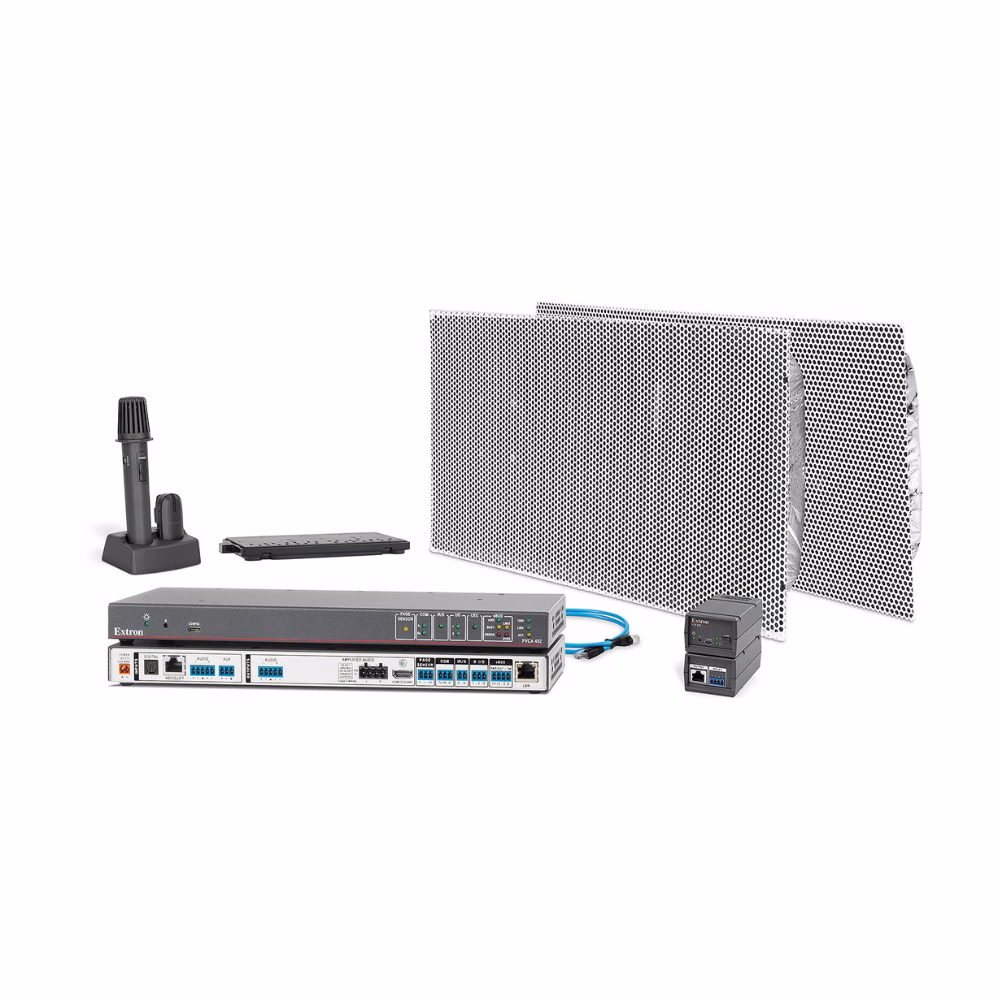

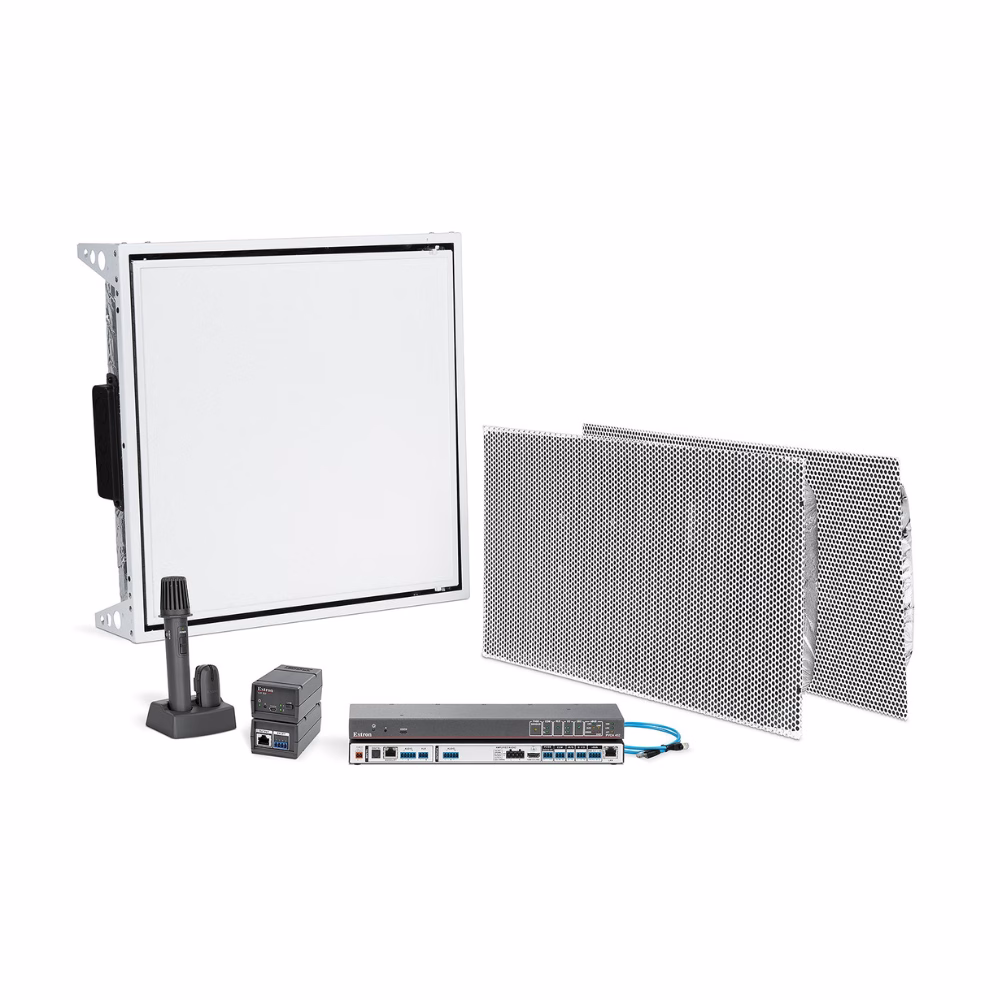

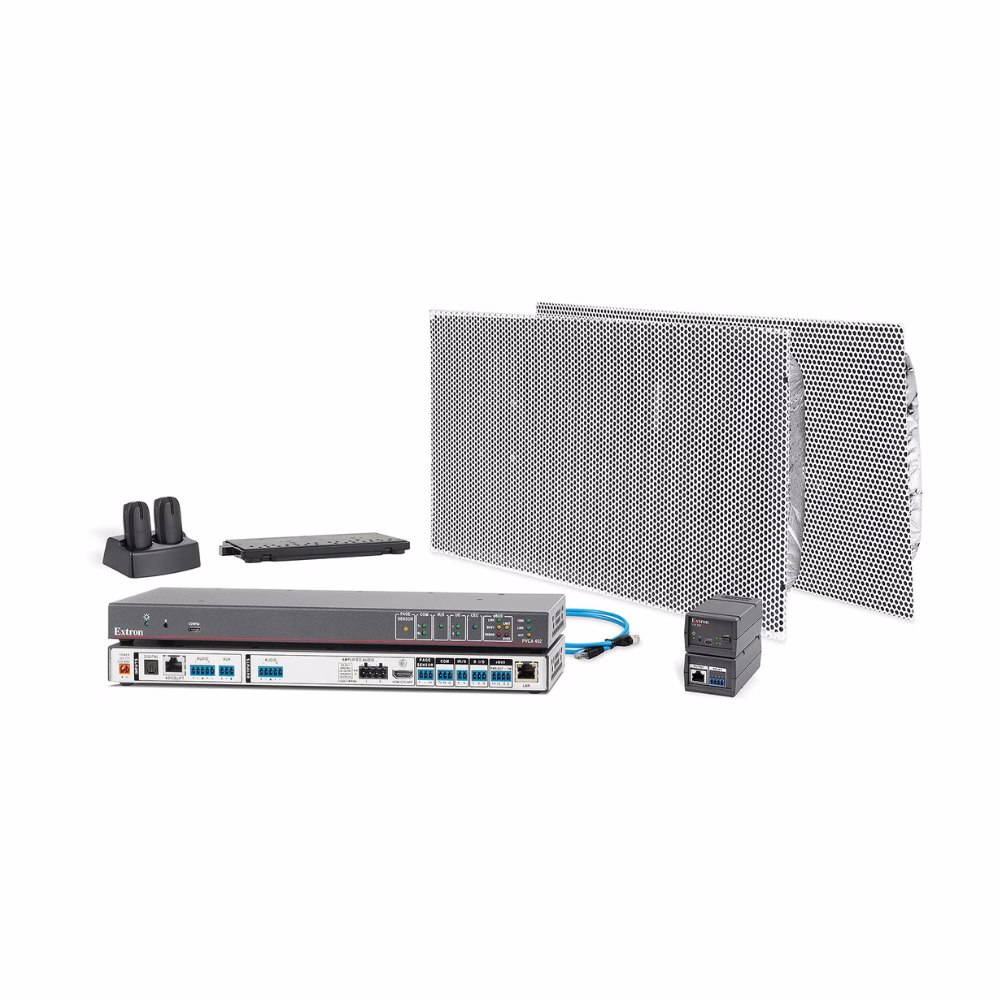

VoiceLift Pro Microphone System – Complete Microphone System for High Performance Classroom Voice Amplification
Key Features
- Complete high performance voice amplification system for instructional spaces
- Advanced RF wireless technology provides superior sound quality, increased reliability, long-range transmission, and reduced interference
- Supports up to two microphones per classroom for team teaching or student participation
- Powerful, integrated 50 watt, two-channel amplifier
- Audio input mixing
- Includes one pair of Extron patented Flat Field® speakers for consistent sound levels across the listening area
| VoiceLift Pro System Kit | |||
| Overall system | |||
|---|---|---|---|
| Operating range | 40′ x 40′ minimum coverage | ||
| Reception area | 1600 square feet (148.6 square meters) minimum | ||
| Radio frequency | 1900 MHz | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | |||
| EMI/EMC | CE, FCC Class B | ||
| Environmental | Complies with the appropriate requirements of RoHS and WEEE | ||
| Product warranty | |||
| Product | 3 years parts and labor | ||
| Microphone battery | 90 days | ||
| VLP 302 Pendant Microphone | |||
| User controls | Power, volume, and function | ||
| Audio Input | |||
| Number/signal type | 1 mono, via integrated MEMS microphones 1 mono, unbalanced, via auxiliary mic input jack | ||
| Connector | (1) 3.5 mm mini audio jack (tip = audio signal/bias voltage, sleeve = GND) | ||
| Batteries | |||
| Number/type | 1 AA size NiMH or alkaline battery | ||
| Operating life | Rechargeable 2400 mAh NiMH batteries: min. 8 hours, continuous use Alkaline batteries: min. 8 hours, continuous use | ||
| Recharging time | ~5 hours for a 2400 mAh NiMH battery | ||
| Enclosure dimensions | 3.0″ H x 1.47″ W x 1.2″ D* (7.6 cm H x 3.7 cm W x 3.0 cm D*) *Depth includes clip. Depth without clip = 0.9″, 2.3 cm | ||
| Product weight | 1.2 oz (34 g) without battery 2.2 oz (62 g) with battery | ||
| Regulatory compliance | CE, FCC Class B, UL, c-UL | ||
| Accessibility | Section 508 of the Rehabilitation Act (29 U.S.C. 794d) | ||
| VLH 302 Handheld Microphone | |||
| User controls | Power, volume, and link | ||
| Audio Input | |||
| Number/signal type | 1 mono, via integrated MEMS microphones 1 stereo, unbalanced, via auxiliary line level input jack | ||
| Connectors | (1) 3.5 mm mini audio jack (tip = left channel audio, ring= right channel audio, sleeve = GND) | ||
| Batteries | |||
| Number/type | 1 AA size NiMH or alkaline battery | ||
| Operating life | Rechargeable 2400 mAh NiMH batteries: min. 8 hours, continuous use Alkaline batteries: min. 8 hours, continuous use | ||
| Recharging time | ~5 hours for a 2400 mAh NiMH battery | ||
| Enclosure dimensions | 8.0″ H x 1.8″ (max) diameter (20.2 cm H x 4.6 cm [max] diameter) | ||
| Product weight | 4.0 oz (113 g) without battery 5.0 oz (142 g) with battery | ||
| Regulatory compliance | CE, FCC Class B, UL, c-UL | ||
| Accessibility | Section 508 of the Rehabilitation Act (29 U.S.C. 794d) | ||
| VLR 302 Receiver | |||
| User controls | 2 normally open relays 1 RS-232 port (38400 baud, 8 data bits, 1 stop bit, no parity) via RJ-45 1 USB | ||
| Mounting | Rack, ceiling, or wall mountable | ||
| Power input requirements | 12 VDC, 0.2 A | ||
| Enclosure dimensions | 1.66″ H* x 2.15″ W x 4.50″ D (4.2 cm H x 5.5 cm W x 11.4 cm D) *Height is measured out from the mounting surface. | ||
| Product weight | 0.25 lbs (0.11 kg) | ||
| Regulatory compliance | CE, FCC Class B, UL, c-UL | ||
| VLC 302 Charging Station | |||
| External Power supply | 110 VAC to 130 VAC, 50-60 Hz, external; to 5 VDC, 2.6 A, regulated USB Micro B | ||
| Power input requirements | 5 VDC, 0.5 A | ||
| Enclosure dimensions | 1.5″ H x 4.4″ W x 3.4″ D (3.9 cm H x 11.3 cm W x 8.6 cm D) | ||
| Product weight | 0.66 lbs (0.3 kg) | ||
| Regulatory compliance | CE, UL, c-UL | ||
| Environmental | Complies with the appropriate requirements of ENERGY STAR® (ENERGY STAR qualified power supply, efficiency level VI). | ||
| PVCA 452 | |||
| Software and control options | |||
| Software | Extron Global Configurator® Plus and Professional for Windows® | ||
| Control options | Extron Control for iPad, Android, and web, TouchLink® Pro touchpanels, Network Button Panels | ||
| Audio system | |||
| Volume control range | 0 to -61 dB | ||
| Crosstalk | <-85 dB @ 1 kHz | ||
| Stereo channel separation | >80 dB @ 1 kHz | ||
| Audio input — VoiceLift receiver | |||
| Number/signal type | 1 mono, balanced (mic) | ||
| Connectors | 1 female RJ-45 | ||
| Impedance | >10k ohms unbalanced/balanced, DC coupled | ||
| Nominal level | -10 dBV (316 mVrms) | ||
| Input gain/volume adjustment | -18 dB to +12 dB (default = 0 dB), adjustable independently from all other audio gain and volume controls via PCS | ||
| Audio input — Line | |||
| Number/signal type | 1 stereo, unbalanced or balanced | ||
| Connectors | 1 female 3.5 mm captive screw connector, 5 pole | ||
| Impedance | >10k ohms unbalanced/balanced, DC coupled | ||
| Nominal level | -10 dBV (316 mVrms) | ||
| Input gain/volume adjustment | -18 dB to +12 dB (default = 0 dB), adjustable independently from all other audio gain and volume controls via PCS | ||
| Audio input — Aux | |||
| Number/signal type | 1 mono, unbalanced or balanced | ||
| Connectors | 1 female 3.5 mm captive screw connector, 3 pole | ||
| Impedance | >10k ohms unbalanced/balanced, DC coupled | ||
| Nominal level | -10 dBV (316 mVrms) | ||
| Input gain/volume adjustment | -18 dB to +12 dB (default = 0 dB), adjustable independently from all other audio gain and volume controls via PCS | ||
| Audio input — Digital | |||
| Number/signal type | 1 S/PDIF (optical) 1 HDMI ARC | ||
| Connectors | 1 female TOSLINK fiber optic connector 1 female HDMI | ||
| Source formats | PCM 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz sample rates, up to 24-bit. | ||
| Listening modes | Stereo | ||
| Input gain/volume adjustment | -18 dB to +12 dB (default = 0 dB), adjustable independently from all other audio gain and volume controls via PCS | ||
| Audio output — line level | |||
| Number/signal type | 1 stereo/mono, balanced/unbalanced, fixed/variable | ||
| Connector | (1) 3.5 mm captive screw connector, 5 pole | ||
| Impedance | 50 ohms unbalanced, 100 ohms balanced | ||
| Gain error | ±0.8 dB channel to channel | ||
| Maximum level | +15 dBu, balanced, at <0.1% THD+N | ||
| |||
| Audio output — power amplifier | |||
| Number/signal type | 1 stereo/dual mono | ||
| Connector | (1) 5.0 mm captive screw connector, 4 pole | ||
| Load impedance | 4/8 ohms, single channel or stereo | ||
| Amplifier type | Class D | ||
| Frequency response | 20 Hz to 20 kHz, +1 dB/-3dB @ 1 watt output, 8 ohm load | ||
| THD + Noise | 0.1%, 1 kHz, 3 dB below clipping | ||
| S/N | >90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms | ||
| Output power | 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD | ||
| Damping factor | >75 @ 8 ohm | ||
| Communication — configuration port | |||
| USB control port | 1 front panel female USB type-C | ||
| USB standard | USB 2.0, high speed | ||
| Paging sensor connector | (1) 3.5 mm captive screw connector, 3 pole | ||
| Serial control | |||
| Quantity/type | 1 bidirectional RS-232 | ||
| Connector | (1) 3.5 mm direct insertion captive screw connector, 3 pole | ||
| Baud rate | 300 to 115200 baud (9600 baud = default); 8 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity | ||
| Pin configurations | |||
| Serial, 3-pole captive screw | |||
| RS-232 (default) | Pin 1 = Tx, 2 = Rx, 3 = Gnd | ||
| IR/serial control | |||
| Quantity/type | 1 programmable: unidirectional RS-232 (±5 V), or TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz | ||
| Connector | (1) 3.5 mm direct insertion captive screw connector, 2-pole | ||
| Baud rate and protocol (RS-232) | 300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity | ||
| Pin configurations | For each port, pin 1 = signal, 2 = Gnd | ||
| IR output carrier frequency | 30 kHz to 300 kHz | ||
| Digital inputs/outputs | |||
| Quantity/type | 2 digital inputs (configurable) referenced to ground | ||
| Connector | (1) 3.5 mm captive screw connector, 3 pole | ||
| Digital inputs | |||
| Input voltage range | 0 to 24 VDC, clamped at +30 VDC | ||
| Input impedance | >10k ohms | ||
| Programmable pullup | 1k ohms to +5 VDC | ||
| Threshold low to high | >2.8 VDC | ||
| Threshold high to low | <2.0 VDC | ||
| Digital outputs | 250 mA sink from 24 VDC max. | ||
| eBUS control | |||
| eBUS control ports | (1) 3.5 mm captive screw connector, 4 pole | ||
| eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = – signal; G = ground | ||
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable | ||
| Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the PVCA 452 User Guide for details. | ||
| eBUS power output | 3 watts | ||
| Ethernet control | |||
| Network interface controllers (NICs) | 1 | ||
| Connector | 1 female RJ-45 connector | ||
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect | ||
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP | ||
| Default settings | Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1 | ||
| General | |||
| Power supply | External | ||
| Power input requirements | Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 4.2 A, 50 watts | ||
| Power consumption | |||
| Device | 18.16 watts | ||
| Device and power supply | 20.55 watts | ||
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing | ||
| Cooling | Convection, no vents | ||
| Thermal dissipation | |||
| Device | 18.86 BTU/hr | ||
| Device and power supply | 27.01 BTU/hr | ||
| Mounting | |||
| Furniture mount | Yes, with optional ZipClip mounting kit | ||
| Wall mount | Yes, with optional wall mounting kit | ||
| Ceiling mount | Yes, with optional ceiling mount kit | ||
| Enclosure type | Metal | ||
| Enclosure dimensions | 1.00″ H x 13.1″ W x 3.5″ D (2.5 cm H x 33.3 cm W x 8.9 cm D) (Depth excludes connectors) | ||
| Product weight | 1.2 lbs (0.5 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | |||
| Safety | CE, c-UL, UL UL Listed for use in plenum air handling spaces: meets UL 2043 for heat and smoke release | ||
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI Class A Complies with the appropriate requirements of RoHS, WEEE | ||
| FF 120 Flat Field® Speakers | |||
| Power capacity | 16 W (rms) continuous pink noise 32 W (rms) continuous program | ||
| Nominal coverage angle | 170º conical coverage | ||
| Nominal impedance | 8 ohms per speaker | ||
| Mounting | Drops into a 2′ x 2′ (610 mm x 610 mm) or 2′ x 4′ (610 mm x 1220 mm) suspended tile | ||
| Enclosure outer dimensions | 3.25″ H x 23.75″ W x 11.75″ D (83 mm H x 603 mm W x 299 mm D) | ||
| Product weight | Single: 4.7 lbs (2.1 kg) | ||
| Regulatory compliance | CE, NFPA90A, NFPA70; UL listed for use in plenum airspaces: meets UL 2043 for heat and smoke release; meets UL 1480 – speakers for commercial and professional use. | ||
| ZipClip 400 and ZipCaddy 400 (VLS 3001, VLS 3002 and VLS 3002H) | |||
| Mounting | |||
| Rack rail mount | Yes, with required hardware | ||
| Furniture mount | Yes, with included hardware | ||
| Enclosure dimensions | |||
| ZipClip 400 | 9.5″ H x 4.6″ W x 0.6″ D (241 mm H x 116 mm W x 15 mm D) | ||
| ZipCaddy 400 | 8.6″ H x 4.4″ W x 0.4″ D (218 mm H x 111 mm W x 10 mm D) | ||
 | |||
| Load bearing | |||
| Vertical mounting | 9.5 lbs (4.3 kg) | ||
| Horizontal mounting | 5.0 lbs (2.27 kg) | ||
| |||
| Enclosure material | High impact plastic | ||
| Product weight | 0.3 lbs (0.1 kg) per each clip and plate pair 2.8 lbs (1.3 kg) per 10-pack | ||
| WMK 160 Wall Mount Kit (VLS 3001W, VLS 3002W, VLS 3002HW) | |||
| Mounting | |||
| Wall mount | Yes, with included hardware | ||
| Maximum load capacity | 15.0 lbs (6.8 kg) | ||
| Material | Steel base plate, aluminum cover | ||
| Dimensions | |||
| Base plate | 17.1″ H x 16.4″ W x 1.5″ D (43.5 cm H x 41.6 cm W x 3.8 cm D) | ||
| Cover | 17.3″ H x 16.5″ W x 2.75″ D (43.9 cm H x 41.9 cm W x 7.0 cm D) | ||
| Product weight | 5.5 lbs (2.5 kg) | ||
| Vibration | ISTA 1A in carton (International Safe Transit Association) | ||
| Regulatory compliance | c-UL, UL, OSHPD anchorage pre-approval | ||
| PVM 220 | |||
| Mounting | Drop ceiling mountable (installs on drop ceiling within air-handling space) | ||
| Maximum load capacity | 15.0 lbs (6.8 kg) on door | ||
| Enclosure material | Composite | ||
| Door frame and mounting plate | Aluminum | ||
| Dimensions | 6.3″ H x 23.8″ W x 23.8″ D (16.1 cm H x 60.5 cm W x 60.5 cm D) | ||
| Product weight | 16.0 lbs (7.3 kg) | ||
| Regulatory compliance | CE, c-UL, UL as an accessory for use with a UL listed mount and projector. UL listed for use in plenum airspaces: meets UL 2043 for heat and smoke release. OSHPD anchorage pre-approval. | ||
| |||
| |||
The VoiceLift Pro Microphone System represents the next generation of classroom voice amplification technology. It uses wireless technology, employing digital transmission and pairing in a dedicated spectrum to provide dependable performance. Benefits include superior sound quality, reliable and long-range transmission, as well as reduced interference. Each system contains all the components necessary to evenly distribute the teacher's voice throughout the classroom, including wireless microphone, receiver, PVCA 452 Controller Amplifier, speakers, mounting hardware, and cables.
Advanced Wireless Technology
The VoiceLift Pro Microphone is based on an industry standard radio frequency technology operating in a spectrum reserved exclusively for voice communications. This technology is not susceptible to environmental factors, such as windows, sunlight, and fluorescent lighting, that create problems for infrared systems.
Upgradeable to a Complete PlenumVault Direct View AV System
At the heart of each system is the Extron PVCA 452 controller amplifier that allows the system to be upgraded to an easy-to-use AV and control system. Simply add a display, input wallplates, and a user interface to create a completely integrated system that supports video sources, voice amplification, and intuitive control.
Flat Field Speakers
VoiceLift Pro Microphone Systems include Extron FF 120 full-range Flat Field® speakers. Extron’s patented Flat Field Technology reduces beaming of mid and high frequencies, delivering consistent sound levels across the listening area to each student. The speakers also offer an extraordinarily wide dispersion of 170 degrees, allowing each speaker to cover a larger area and reducing the number required in a standard classroom.
Flexible Mounting Options
Flexible mounting options are available to fit any room design. The unique WMK 160 wall mount kit securely mounts and conceals critical components to a wall, protecting them from tampering and theft. The PVM 220 PlenumVault® Mounting Kit mounts system components in the plenum space above a suspended ceiling. Additionally, the ZipClip® 400 mounting option enables installation behind flat panel displays.
Complete System
VoiceLift Pro Microphone Systems are standalone classroom voice amplification solutions. VLS systems include the following core components. The VLS 3002, VLS 3002W, and VLS 3002P add a second pendant microphone while the VLS 3002H, VLS 3002HW, and VLS 3002HP add a VLH 302 handheld microphone.
VoiceLift Pro Microphone System Core Components
- VLP 302 VoiceLift Pro Pendant Microphone
- VLR 302 VoiceLift Pro Receiver
- VLC 302 VoiceLift Pro Charging Station
- PVCA 452 Controller Amplifier
- FF 120 plenum rated Flat Field® Speakers, pair
- WMK 160 Wall Mount Kit, PVM 220 PlenumVault Mounting Kit, or ZipClip 400
- 3' CATx shielded twisted pair cable for connecting the PVCA 452 and receiver
- 100' SPK 18 Precut Speaker Cable - Plenum
Features
- Complete high performance voice amplification system for instructional spaces
- Advanced RF wireless technology provides superior sound quality, increased reliability, long-range transmission, and reduced interference
- Supports up to two microphones per classroom for team teaching or student participation
- Powerful, integrated 50 watt, two-channel amplifier — Outputs 50 watts, 25 watts rms per channel, at either 4 or 8 ohm speaker connections. This allows for a streamlined installation and plenty of power to drive speakers to fill typical-size classrooms with full, rich sound.
- Audio input mixing — The PVCA 452 can mix multiple audio sources. This includes voice reinforcement audio from the VLR 302 VoiceLift Pro microphone system and program audio from analog and digital sources. Program audio can be connected via TOSLINK optical fiber, HDMI ARC, and auxiliary line audio. Instructors can narrate over AV lesson presentations, add music, and perform other sophisticated audio management to make AV lessons more engaging and relevant.
- Includes one pair of Extron patented Flat Field® speakers for consistent sound levels across the listening area
- Instant Alert feature on the pendant enables the teacher to request assistance with the push of a button
- Page sensor port — Allows connection of a priority page sensor that detects announcements coming over public address speakers and mutes the PVCA 452 audio output to ensure the classroom AV does not compete with important PA messages.
- Lightweight pendant and optional handheld microphone ensure continuous usage throughout the school day on a single, rechargeable AA battery
- Audio DSP suppresses feedback while maximizing sound quality and intelligibility
- Durable and reliable design to withstand the rigors of daily classroom use
- Fixed and variable line level outputs — The fixed output is ideal for recording devices, remote learning applications, or other equipment such as ALS - assistive listening systems. The variable output is designed to drive a power amplifier.
- Receive program audio from the display over HDMI cable using ARC - Audio Return Channel — ARC allows transfer of audio from the flat panel display back to the PVCA 452 using the HDMI connection. This enables users to play audio through the Extron-exclusive patented Flat Field® speakers in the system rather than the flat panel display's speakers, provides additional flexibility in audio support, and facilitates the system's adaptability to evolving needs.
- Upgrades easily and affordably to a complete PlenumVault Direct View classroom AV system
- Integrates with GlobalViewer Campus Communication Suite — GlobalViewer Campus Communication Suite is the modern, simple way to implement bells, public address announcements, and intercom communications throughout campus over the network from an intuitive web browser interface.
- Supports LinkLicense® — Extron LinkLicense unlocks features that add convenience, expand system functionality, and enhance the capabilities of Extron products.
- LinkLicense for Audio Streaming enables the PVCA 452 to directly decode and play GlobalViewer Campus Communication Suite PA announcements and bell audio through classroom speakers.
- LinkLicense for User Interfaces allows a mobile device or computer to function as the system’s primary control interface.
- Supports Ethernet-controllable devices — Allows control of multiple Ethernet-enabled AV devices such as displays, switchers, and sources.
- Vast library of Pro Series Ethernet device drivers for use with Extron Global Configurator® software — Start and execute projects quickly using Extron Global Configurator device drivers to control various Ethernet-enabled display and source devices.
- Easy setup and configuration using Extron software — Conveniently configure the system using Global Configurator Plus and Professional, Toolbelt, and PCS Product Configuration Software.
- WMK 160 wall mounting, PVM 220 PlenumVault® mounting, and ZipClip® 400 mounting options — Securely mount and conceal system components to a wall, in the plenum space above a suspended ceiling, or behind a flat panel display.
