WE Series

WE Series

Flexibility
Good Flatness
Curved Design
Convenient and Fast
Good Display Effect

Whatsapp
Categories: , Brand:

General Technical Specifications

  • Series Name: WE Series

  • Application Category: Indoor & Temporary Outdoor Rental / Stage Performances / Exhibitions / Corporate Conferences / Command Centers

  • Cabinet Size Compatibility: Supports cross-splicing between 500 × 500 mm and 500 × 1000 mm cabinet footprints

  • Refresh Rate: > 3840Hz (Flicker-free, camera-ready standard)

  • Cabinet Construction: Precision Die-Cast Aluminum with top positioning pillars and side positioning beads

  • Curving Mechanism: Integrated precise arc/curved mechanical splicing layout

  • Mask Type: Standard anti-glare high-consistency face mask

  • Serviceability: Tool-less quick installation and modular servicing layout (outdoor deployment requires adding matching waterproof rings)

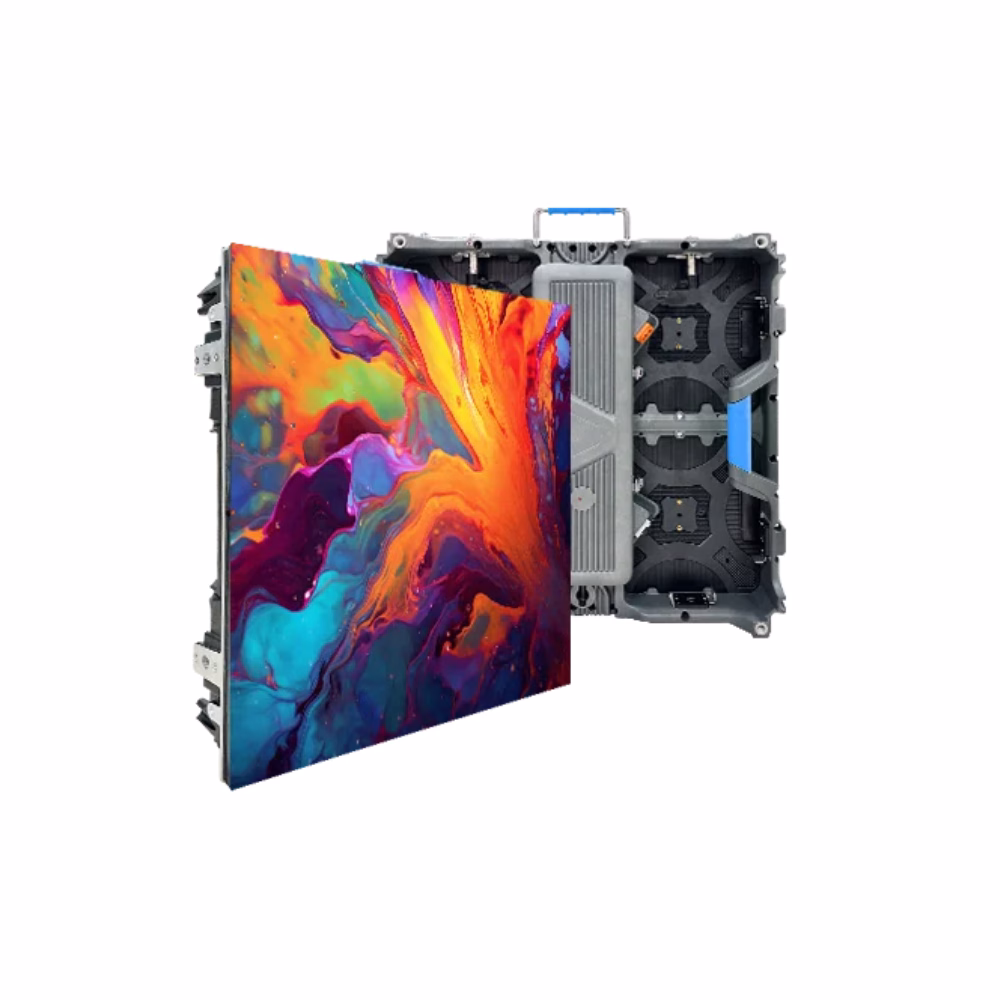

The Ledman WE Series is a highly versatile and flexible rental LED display panel engineered to offer outstanding structural flatness and rapid deployment. Designed primarily for stages, exhibitions, indoor advertising, conferences, and command centers, the WE Series features a modular structure that allows for easy creative setups. It supports standard straight alignments as well as smooth curved screen configurations, providing an excellent and seamless visual presentation for dynamic indoor and temporary outdoor environments.

Key Features & Advantages

  • Exceptional Structural Flatness: The cabinet is formed using high-precision overall die-casting technology, ensuring an ultra-flat panel mating surface. It incorporates specialized positioning beads on the side and positioning pillars on the top, allowing technicians to achieve zero-gap alignment quickly during high-pressure event setups.

  • Creative Curved Design: Engineered with built-in adjustable angling mechanisms, the WE Series can be spliced into smooth arcs and curved layouts to accommodate creative stage configurations, wave patterns, or circular pillars.

  • High Layout Flexibility: Supports the interchanging of modules with different pixel spacings. Furthermore, the 500mm × 500mm cabinets can be seamlessly combined and spliced directly with the 500mm × 1000mm cabinets, offering immense architectural freedom.

  • Convenient, Fast, & Single-Person Installation: Features a lightweight structural profile combined with high-strength quick-locks on both the top and bottom. This allows a single operator to handle setup and teardown easily. The integrated carrying handles are wrapped in high-grip glue for an anti-slip, comfortable, and safe installation experience.

  • Broadcast-Grade Display Performance: Delivers an ultra-smooth refresh rate of over 3840Hz, ensuring comfortable long-term viewing and eliminating visible scan lines or camera flickering during live recordings. It is outfitted with a standard anti-glare mask that significantly enhances deep-black and color consistency across the entire display.
