XIM Series - XIM Series - Indoor LED Display

XIM Series – XIM Series – Indoor LED Display

XIM series LED solutions deliver unrivalled versatility due to the variety of cabinet configurations available. Integrators specifying the XIM range have access to the broadest range of pixel pitch and aspect ratios options. Perfect for any internal space, these innovative Hisense LED modules include cable-less internal construction and full frontal access for ease of maintenance.

Whatsapp
Categories: , Brand:

1.538mm

  • Pixel Configuration: SMD1212
  • Module Resolution: 209 x 104
  • Module Dimension (WxH): 320 x 160 mm
  • Cabinet Dimension (WxHxD): 640 x 480 x 49 / 640 x 640 x 49 / 320 x 480 x 49 mm
  • Cabinet Weight: 6.5 kg / 8.2 kg / 3.8 kg
  • Cabinet Materials: Die-cast Aluminum (typ.) / Steel (Customizable)
  • Brightness (typ.): 600 nits
  • Contrast Ratio: 4,000:1@10lux / 5,000:1@10lux, Flexible Module
  • Visual Viewing Angle (H x V): 160° x 160°
  • Bit Depth: 14 bit (14~16 bit Customizable)
  • Color Temperature: 6,500K + 500K
  • Brightness Uniformity: 95%
  • Color Uniformity: +0.012 Cx, Cy
  • Video Frame Rate: 60 Hz
  • Max Power Consumption: 600 (W/m2)
  • Avg Power Consumption: 180 (W/m2)
  • Max Heat Generation: 2,047 (BTU/m2)
  • Avg Heat Generation: 614 (BTU/m2)
  • Power Supply: 100~240 V AC
  • Refresh Rate: 3,840 Hz
  • Operating Temp / Humidity: -10~40°C / 10~80% RH
  • Storage Temp / Humidity: -20~60°C / 10~90% RH
  • IP Rating: Front IP30
  • Lifetime: 100,000 Hrs
  • Certification: CE
  • Maintenance: Front Access (Die-cast Aluminum) // Front / Rear Access (Steel)

mm

  • Pixel Configuration: SMD2020
  • Module Resolution: 80 x 40
  • Module Dimension (WxH): 320 x 160 mm
  • Cabinet Dimension (WxHxD): 640 x 480 x 49 / 640 x 640 x 49 / 320 x 480 x 49 mm
  • Cabinet Weight: 6.5 kg / 8.2 kg / 3.8 kg
  • Cabinet Materials: Die-cast Aluminum (typ.) / Steel (Customizable)
  • Brightness (typ.): 600 nits
  • Contrast Ratio: 4,000:1@10lux / 5,000:1@10lux, Flexible Module
  • Visual Viewing Angle (H x V): 160° x 160°
  • Bit Depth: 14 bit (14~16 bit Customizable)
  • Color Temperature: 6,500K + 500K
  • Brightness Uniformity: 95%
  • Color Uniformity: +0.012 Cx, Cy
  • Video Frame Rate: 60 Hz
  • Max Power Consumption: 600 (W/m2)
  • Avg Power Consumption: 180 (W/m2)
  • Max Heat Generation: 2,047 (BTU/m2)
  • Avg Heat Generation: 614 (BTU/m2)
  • Power Supply: 100~240 V AC
  • Refresh Rate: 3,840 Hz
  • Operating Temp / Humidity: -10~40°C / 10~80% RH
  • Storage Temp / Humidity: -20~60°C / 10~90% RH
  • IP Rating: Front IP30
  • Lifetime: 100,000 Hrs
  • Certification: CE
  • Maintenance: Front Access (Die-cast Aluminum) // Front / Rear Access (Steel)

1.86mm

  • Pixel Configuration: SMD1515
  • Module Resolution: 172 x 86
  • Module Dimension (WxH): 320 x 160 mm
  • Cabinet Dimension (WxHxD): 640 x 480 x 49 / 640 x 640 x 49 / 320 x 480 x 49 mm
  • Cabinet Weight: 6.5 kg / 8.2 kg / 3.8 kg
  • Cabinet Materials: Die-cast Aluminum (typ.) / Steel (Customizable)
  • Brightness (typ.): 600 nits
  • Contrast Ratio: 4,000:1@10lux / 5,000:1@10lux, Flexible Module
  • Visual Viewing Angle (H x V): 160° x 160°
  • Bit Depth: 14 bit (14~16 bit Customizable)
  • Color Temperature: 6,500K + 500K
  • Brightness Uniformity: 95%
  • Color Uniformity: +0.012 Cx, Cy
  • Video Frame Rate: 60 Hz
  • Max Power Consumption: 600 (W/m2)
  • Avg Power Consumption: 180 (W/m2)
  • Max Heat Generation: 2,047 (BTU/m2)
  • Avg Heat Generation: 614 (BTU/m2)
  • Power Supply: 100~240 V AC
  • Refresh Rate: 3,840 Hz
  • Operating Temp / Humidity: -10~40°C / 10~80% RH
  • Storage Temp / Humidity: -20~60°C / 10~90% RH
  • IP Rating: Front IP30
  • Lifetime: 100,000 Hrs
  • Certification: CE
  • Maintenance: Front Access (Die-cast Aluminum) // Front / Rear Access (Steel)

High Variety and Flexibility

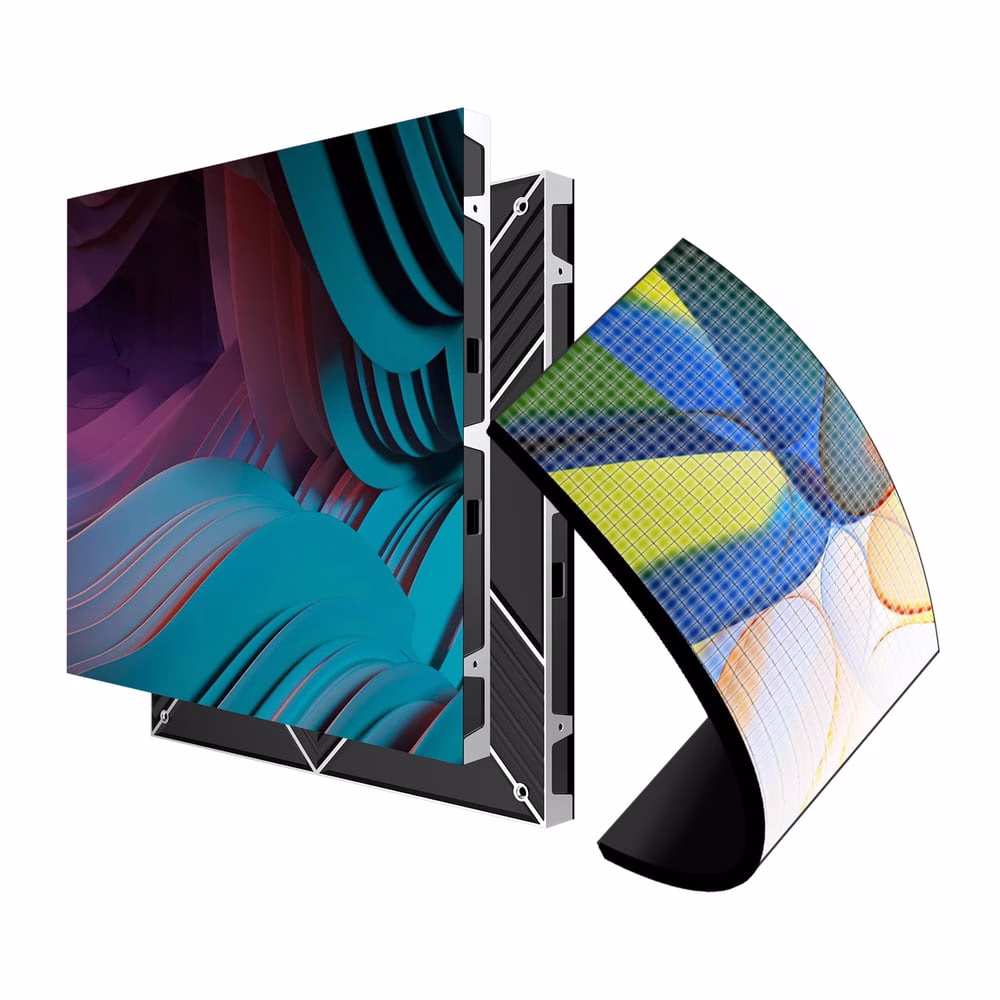

The XIM series offers six pixel pitches and multiple cabinet configurations, delivering unparalleled versatility. These include three die-cast aluminum cabinets and customizable steel cabinets with optional flexible modules.

Lightweight and Creative Design

The 49 mm / 6.5 kg die-cast aluminum cabinet supports hardwired connections, enabling single-person setup and reduced logistics costs. It also supports customized steel cabinets and flexible modules—connected via ribbon cables—to unlock a wide range of creative display possibilities.

GOB (Optional) High Reliability

The display is moisture-proof, dust-proof and anti-static, offering strong assurance of stability and reliability for a bright and clear viewing experience.

Tool-less LED Cabinet Lock

Tool-less LED cabinet lock design enables quick assembly, significantly reducing setup time and labor costs. It reduces installation time and effort while ensuring reliable and consistent fixing for efficient on-site setup.

Full Front Maintenance

The module adopts a fully front-maintenance design, making maintenance fast and convenient, while enabling wall-mount installation to save space.

Wide Viewing Angle

The XIM series delivers ultra-wide viewing angles and ensures identical color accuracy whether viewed horizontally or vertically, making it ideal for use in exhibition display, retail, lecture halls and public spaces.
