XMP 240 – Dante Audio DSP Matrix Processor
Dante Audio DSP Matrix Processor
Key Features
- 24 channels of AEC – acoustic echo cancellation
- Dante audio networking with Dante Domain Manager and AES67 support
- Extensive mix matrix with input and output processing
- FlexInput capability on all inputs for input source selection
- Macros allow the sequencing of commands that can be sent to the local device or external devices via Dante or the LAN port
- Compact half rack size
| Feature | Specification |
|---|---|
| AEC Channels | 24 high-performance AEC |
| Dante / AES67 Routing | 48×48 network audio |
| DSP | FlexInput, automix, delay, ducking, filters |
| Automixing | Up to 8 groups across 48 channels |
| Connectivity | Dante ports, EXP expansion, RS‑232, Ethernet |
| Size & Cooling | 1U half-rack width, convection cooled |
| Power | External 12 VDC or PoE; ~10–14 W consumption |
| Audio Quality | THD <0.01%, SNR ~115 dB, <–90 dB crosstalk |
| Certifications & Warranty | CE, UL, FCC; 3‑yr warranty |

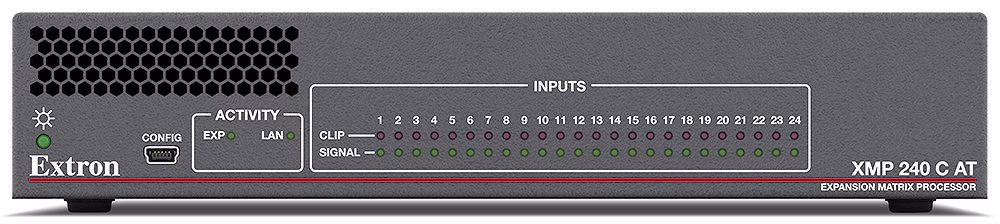

The Extron XMP 240 is a half‑rack, Dante-enabled expansion matrix processor that delivers 24 channels of high-performance Acoustic Echo Cancellation (AEC) and 48 × 48 Dante/AES67 audio networking, all in a compact 1U chassis — tailor-made for high-channel-count conferencing and Dante-centric AV systems.
It offers:
- A powerful mix matrix with full DSP processing,
- FlexInput source routing to map any Dante or EXP input to DSP channels,
- The ability to function standalone or integrated with DMP Plus Series processors for expanded analog I/O and conferencing capabilities.
Ideal for systems with numerous beamforming mic arrays or multiple conference rooms, the XMP 240 scales effectively in Dante-based audio environments
