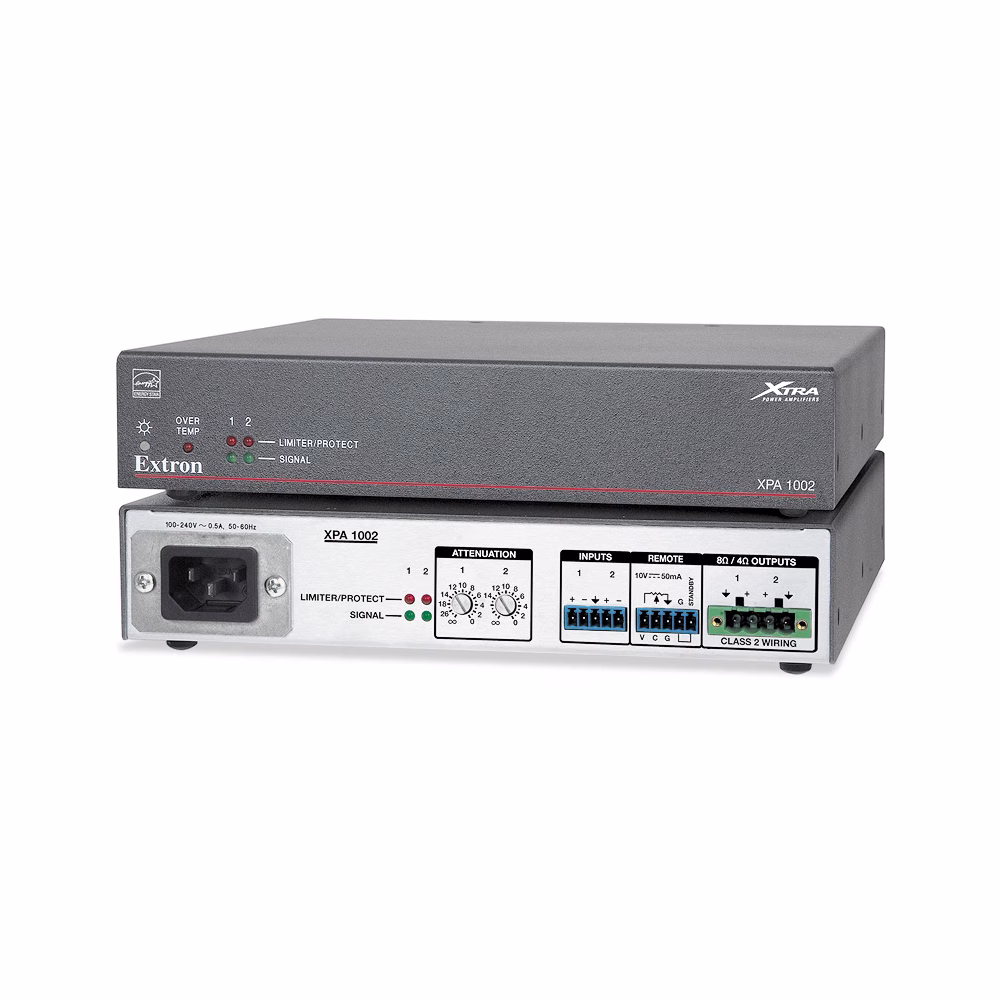

XPA 1002 – Two Channel Low Impedance Amplifier
Two Channel Low Impedance Amplifier
60/100 Watts Per Channel
Key Features
- 2 x 60 watts @ 8 ohms
2 x 100 watts @ 4 ohms
1 x 200 watts @ 8 ohms (bridged) - ENERGY STAR® qualified amplifier
- Professional grade signal-to-noise and THD+N performance
- Extron Patented CDRS™ – Class D Ripple Suppression
- Convection cooled, fanless operation
- Ultra low inrush current – no need for power sequencing
| Feature | XPA 1002 (Low‑impedance) | 70 V / 100 V Variant |
|---|---|---|
| Output Power | 2 × 100 W @ 4 Ω; 2 × 60 W @ 8 Ω; bridged 200 W in 8 Ω | 2 × 100 W RMS per channel |
| Load Impedance | ≥ 4 Ω | ≥ 50 Ω (70 V), ≥ 100 Ω (100 V) |
| Frequency Response | 20 Hz–20 kHz ±1 dB | Same |
| THD+N | ≤ 0.05 % (low‑impedance) | ≤ 0.1 % |
| S/N Ratio | ~105 dB | ~100 dB |
| Damping Factor | >100 @ 8 Ω | >100 @ minimum load |
| High‑Pass Filter | — | 80 Hz, 12 dB/oct selectable |
| Remote Control Port | 3.5 mm captive-screw, 5-pin for analog volume/standby | 3.5 mm captive-screw, 2-pin contact closure |
| Idle / Standby Power | ~5 W / <1 W | ~5–10 W / <1 W |
| Power at 1/8 load | ~30–40 W | ~36–43 W |
| Weight / Dimensions | ~2.5 lbs (1.1 kg); 1.7″ × 8.7″ × 9.5″ | Same |
| Amplifier Design | Class D with CDRS™ | Same |
| Certifications | ENERGY STAR®, UL, CE, FCC, UL‑2043 plenum when used with conduit kit | Same |
| Warranty | 3-year parts/labor (Everlast PSU warranty) | Same |
The Extron XPA 1002 is from Extron’s XTRA™ Series—a dual-channel Class D amplifier featuring patented CDRS™ (Class D Ripple Suppression) technology. It delivers either 100 W RMS per channel into 4 Ω or 60 W into 8 Ω (standard model), with high‑impedance options offering 100 W per channel at 70 V or 100 V. Housed in a half‑rack, 1U convection‑cooled, fanless chassis, the unit conserves rack space and runs quietly. It is ENERGY STAR® certified, featuring ultra-low inrush current, defeatable auto‑standby (activates after ~25 minutes), and fast InstaWake™ recovery from standby (<100 ms) when audio signal is detected
