ZipClip 400 – Mounting Kit for 1/8, 1/4, and 1/2 Rack Width Products
Key Features
- Enables Extron products to be quickly and securely mounted to rack rails, tables, shelves, and lecterns
- New Compatible with Cable Cubby F55 and Cable Cubby F55 Edge to securely mount devices beneath the enclosure
- Wire tie slots allow for proper strain relief and dressing of excess cable
- Supports eighth-rack, quarter-rack, and half-rack width products
- Quick release tab allows for easy installation and removal
- Designed and manufactured by Extron
| ZipClip 400 and ZipCaddy 400 | |||
| Mounting | |||
|---|---|---|---|
| Rack rail mount | Yes, with required hardware | ||
| Furniture mount | Yes, with included hardware | ||
| Enclosure dimensions | |||
| ZipClip 400 | 9.5″ H x 4.6″ W x 0.6″ D (241 mm H x 116 mm W x 15 mm D) | ||
| ZipCaddy 400 | 8.6″ H x 4.4″ W x 0.4″ D (218 mm H x 111 mm W x 10 mm D) | ||
 | |||
| Load bearing | |||
| Vertical mounting | 9.5 lbs (4.3 kg) | ||
| Horizontal mounting | 5.0 lbs (2.27 kg) | ||
| |||
| Enclosure material | High impact plastic | ||
| Product weight | 0.3 lbs (0.1 kg) per each clip and plate pair 2.8 lbs (1.3 kg) per 10-pack | ||
| Product warranty | 3 years parts and labor | ||
| |||

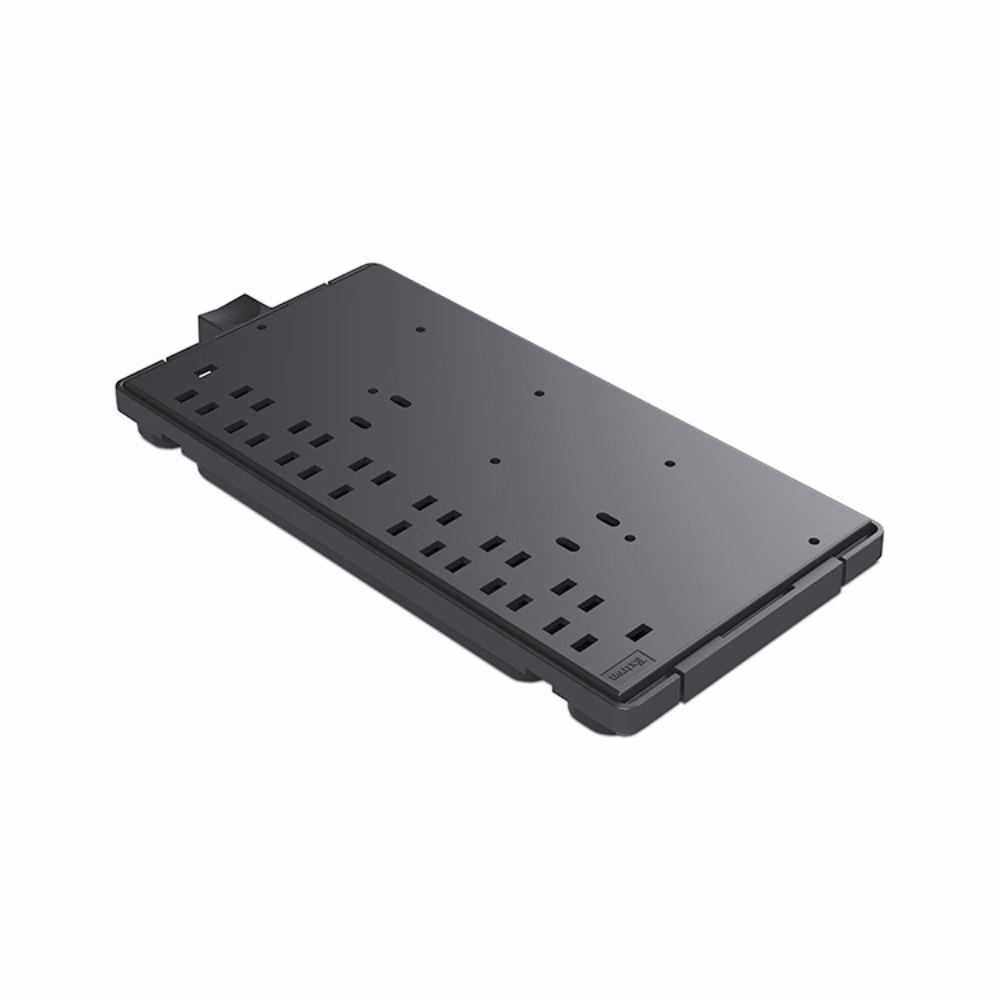

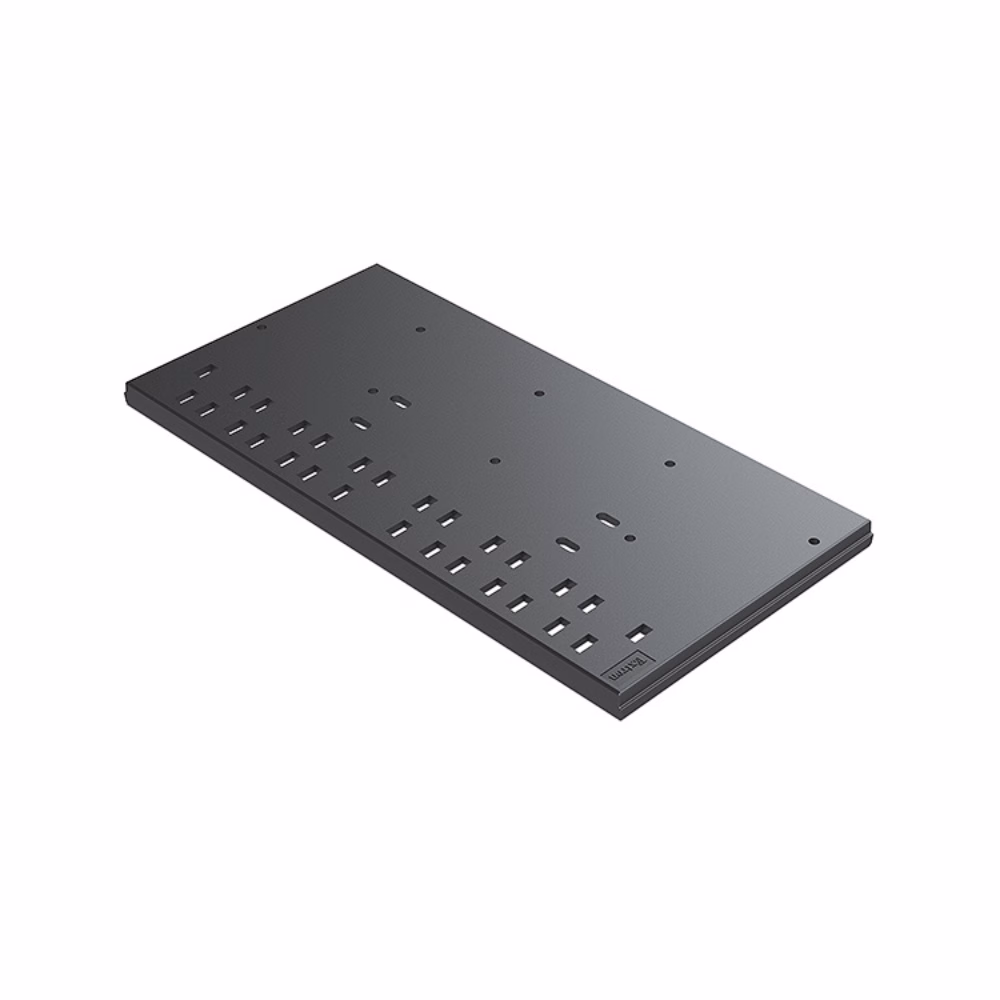

The Extron ZipClip 400 mounting kit enables various rack-width sized Extron products to be quickly and securely mounted to rack rails, tables, shelves, and lecterns. The kit also works well with select 6"-deep products and select, small form factor PCs. This patented two-piece kit includes the ZipClip 400, which mounts easily under a table, on a shelf, or to a rack rail, and the ZipCaddy™ 400. The ZipClip 400 is compatible with Extron Cable Cubby F55 and Cable Cubby F55 Edge cable access enclosures to securely mount products directly beneath the enclosure. The ZipCaddy provides a secure mounting platform for one or two Extron products, depending on size. It mounts easily with a simple “click” to securely lock it into place, and it is removed using the quick-release tab. The kit includes 10 each of the ZipClip 400 and the ZipCaddy 400.
ZipClip® components include multiple wire tie slots for proper strain relief and dressing of excess cable. ZipClip mounting kits are ideal for applications that require a quick and secure method of mounting small form factor Extron products.
Features
- Enables Extron products to be quickly and securely mounted to rack rails, tables, shelves, and lecterns
- New Compatible with Cable Cubby F55 and Cable Cubby F55 Edge to securely mount devices beneath the enclosure
- Wire tie slots allow for proper strain relief and dressing of excess cable
- Supports eighth-rack, quarter-rack, and half-rack width products
- Compatible with select small form factor PCs and third-party AV components
- Ideal for use with PS 1220, PS 1230, and PS 1242 PS Series power supplies
- Supports up to 5 pounds (2.27 kg) horizontal or 9.5 pounds (4.3 kg) vertical total installed weight
- Quick release tab allows for easy installation and removal
- ZipClip 400 kit comes in packs of 10 each of the ZipClip 400 and the ZipCaddy 400
- Designed and manufactured by Extron
