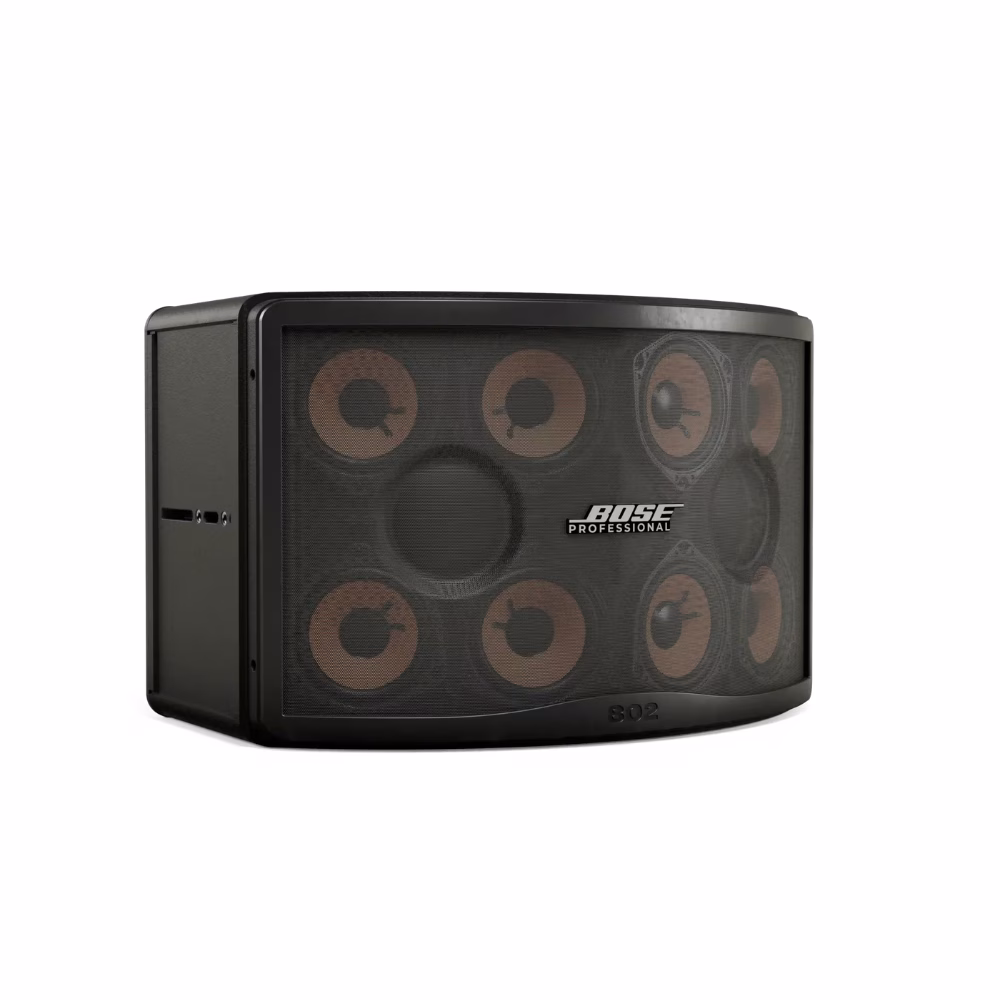

802 Series V installed sound reinforcement loudspeaker
The legend continues. One of the best-selling sound reinforcement loudspeakers of all time returns. The Bose Professional 802 Series V features eight 4.5” full-range drivers that deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency. The proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers, while the 52 Hz low-frequency range can eliminate the need for subwoofers. The rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations, and flexible mounting options allow for easy, secure installations in various configurations. Available in black, 802 Series V is compatible with the 802 U-Bracket and WBP-8 wall-mount adapter. *This product is only sold in specific regions
Technical Specification
PHYSICAL
Colors
Black
Enclosure Material
Mineral-reinforced HDPE
Environmental
Suitable for outdoor or indoor use, IP55 rated
Grille
Perforated steel with powder-coated finish
Suspension / Mounting
(8) M8 threaded inserts
• 2 back
• 2 bottom
• 4 sides
Product Dimensions (H × W × D)
334 mm × 523 mm × 318 mm
(13.1 in × 20.5 in × 12.5 in)
Net Weight
16.7 kg (36.8 lb)
Shipping Weight
19.3 kg (42.5 lb)
PERFORMANCE
Frequency Range (-10 dB)
52 Hz – 15,000 Hz
Coverage (Horizontal)
120°
Coverage (Vertical)
100°
Calculated Maximum SPL @ 1 m
116 dB
Nominal Impedance
8 Ω
Power Handling (Long-term Continuous)
240 W
Power Handling (Peak)
960 W
Sensitivity (SPL / 1 W at 1 m)
92 dB
PRODUCT CODES
802 Series V Outdoor Installed Loudspeaker – Black
893554-0100
INCLUDED IN PACKAGING
(1) 802 Series V Loudspeaker
(1) Installation Guide
- Eight 4.5-inch full-range drivers deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency
- Proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers
- 52 Hz – 15 kHz frequency range provides full-range audio without the need for subwoofers at moderate sound levels
- High 123 dB peak SPL capacity means powerful sound reinforcement in demanding environments
- Rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations
- Flexible mounting options including threaded inserts for easy, secure installations in various configurations
